MediaTek Dimensity 700 vs 820 | Specs | AnTuTu | Features

With the arrival of 2020, the war to dominate the 5G technology sector is growing stronger, so mobile processor manufacturing companies such as MediaTek have not only connected to 5G technology but also more strong than ever. This company gave us two amazing processors, the Dimensity 700 and the Dimensity 820, and today we will compare them in this new MediaTek Dimensity 700 vs 820 comparison!

MediaTek Dimensity 700 vs 820 – All The Differences You Need To Know!

MediaTek Dimensity 700 vs 820 – Specifications (Specs) Sheet Comparison

SoCMediaTek Dimensity 700MediaTek Dimensity 820
Release date November 10, 2020May 18, 2020
Process7nm TSMC
7nm TSMC
CPU2 x Arm Cortex-A76 @ 2.2GHz
6 x Arm Cortex-A55 @ 2GHz
4 x Cortex-A76 @ 2.6 GHz
4 x Cortex-A55 @ 2.0 GHz
GPUArm Mali-G57 MC2 @950MHzArm Mali-G57 MC5 @650MHz
AIAI Accelerator
APU 3.0
Connectivity5G, 4G
DL: 2.77Gbps
UL: 1.2Gbps
Network:
2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA
Specific Functions:
SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 100 MHz bandwidth, 4×4 MIMO, 256QAM NR UL 2CC, 2×2 MIMO, 256QAM VoNR / EPS fallback
Wi-Fi Antenna: 2T2R
Wi-Fi: Wi-Fi 5 (a/b/g/n/ac)
Bluetooth Version: 5.1
Memory12GB LPDDR4X
2133MHz
16GB LPDDR4X
2133MHz
Storage UFS 2.2 UFS 2.2

MediaTek Dimensity 700 vs 820 – Release Date Comparison

About release dates, it is obvious that the Dimensity 700 has a great advantage over the Dimensity 820. This processor was shown to the world a very very short time ago, since it was just a couple of days ago, on November 102020. Having said that, and although the Dimensity 820 was not presented long ago, it does have time hanging around the market, since it was presented at the beginning of the year, on May 18, 2020.

MediaTek Dimensity 700 vs 820 – Process Comparison

Before we start talking about these two processors, it should be noted that they are very similar. Now having that cleared up, let’s get started talking about its internal specs. Regarding its process, both SoCs have the same, and it is a 7nm LPP FinFET process made by TSMC. It is worth remembering that, the lower the number, the better the processor, and with more power will work, so it can be said that these are the best processors that are available in the current market.

Also, and according to the officials, the 7nm process is 28% more efficient than the 8nm process.

Winner: Tie (MediaTek Dimensity 700 and Dimensity 820)

MediaTek Dimensity 700 vs 820 – CPU Comparison

Getting to talk about the CPU inside these processors, both have a dual-cluster, octa-core design CPU, which is distributed as follows (2 + 6) in the MediaTek Dimensity 700:

  • 2x Cortex A76 high-performance cores running at a speed of @2.2GHz
  • 6 x Cortex A55 power-efficient cores running at a speed of @2.0GHz

On the other hand, and although it was mentioned that the MediaTek Dimensity 820 has the same design, it is distributed in a slightly different way (4+4), and it is as follows:

  • 4x Cortex A76 high-performance cores running at a speed of @2.6GHz
  • 4 x Cortex A55 power-efficient cores running at a speed of @2.0GHz

Now, having seen the CPUs that these two processors bring, and while it can be said that this could be a tie, the very small advantage in the number of the high-performance cores in the Dimensity 820 plus their speed gives this processor first place in this category.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – GPU Comparison

Turning to talk about the GPUs that are inside these two powerful processors, the Dimensity 700 features a 2 core Arm Mali-G57 MC2 as the GPU running with a frequency of @950MHz. On the other hand, in terms of GPU performance, the Dimensity 820 uses the Arm Mali-G57 MC5 running with a frequency of @650MHz, a five-core variant of the Mali-G57, which was announced in October.

While the GPU inside the Dimensity 820 runs at a lower speed, the fact that it has three extra cores gives it greater operating power, which allows it to provide more power to the devices it is on.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – AI Comparison

Related to Artificial Intelligence, Dimensity 700 doesn’t have the iconic APU 3.0 as found in Dimensity 1000 series. Instead, in the 700 version, we see an AI accelerator that provides AI capabilities but at a very basic level. With that being said, Dimensity 820 comes with the APU 3.0 (AI Processing Unit) presented by MediaTek that has four cores consisting of three different core types which provide up to 2.4 TOPS of AI performance. Furthermore, the APU HW design is also said to be more efficient and more powerful to enable more accurate AI camera results.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – Benchmark Comparison

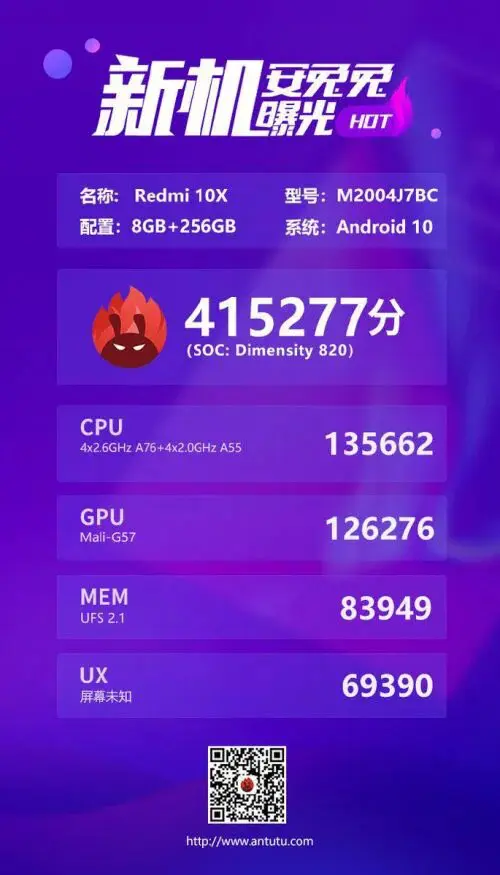

About the scores obtained by these two processors in the Benchmarks, and since the Dimensity 700 is a degraded version of the 720, the MediaTek Dimensity 700 5G AnTuTu (v8) benchmark score is expected to be around 250,000 to 280,000 points. On the other hand, the Dimensity 820 scored a total of 415,277 points.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – Connectivity Comparison

As for connectivity, MediaTek Dimensity 700 like the rest of Dimensity SoC supports 5G networking with SA & NSA modes. The maximum download speed is 2.77 Gbps while the upload speed is 1.2 Gbps. Also, features such as 5G Carrier Aggregation (2CC 5G-CA) and 5G dual SIM dual standby (DSDS) are present along with MediaTek 5G UltraSave. This in fact is the most power-efficient 5G SoC.

On the other hand, the Dimensity 820 does support 5G networking and features global sub-6GHz 5G networks and promises up to 3.5Gbps download speeds and up to 1.25Gbps upload speed. It also supports dual SIM 5G. MediaTek 5G UltraSave technology achieves excellent power efficiency. Sadly, there is no support for mmWave 5G.

Winner: Tie (MediaTek Dimensity 700 and Dimensity 820)

MediaTek Dimensity 700 vs 820 – Camera Comparison

Regarding its cameras, the MediaTek Dimensity 700 supports single camera support up to 64 megapixels and dual-camera support up to 16 megapixels + 16 megapixels. Apart from the sensor, the SoC provides Night Shot Enhancements for better low light results along with basic AI filters including AI-Bokeh, AI-color, and AI-beauty.

That being said, the Dimensity 820 features ImagiQ 5.0 ISP. The single-camera support is 80 megapixels and the dual camera support is up to 32 megapixels +16 megapixels (30fps). In terms of video recording, it can capture a 4K HDR video.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – Memory Comparison

About their memory, both processors support LPDDR4x memory with a maximum frequency of 2133MHz and UFS 2.2 storage type. Also, in the Dimensity 700, you can get 12GB of RAM memory, while in the Dimensity 820 you can get 16GB.

Winner: MediaTek Dimensity 820

MediaTek Dimensity 700 vs 820 – Price Comparison

Finally, to see what is the best option among these processors at the budget level, we have to know the price of the phones they are on. Dimensity 820 is expected to be seen in the Redmi 10X, and although this has not yet been released, it is thought that it will have a price of about 212 USD. On the other hand, and knowing that the Dimensity 700 is just a decreased version of the Dimensity 720, that is inside of phones with prices around the 273 USD, a Dimensity 700 5G phone will range from as low as 180 USD to as high as 250 USD.

Winner: Tie (depending on the price of the phones with Dimensity 700 and the real price that the Redmi 10X will have)

The Verdict

Select MediaTek Dimensity 820 if you want:

  • Better CPU performance
  • Better GPU performance
  • Better AI performance
  • Better Benchmark score
  • Better camera performance
  • Bigger memory

Overall Winner: MediaTek Dimensity 820

I hope you loved this MediaTek Dimensity 700 vs 820 comparison. Which one is your favorite SoC? Let us know in the comments.
