Anker Soundcore Liberty 4 Manual | Step-by-step Pairing

The Anker Soundcore Liberty 4 earbuds have Bluetooth 5.3 with a working range of 10 meters, a 6mm and a 9.2mm coaxial dual dynamic driver, up to 9 hours of battery life + 19 hours using the charging case, the IPX4 sweat and dust-proof certification, and more. Learn how to use these earbuds using this Anker Soundcore Liberty 4 manual!

If you are interested in purchasing these earbuds, you can easily do it using the Soundcore official website. Also, if you want to give the original manual a look, you can do it here.

Anker Soundcore Liberty 4 Specs Sheet

ModelAnker Soundcore Liberty 4
WeightEarbuds: 5.7 grams each
Waterproof/IP ratings  IPX4
Bluetooth version          V5.3
Range/Distance10 meters
Driver6mm and a 9.2mm coaxial dual dynamic
Audio DecodingSBC, AAC
Connectivity Port/Charging CableType-C
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: About 9 hours
Charging case: About 19 hours
Charging Time  Earbuds: About 1 hour
Charging time: About 2 hours
App Support     Yes, Soundcore
Controls/Features         Play or pause music, play the next song, answer, end, or reject a call, ANC, Transparency mode
Accessories       Charging case, user manual, USB cable, ear tips
PriceAbout 150 USD

Anker Soundcore Liberty 4 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • User manual.
  • USB cable.
  • Ear tips.
anker-soundcore-liberty-4-manual-box
Credits: MMORPG.com

Anker Soundcore Liberty 4 | Pairing & Charging Instructions

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, they will turn on automatically.

When a white light starts flashing on the charging case, it means that the earbuds will be ready to pair with any device. If the earbuds don’t enter pairing mode automatically, then place the earbuds into the charging case, and press and hold the button on the charging case for about 3 seconds.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “soundcore Liberty 4”. If a password is needed, type “0000”. After that, a white light will turn on for 1 second, then off for 1 second, and start flashing slowly, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, they will turn on automatically.

When a white light starts flashing on the charging case, it means that the earbuds will be ready to pair with any device. If the earbuds don’t enter pairing mode automatically, then place the earbuds into the charging case, and press and hold the button on the charging case for about 3 seconds.

Step 6: Select “soundcore Liberty 4”. If a password is needed, type “0000”. After that, a white light will turn on for 1 second, then off for 1 second, and start flashing slowly, and the pairing will be done.

Anker-Soundcore-Liberty-4-Manual-1
Credits: Soundcore

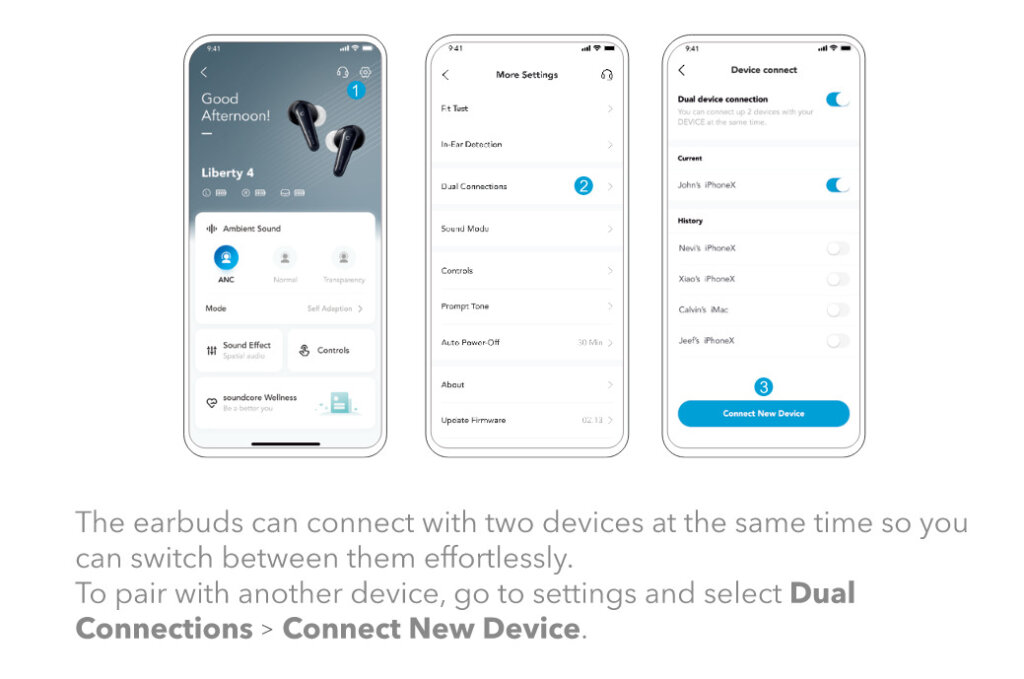

Dual Pairing Connection

Step 1: Open the Soundcore app.

Step 2: Go to Settings.

Step 3: Select “Dual Connections”.

Step 4: Click on “Connect New Device”.

Step 5: Pair to the second device as said in the pairing section above.

Anker-Soundcore-Liberty-4-Manual-2
Credits: Soundcore

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, they will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Anker-Soundcore-Liberty-4-Manual-3
Credits: Soundcore

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds three times.
Anker-Soundcore-Liberty-4-Manual-4
Credits: Soundcore

How to Activate The ANC Mode?

To activate or deactivate the ANC mode in these earbuds, all you have to do is to press the multifunction touch button on any of the earbuds two times.

How to Activate The Transparency Mode?

To activate or deactivate the transparency mode in these earbuds, all you have to do is to press the multifunction touch button on any of the earbuds two times.

Anker-Soundcore-Liberty-4-Manual-5
Credits: Soundcore

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

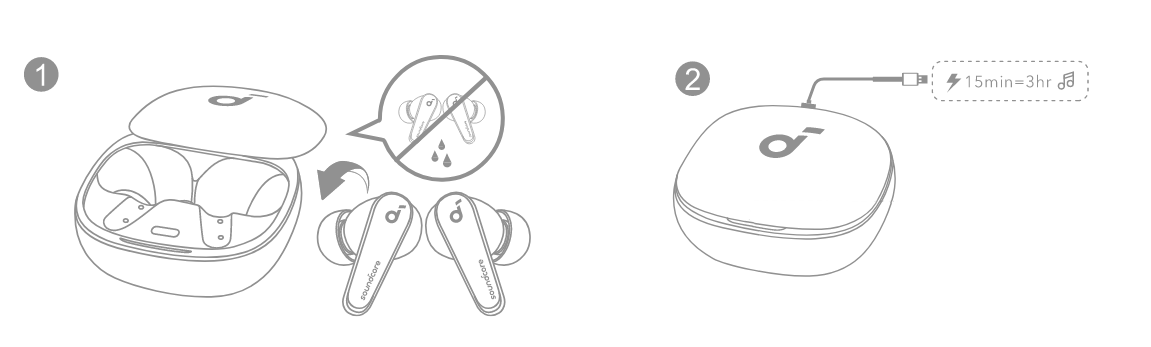

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can be charged using a wireless charger.

Anker-Soundcore-Liberty-4-Manual-6
Credits: Soundcore

How to Reset The Earbuds?

Step 1: Delete all “soundcore Liberty 4” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open.

Step 3: Press and hold the button on the case for about 10 seconds, until a white light flashes three times. After that, the resetting will be done.

Anker-Soundcore-Liberty-4-Manual-7
Credits: Soundcore

What Do The Lights Mean?

Charging case

  • A white light flashing: The earbuds are ready to pair with any device.
  • A white light on for 1 second, off for 1 second, and flashing slowly: The earbuds are now connected.
  • A white light flashes three times: The earbuds are resetting.
  • A red light flashing: The case has less than 20% of battery.
  • A white light flashing quickly: The case has between 20% and 60% of battery.
  • A white light flashing slowly: The case has between 60% and 99% of battery.
  • A white light on for 5 minutes: The case is fully charged.
  • A red light flashes one time, stays on for 5 seconds, and turns off: The earbuds have less than 20% of battery.
  • A white light flashes quickly one time, stays on for 5 seconds, and turns off: The earbuds have between 20% and 60% of battery.
  • A white light flashes slowly one time, stays on for 5 seconds, and turns off: The earbuds have between 60% and 100% of battery.

A Guide To The Anker Soundcore Liberty 4 App

The Anker Soundcore Liberty 4 can be used with an application, called Soundcore. This application is available on the App Store and Play Store for iOS and Android devices.

  • First page: The first page of this application is the home page, where you can see the battery percentage of both earbuds, as well as the Ambient Sound, Tip Fit Test, and equalizer settings and controls.
  • Second page: Not only will you be able to see the controls available on the earbuds, but they can also be activated, deactivated, or changed if desired.
  • Third page: Here, not only can you see the types of sounds that can be used with the earbuds, but you can choose one depending on the tastes of each user.
  • Fourth page: In addition to having information, this application also has the possibility of helping to make sound tests, to make sure that the earbuds work correctly.
Soundcore-Liberty-2-Manual-6

How to Update The Earbud’s Firmware?

Step 1: Open the Soundcore app.

Step 2: Connect the Anker Soundcore Liberty 4 to the app.

Step 3: Go to “More Settings”.

Step 4: Go to “Update Firmware”.

Step 5: Place the earbuds into the charging case and keep its lid open.

Step 6: If an update is available, press “Update”. After the updating ends, take the earbuds out of the charging case and it will be done.

Credits: Soundcore

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Anker-Soundcore-Liberty-4-Manual-10

FAQs

Are the Anker Soundcore Liberty 4 waterproof?

No, the Anker Soundcore Liberty 4 are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Anker Soundcore Liberty 4 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Anker Soundcore Liberty 4 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the Anker Soundcore Liberty 4 connect to PCs and laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Anker Soundcore Liberty 4 noise-canceling?

Yes. These earbuds come with noise-cancellation technology.

How to know when the Anker Soundcore Liberty 4 are fully charged?

When the earbuds are charging, a red and white light flash quickly, stays on, and turns off on the charging case. When fully charged, the light flashes white slowly, stays on for 5 seconds, and turns off.

We hope you now know how to operate the earbuds from the above Anker Soundcore Liberty 4 manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Soundcore company, all your information can be found on its Support Page, where you can find numbers and emails available for several countries!
