Bang & Olufsen Beoplay EQ Manual | Guide 2022

Aliexpress banner

The Bang & Olufsen Beoplay EQ have ANC and Transparency mode, the IPX4 certification, Bluetooth 5.2, SBC, AAC codec, and aptX Adaptive, a 6.8mm Electro-dynamic driver, a battery life of about 7 hours + 20 hours using the charging case, and more. Learn how to use them with this new Bang & Olufsen Beoplay EQ Manual.

Bang & Olufsen Beoplay EQ Manual & Instructions

Bang & Olufsen Beoplay EQ Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, a white light will start flashing, and they will turn on automatically.

When a blue light turns on the earbuds, that means that they will be ready to pair with any device.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Open the Bang & Olufsen app to set up and personalize the earbuds and connect to Bluetooth.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “Beoplay EQ”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case and take the earbuds out. After that, a white light will start flashing, and they will turn on automatically.

When a blue light turns on the earbuds, that means that they will be ready to pair with any device

Step 6: Open the Bang & Olufsen app to set up and personalize the earbuds and connect to Bluetooth.

Step 7: Select “Beoplay EQ”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Bang-&-Olufsen-Beoplay-EQ-Manual-1
Credits: support.bang-olufsen.com

Bang & Olufsen Beoplay EQ Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Bang & Olufsen Beoplay EQ Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a white light will start flashing, and they will turn on automatically.

Turn off: Place the earbuds into the charging case. After that, a white light will start flashing, and the earbuds will turn off automatically.

Bang-&-Olufsen-Beoplay-EQ-Manual-2
Credits: Trusted Reviews

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on the right earbud two times.
  • Turn the volume up: Press two times, and then hold the multifunction touch button on the right earbud.
  • Turn the volume down: Press two times, and then hold the multifunction touch button on the left earbud.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Answer an incoming call: Press the multifunction touch button on the right earbud two times.
  • End a current call: Press the multifunction touch button on the right earbud two times.

Bang & Olufsen Beoplay EQ Manual | How to Change Between ANC and Transparency Modes?

To activate, deactivate and change between ANC and transparency mode in the Bang & Olufsen Beoplay EQ, all you have to do is to press the multifunction touch button on the left earbud two times.

Bang & Olufsen Beoplay EQ Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Bang & Olufsen Beoplay EQ, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Bang & Olufsen Beoplay EQ Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can be charged using a Qi-charger.

Bang-&-Olufsen-Beoplay-EQ-Manual-4
Credits: support.bang-olufsen.com

Bang & Olufsen Beoplay EQ Manual | LED Light Status

Earbuds

  • A white light flashing: The earbuds turn on/off.
  • A blue light on: The earbuds are ready to pair with any device.
  • A blue light flashing: The earbuds are connected.
  • A green light on for 5 seconds with the earbuds inside: The earbuds have a high battery.
  • An amber light on for 5 seconds with the earbuds inside: The earbuds have a medium battery.
  • A red light on: The earbuds have a low battery.
  • A red light flashing: The earbuds have a really low battery.

Charging case

  • A red light on for 5 seconds: The case has a low battery.
  • An amber light on for 5 seconds: The case has a medium battery.
  • A green light on for 5 seconds: The case has a high battery.
  • An amber light flashing while charging: The case is charging.
  • A green light on while charging: The case is fully charged.
  • An amber light flashing with the earbuds inside: The earbuds are charging.
  • A green light on with the earbuds inside: The earbuds are fully charged.

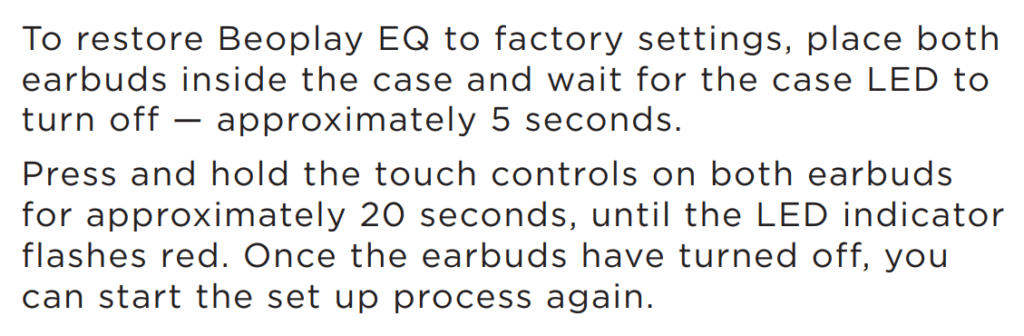

Bang & Olufsen Beoplay EQ Manual | How to Reset?

Step 1: Delete all “Beoplay EQ” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open. Wait for the light on the case to turn off (about 5 seconds).

Step 3: Press and hold the multifunction touch button on both earbuds for about 20 seconds, until a red light starts flashing. After that, resetting will be done.

Bang-&-Olufsen-Beoplay-EQ-Manual-6
Credits: support.bang-olufsen.com

A Guide To Bang & Olufsen Beoplay EQ APP

The Bang & Olufsen Beoplay EQ can be used with an application, called Bang & Olufsen. This application is available for iOS and Android devices.

When entering the application, we are going to find its main page, where at the beginning the connected earbuds are found, as well as the battery percentage of both earbuds and the charging case. Then come different features, such as controlling music and volume, as well as ANC and Transparency mode, and configuring the different listening modes.

Bang-&-Olufsen-Beoplay-EX-Manual-7

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Bang-&-Olufsen-Beoplay-EQ-Manual-8
Credits: Trusted Reviews

FAQs

Are the Bang & Olufsen Beoplay EQ waterproof?

No, the Bang & Olufsen Beoplay EQ are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Bang & Olufsen Beoplay EQ have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Bang & Olufsen Beoplay EQ have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

How to know when the Bang & Olufsen Beoplay EQ are fully charged?

When the earbuds are charging, an amber light is flashing on the charging case. When fully charged, the light turns green.

Can the Bang & Olufsen Beoplay EQ connect to PC and Laptop?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Bang & Olufsen Beoplay EQ noise canceling?

Yes! These earbuds come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Bang & Olufsen Beoplay EQ Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
