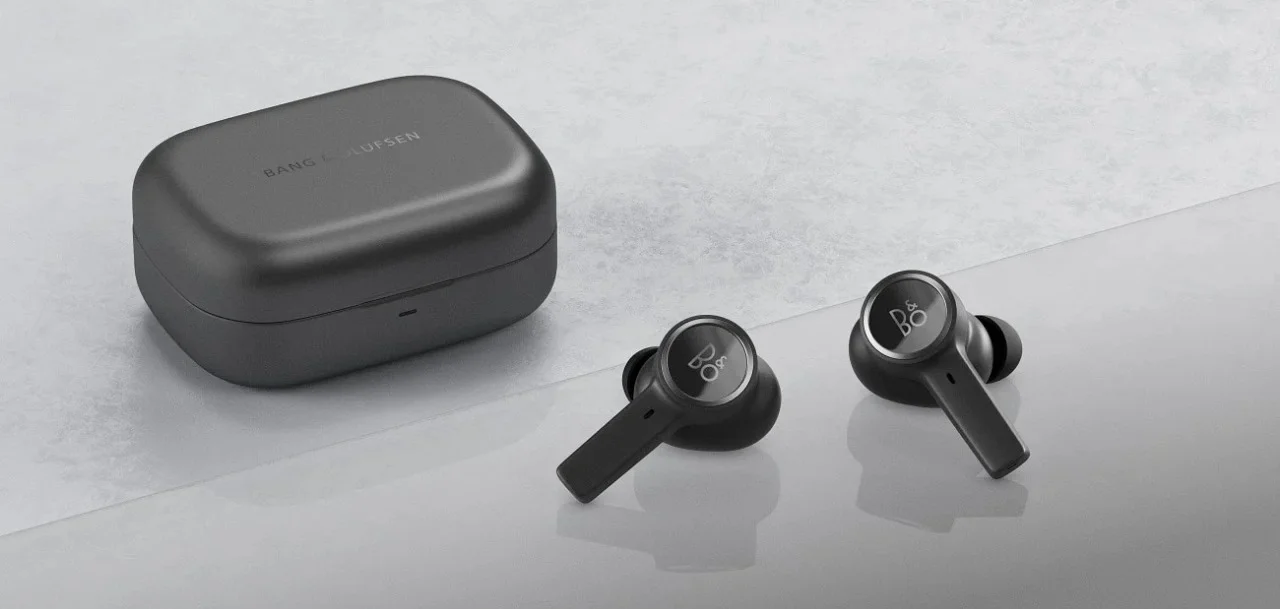

Bang-&-Olufsen-Beoplay-EX-Manual-8

Bang & Olufsen Beoplay EX Manual | Instructions 2022

Aliexpress banner

The Bang & Olufsen Beoplay EX comes with Bluetooth 5.2, SBC and AAC codecs, 6 omnidirectional microphones, aptX Adaptive, a battery life of about 7 hours + 21 hours using the charging case, a 9.2mm driver, the amazing IPX7 waterproof certification, and more. Learn how to use them with this new Bang & Olufsen Beoplay EX Manual.

Bang & Olufsen Beoplay EX Manual & Instructions

Bang & Olufsen Beoplay EX Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

When a blue light starts flashing on the charging case, that means that the earbuds are ready to pair with any device.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Open the Bang & Olufsen app to set up and personalize the earbuds and connect to Bluetooth.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “Beoplay EX”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, the earbuds will turn on automatically.

When a blue light starts flashing on the charging case, that means that the earbuds are ready to pair with any device.

Step 6: Open the Bang & Olufsen app to set up and personalize the earbuds and connect to Bluetooth.

Step 7: Select “Beoplay EX”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Bang-&-Olufsen-Beoplay-EX-Manual-1
Credits: support.bang-olufsen.com

Bang & Olufsen Beoplay EX Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Bang & Olufsen Beoplay EX Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Bang-&-Olufsen-Beoplay-EX-Manual-2

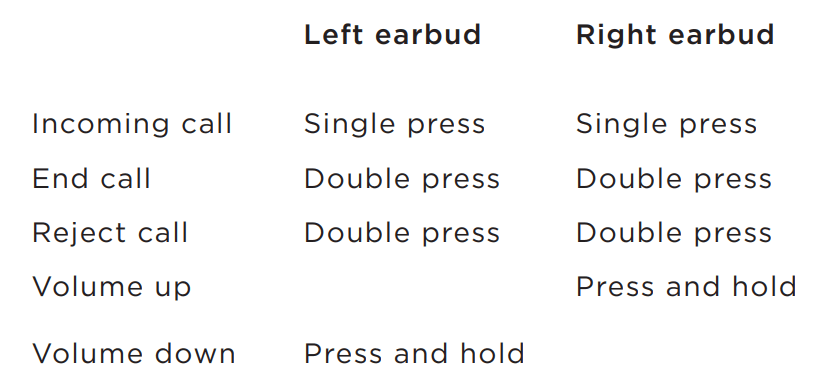

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on the right earbud one time.
  • Turn the volume up: Press and hold the multifunction touch button on the right earbud.
  • Turn the volume down: Press and hold the multifunction touch button on the left earbud.
  • Play the next song: Press the multifunction touch button on the right earbud two times.
  • Play the previous song: Press the multifunction touch button on the left earbud two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds two times.

Bang & Olufsen Beoplay EX Manual | How to Change Between ANC and Transparency Modes?

To activate, deactivate and change between ANC and transparency mode in the Bang & Olufsen Beoplay EX, all you have to do is to press the multifunction touch button on the left earbud one time.

Bang & Olufsen Beoplay EX Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Bang & Olufsen Beoplay EX, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Bang & Olufsen Beoplay EX Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can be charged using a Qi-charger.

Bang-&-Olufsen-Beoplay-EX-Manual-4
Credits: support.bang-olufsen.com

Bang & Olufsen Beoplay EX Manual | LED Light Status

Charging case

  • A blue light flashing: The earbuds are ready to pair with any device.
  • An amber light flashing while charging: The case is charging.
  • A green light on while charging: The case is fully charged.
  • A red light on for 5 seconds: The case has a low battery.
  • An amber light on for 5 seconds: The case has a medium battery.
  • A green light on for 5 seconds: The case has a high battery.
  • A red light flashes 5 times: The earbuds are resetting.
  • An amber light flashing with the earbuds inside: The earbuds are charging.
  • A green light on with the earbuds inside: The earbuds are fully charged.
  • A red light on for 5 seconds with the earbuds inside: The earbuds have a low battery.
  • An amber light on for 5 seconds with the earbuds inside: The earbuds have a medium battery.
  • A green light on for 5 seconds with the earbuds inside: The earbuds have a high battery.
Bang-&-Olufsen-Beoplay-EX-Manual-5

Bang & Olufsen Beoplay EX Manual | How to Reset?

Step 1: Delete all “Beoplay EX” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and close its lid.

Step 3: Open the lid of the charging case.

Step 4: Press and hold the multifunction touch button on one of the earbuds for about 6 seconds, and a blue light will start flashing on the charging case and the earbuds will enter pairing mode.

Step 5: Keep holding the multifunction touch buttons for about 12 seconds more. After that, a red light will flash 5 times on the charging case, and the resetting will be done.

Bang-&-Olufsen-Beoplay-EX-Manual-6
Credits: support.bang-olufsen.com

A Guide To Bang & Olufsen Beoplay EX APP

The Bang & Olufsen Beoplay EX can be used with an application, called Bang & Olufsen. This application is available for iOS and Android devices.

When entering the application, we are going to find its main page, where at the beginning the connected earbuds are found, as well as the battery percentage of both earbuds and the charging case. Then come different features, such as controlling music and volume, as well as ANC and Transparency mode, and configuring the different listening modes.

Bang-&-Olufsen-Beoplay-EX-Manual-7

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Bang-&-Olufsen-Beoplay-EX-Manual-8

FAQs

Are the Bang & Olufsen Beoplay EX waterproof?

Yes, the Bang & Olufsen Beoplay EX are waterproof (IPX6 and up). They have a rating of IPX7, meaning that they not only are against water but are also protected against the effects of immersion.

Do the Bang & Olufsen Beoplay EX have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Bang & Olufsen Beoplay EX have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

How to know when the Bang & Olufsen Beoplay EX re fully charged?

When the earbuds are charging, an amber light is flashing on the charging case. When fully charged, the light turns green.

Can the Bang & Olufsen Beoplay EX connect to PC and Laptop?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Bang & Olufsen Beoplay EX noise canceling?

Yes! These earbuds come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Bang & Olufsen Beoplay EX Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
