The Beyerdynamic Free BYRD earbuds have Bluetooth 5.2, ANC and Transparency Mode, a battery life of about 11 hours, the latest audio codecs such as Qualcomm aptX Adaptive and AAC, 8 pairs of ear tips in various sizes and materials, and much more. Learn how to use them using this manual!

Beyerdynamic Free BYRD – All The Info You Need

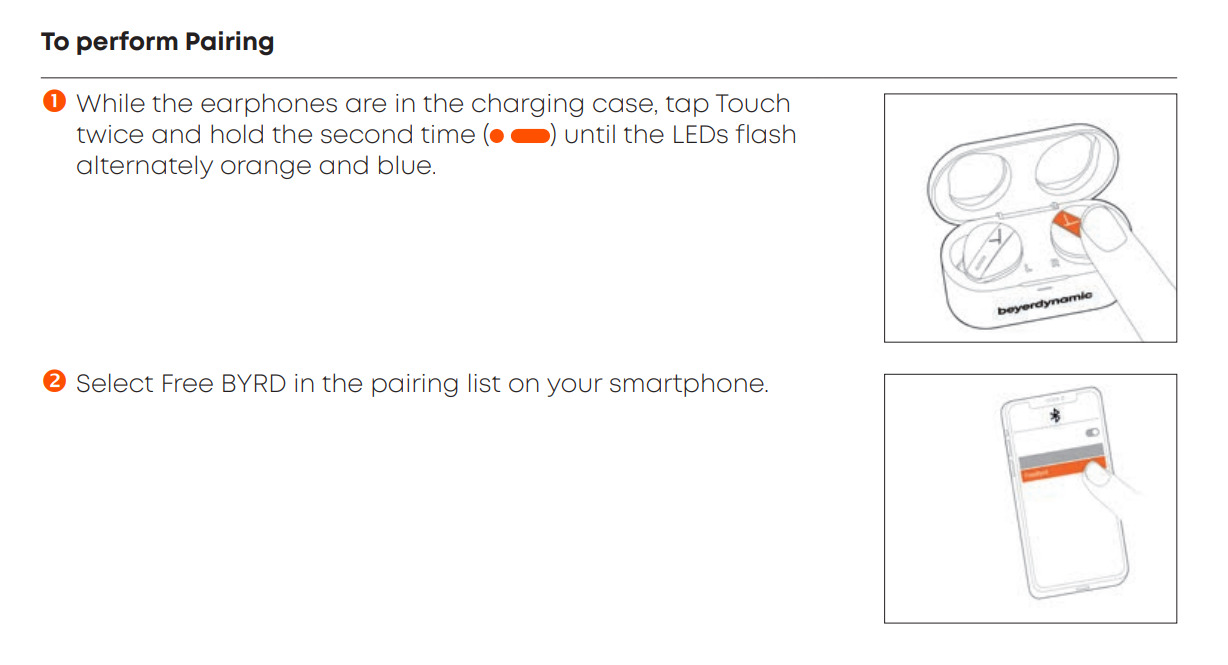

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Press the multifunction touch button on any of the earbuds one time.

Step 3: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds, until an orange and blue light starts flashing.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Go to the device’s Bluetooth settings.

Step 6: Select “Beyerdynamic Free BYRD”. If a password is needed, type “0000”. After that, the pairing will be done.

To PC (Windows)

Step 1: Go to the device’s settings.

Step 2: Go to “Bluetooth and other devices”.

Step 3: Turn on the computer’s Bluetooth.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 6: Press the multifunction touch button on any of the earbuds one time.

Step 7: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds, until an orange and blue light starts flashing.

Step 8: Select “Beyerdynamic Free BYRD”. If a password is needed, type “0000”. After that, the pairing will be done.

Beyerdynamic-Free-BYRD-Manual-1
Credits: Beyerdynamic

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds on the charging case and close its lid. After that, they will turn off automatically.

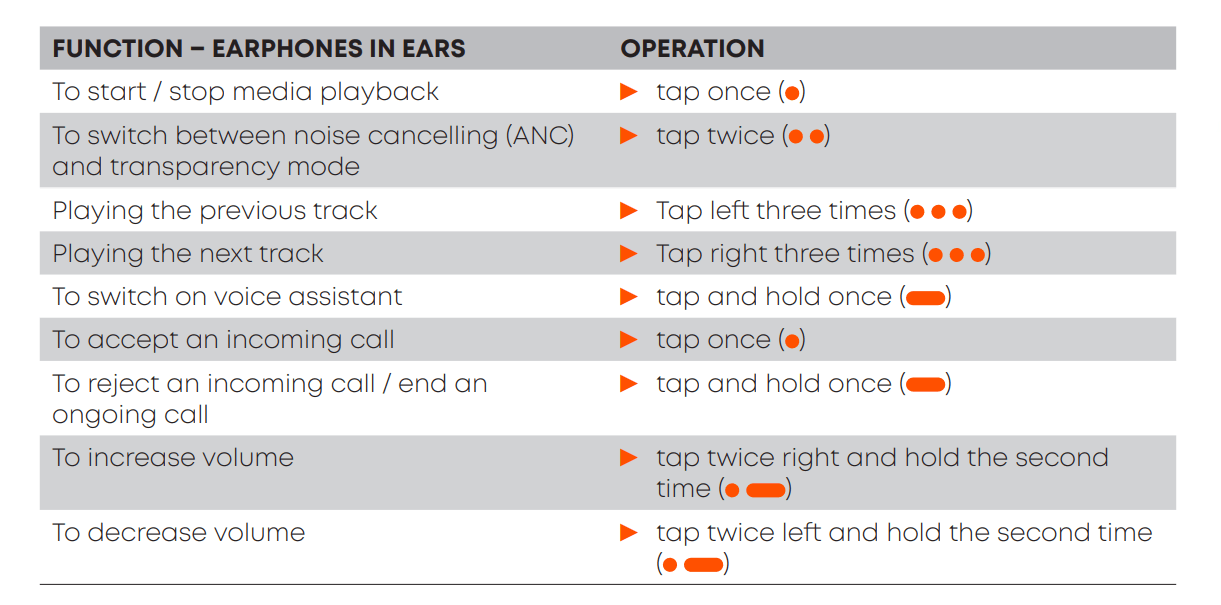

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Turn the volume up: Press two times, and then press and hold the multifunction touch button on the right earbud.
  • Turn the volume down: Press two times, and then press and hold the multifunction touch button on the left earbud.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press and hold the multifunction touch button on any of the earbuds.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds.

How to Activate The Transparency Mode?

To activate or deactivate the transparency mode in these earbuds, all you have to do is to press the multifunction touch button on any of the earbuds two times.

How to Activate The ANC Mode?

To activate or deactivate the ANC mode in these earbuds, all you have to do is to press the multifunction touch button on any of the earbuds two times.

Beyerdynamic-Free-BYRD-Manual-3
Credits: Beyerdynamic

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

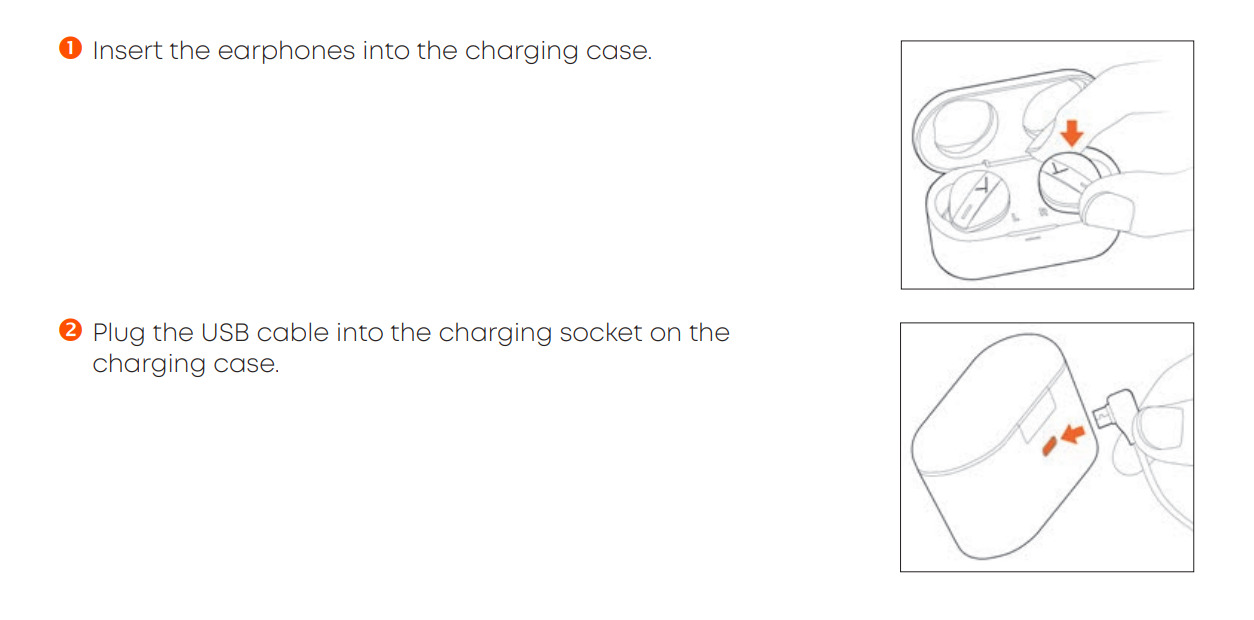

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can be charged using a Qi wireless charger.

Beyerdynamic-Free-BYRD-Manual-4
Credits: Beyerdynamic

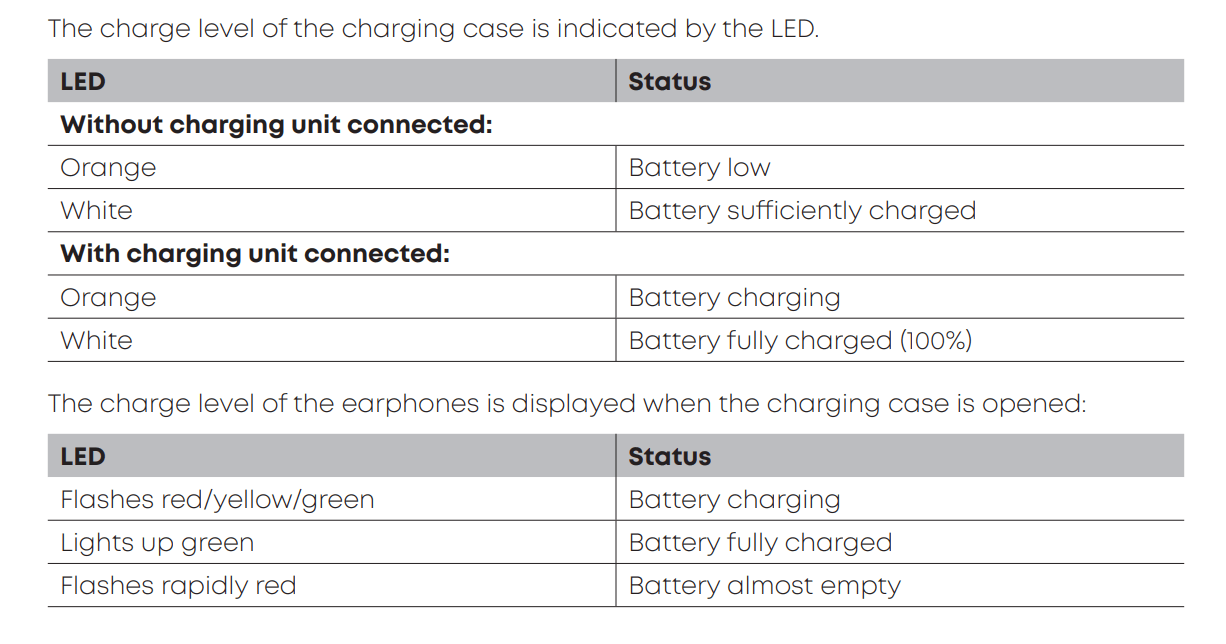

What Do The Lights Mean?

Earbuds

  • An orange and blue light starts flashing: The earbuds are ready to pair with any device
  • A red light flashing while on the charging case: The earbuds have a low battery.
  • A yellow light flashing while on the charging case: The earbuds have a medium battery.
  • A green light flashing while on the charging case: The earbuds are almost charged.
  • A green light on while on the charging case: The earbuds are fully charged.
  • A red light flashing quickly: The earbuds have a really low battery.
  • A yellow light flashes three times: The pairing list was deleted.
  • A red light flashes three times: The earbuds are resetting.
  • A yellow light flashes three times: The pairing list was deleted.
  • A red light flashes three times: The earbuds are resetting.

Charging case

  • An orange light is on: The case has a low battery.
  • A white light on: The case has enough battery.
  • An orange light is on while charging: The case is charging.
  • A white light on while charging: The case is fully charged.
Beyerdynamic-Free-BYRD-Manual-5
Credits: Beyerdynamic

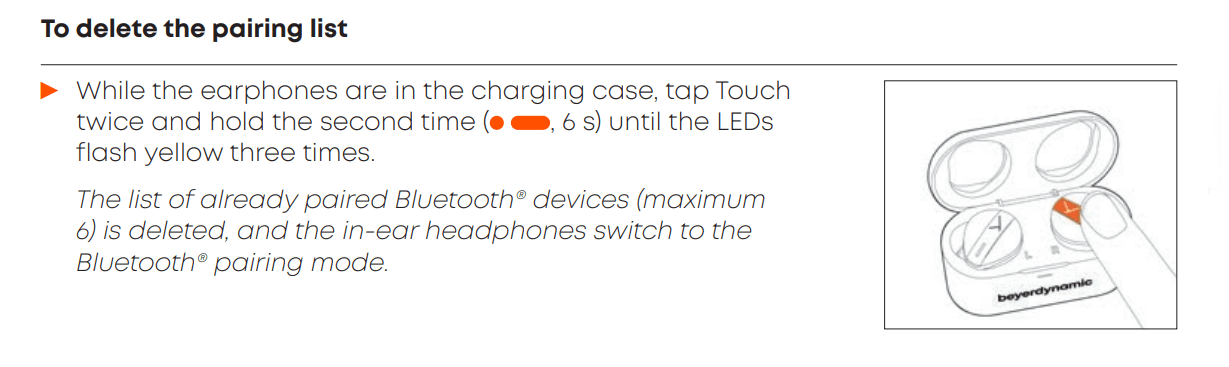

How to Delete The Pairing List?

Step 1: Open the lid of the charging case and keep the earbuds in their place.

Step 2: Press the multifunction touch button on any of the earbuds two times.

Step 3: Press and hold the multifunction touch button on any of the earbuds for about 6 seconds, until a yellow light flashes three times. After that, the pairing list will be deleted.

Beyerdynamic-Free-BYRD-Manual-6
Credits: Beyerdynamic

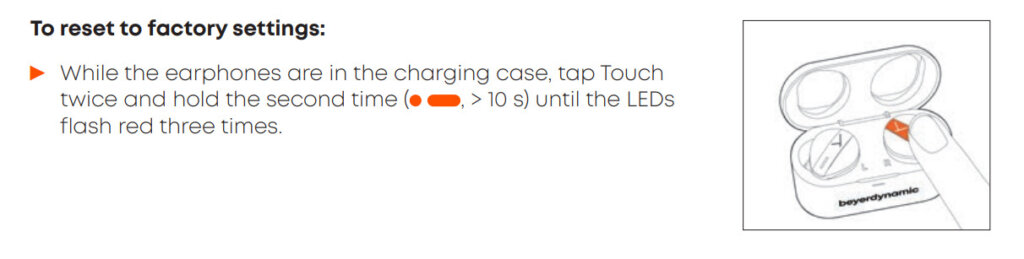

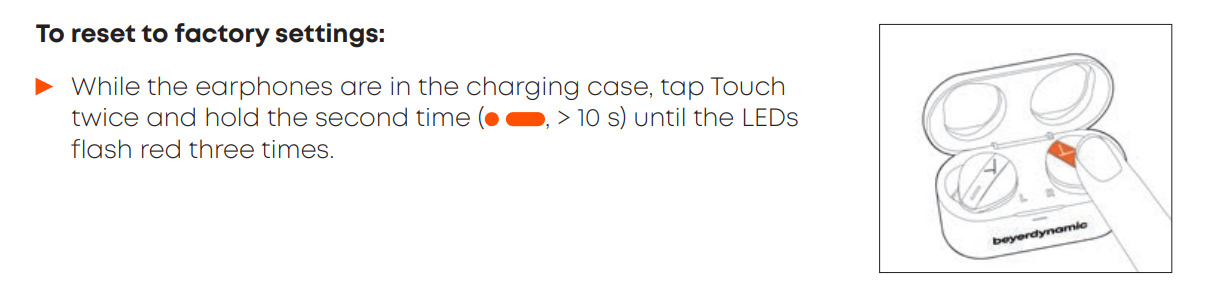

How to Reset The Earbuds?

Step 1: Go to the device’s configuration.

Step 2: Go to Bluetooth.

Step 3: Select the “Beyerdynamic Free BYRD”.

Step 4: Delete all pairing records.

Step 5: Open the lid of the charging case and keep the earbuds in their place.

Step 6: Press the multifunction touch button on any of the earbuds two times.

Step 7: Press and hold the multifunction touch button on any of the earbuds for about 10 seconds, until a red light flashes three times. After that, the resetting will be done.

Beyerdynamic-Free-BYRD-Manual-7
Credits: Beyerdynamic

A Guide To Beyerdynamic Free BYRD APP

The Beyerdynamic Free BYRD can be used with an application, called MIY App. This application is available for iOS and Android devices. Through it, the user will be able to see information about the earbuds, as well as all the internal characteristics that it has, in addition to being able to change and update them.

  • Beyerdynamic logo page: This is the first part of the app, and it is the place where the user will get all the information about the company, as well as its different products. Also, there are various questions and answers in case there is a problem.
  • Headphone logo page: Being the second page of the app, here you can see the battery percentage of the connected earbuds, as well as you can configure the sound profile depending on personal tastes, thanks to the equalizer.
  • Hand logo page: This is the last page of the app, and it is where the different controls available on the earbuds are located and can be configured.
Beyerdynamic-Free-BYRD-Manual-8

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Beyerdynamic-Free-BYRD-Manual-9
Credits: Review Geek

FAQs

Are the Beyerdynamic Free BYRD waterproof?

No, the Beyerdynamic Free BYRD are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Beyerdynamic Free BYRD have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Beyerdynamic Free BYRD have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

How to know when the Beyerdynamic Free BYRD are fully charged?

When the earbuds are charging, some lights are on the charging case. When fully charged, said lights turns green.

Can the Beyerdynamic Free BYRD connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Beyerdynamic Free BYRD noise-canceling?

Yes! These earbuds come with noise-cancellation technology.

We hope you now know how to operate the earphone from the above Beyerdynamic Free BYRD manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
