boAt Airdopes 163 Manual | Step-by-step Pairing Guide

The boAt Airdopes 163 earbuds come with specs such as 6 hours of battery life on a single charge, fast-charging support, 13mm drivers in each earbud, the IPX5 sweat and dust-proof certification, Bluetooth 5.0 with HFP, HSP, A2DP, and AVRCP support, and much more. Learn how to use these earbuds using this boAt Airdopes 163 manual!

If you are interested in purchasing these earbuds, you can easily do it using the boAt official website. Also, in case you are interested in giving the original manual a look, you can do it here.

boAt Airdopes 163 Specs Sheet

ModelboAt Airdopes 163
WeightEarbuds: Around 5 grams each
Waterproof/IP ratings  IPX5
Bluetooth version          V5.1
Range/Distance10 meters
Connectivity Port/Charging CableType-C
Driver  13mm
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: Around 6 hours
Charging case: Around 14 hours
Charging Time  Earbuds: Around 35 minutes
Charging case: Around 1.5 hours
App Support     No
Controls/Features         Play and pause a song, play the next and previous song, answer, end, and reject a call, voice assistant
Accessories       Charging case, USB cable, user manual, warranty card, catalogue, sticker, FAQ card, ear tips
PriceAround 30 USD

boAt Airdopes 163 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • USB cable.
  • User manual.
  • Warranty card.
  • Catalogue.
  • Sticker.
  • FAQ card.
  • Ear tips.

boAt Airdopes 163 Manual | How To Use These Earbuds?

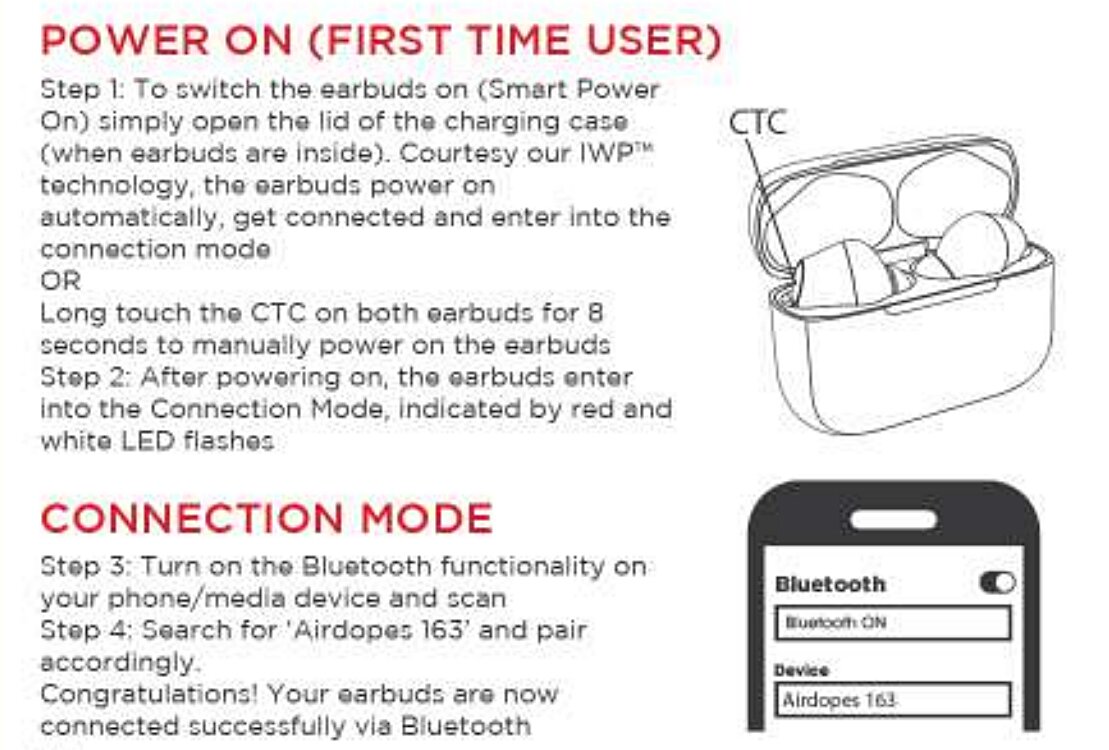

How To Pair The Earbuds? – Dual Mode

To Android And iOS Devices

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

A red and white light will start flashing, and the earbuds will be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Airdopes 163 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

A red and white light will start flashing, and the earbuds will be ready to pair with any device.

Step 7: Select the Airdopes 163 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

boAt-Airdopes-163-Manual-2

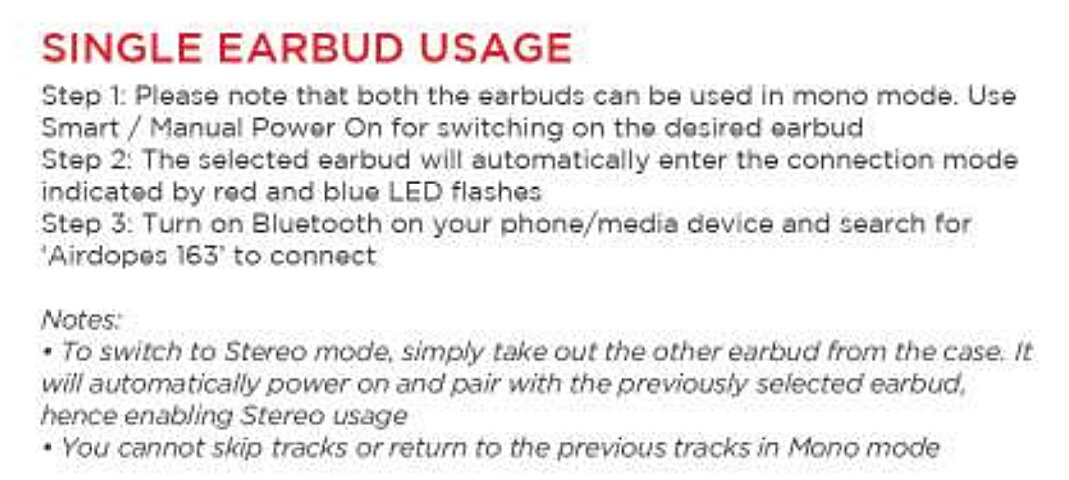

How To Pair The Earbuds? – Single Mode

Step 1: Open the lid of the charging case and take the selected earbud out. After that, it will turn on.

A red and blue light will start flashing, meaning that the earbud is on pairing mode.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Airdopes 163 earbud. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

NOTE: To switch to Stereo mode, simply take out the other earbud from the case. It will automatically power on and pair with the previously selected earbud, hence enabling Stereo usage. Also, you can’t skip or return to the previous song in single mode.

boAt-Airdopes-163-Manual-3

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

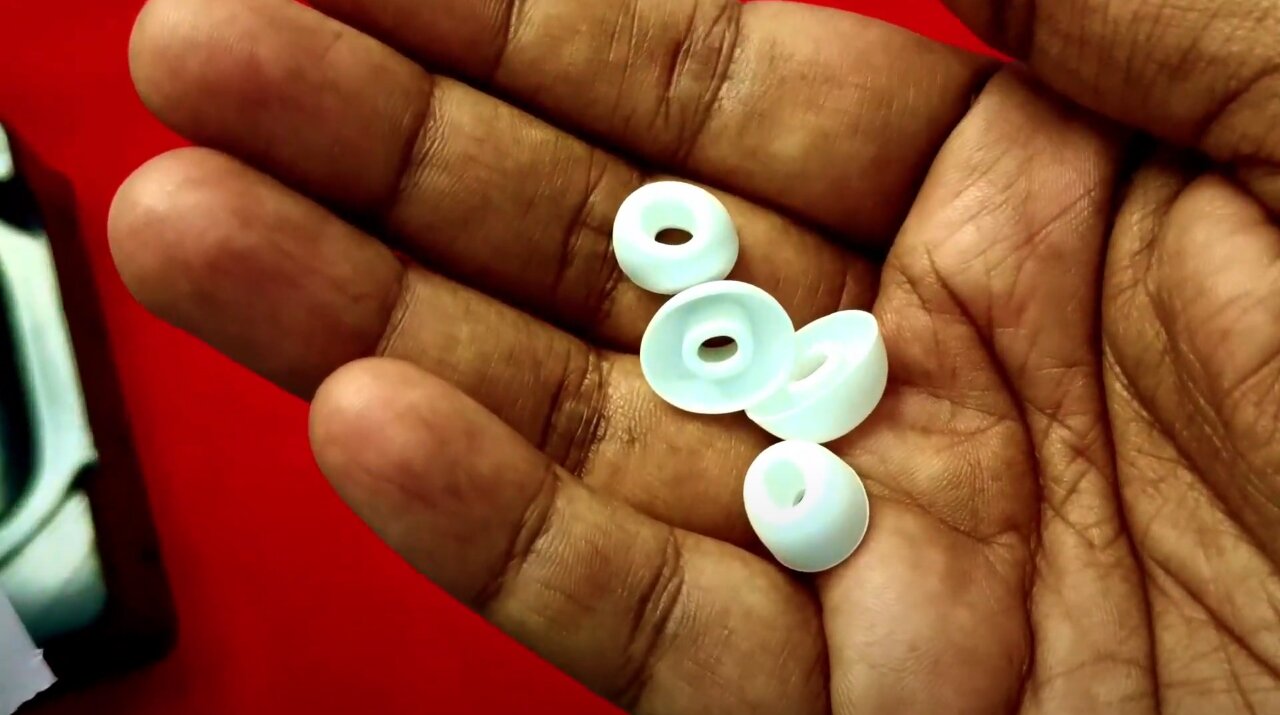

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Manually: Press the capacitive touch control on both earbuds for 8 seconds. After that, the earbuds will turn on.

Turn Off

Automatically: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Manually: Press the capacitive touch control on both earbuds for 5 seconds. After that, the earbuds will turn off.

How To Control These Earbuds?

NOTE: The capacitive touch control is placed on the top outside part of the body of the earbuds.

  • Play or pause a song: Press the capacitive touch control on any of the earbuds one time.
  • Play the next song: While listening to music, press the capacitive touch control on the right earbud two times.
  • Play the previous song: While listening to music, press the capacitive touch control on the left earbud two times.
  • Answer an incoming call: Press the capacitive touch control on any of the earbuds one time.
  • End a current call: Press the capacitive touch control on any of the earbuds two times.
  • Reject an incoming call: Press the capacitive touch control on any of the earbuds two times.
  • Activate the voice assistant: Press and hold the capacitive touch control on any of the earbuds for about 3 seconds.

Volume cannot be controlled via earbuds and can only be adjusted using the connected phone/media device.

NOTE: You can’t skip or return to the previous song in single mode.

boAt-Airdopes-163-Manual-5

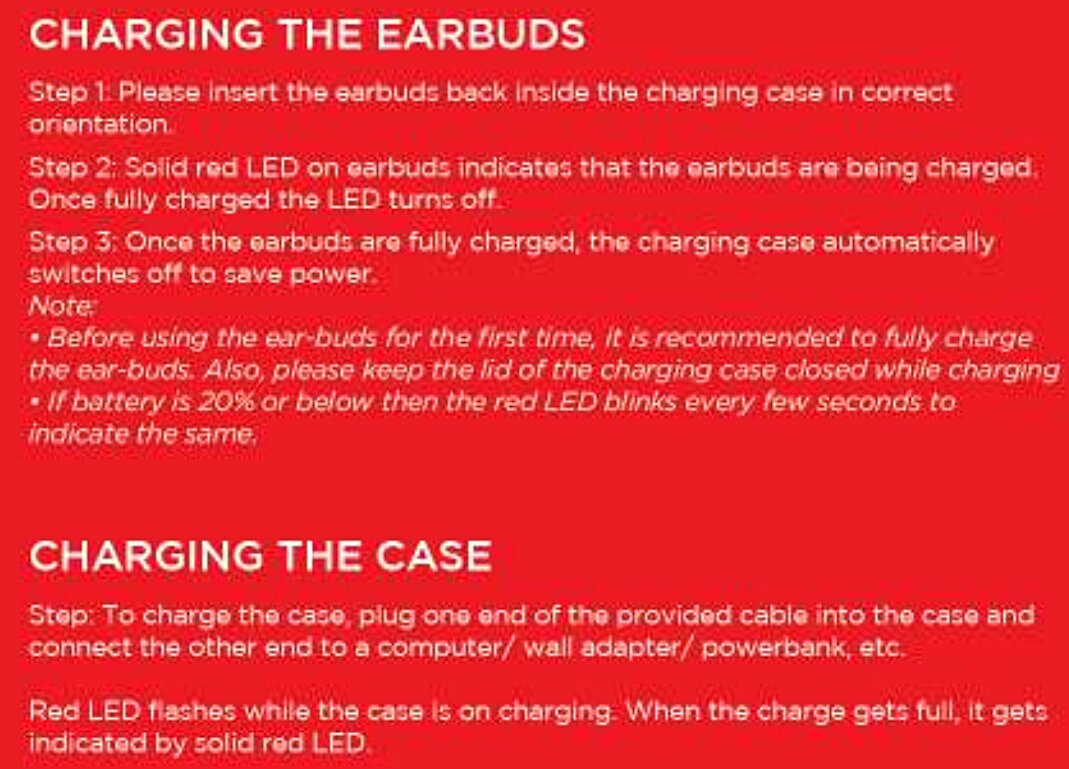

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close its lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

  • A red and white light flashing: The earbuds will be ready to pair with any device (dual mode).
  • A red and blue light flashing: The earbud is ready to pair with any device (single mode).
  • A red light flashing while on the charging case: The earbuds are charging.
  • No light on while on the charging case: The earbuds are fully charged.
  • A red light flashes every few seconds: The earbuds have 20% of battery or less.

Charging Case

  • A red light flashing while charging: The case is charging.
  • The red light stays on while charging: The case is fully charged.
boAt-Airdopes-163-Manual-6

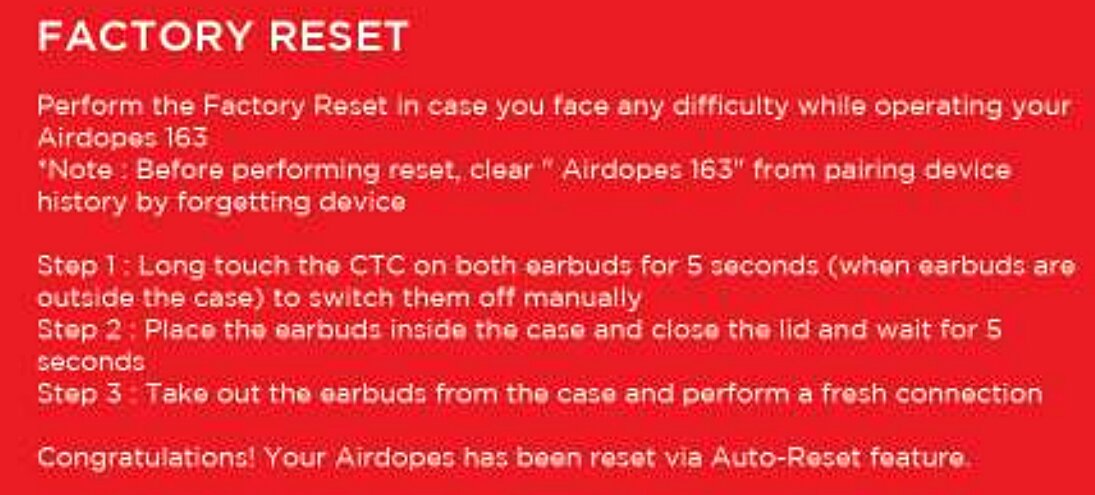

How To Reset And Re-Pair These Earbuds?

NOTE: To ensure a good result, make sure that the earbuds are fully charged.

Primary Reset (Auto Reset)

Perform this reset method in case you face any difficulty while using the earbuds.

Step 1: Go to the device’s settings.

Step 2: Delete the Airdopes 163 earbuds from the devices’ Bluetooth list.

Step 3: Turn off Bluetooth on the device.

Step 4: Take the earbuds out of the case.

Step 5: Press and hold the capacitive touch control on both earbuds for about 5 seconds. The earbuds will turn off.

Step 6: Place the earbuds into the charging case and close the lid for 5 seconds.

This will reset the earbuds.

Step 7: Turn on Bluetooth on the device.

Step 8: Pair the earbuds as showed in the pairing section.

boAt-Airdopes-163-Manual-7

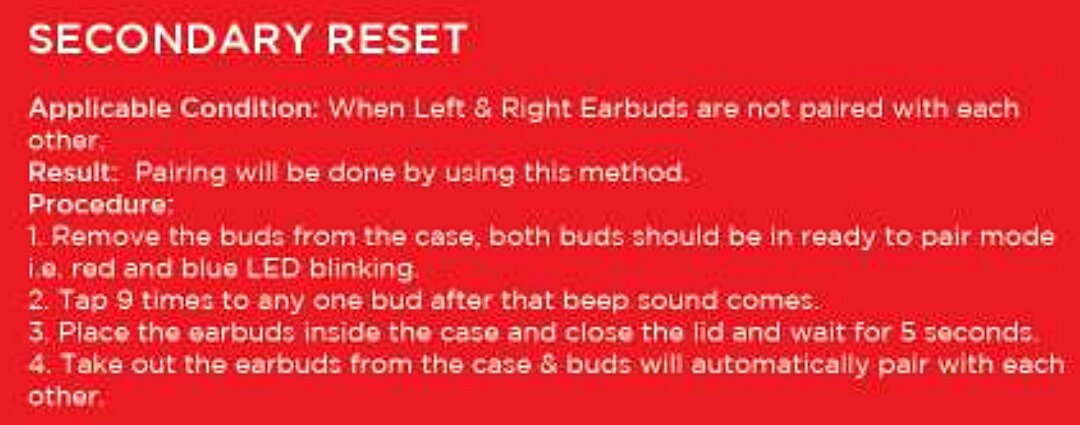

Secondary Reset

Preform this reset method when the left and right earbuds are not paired with each other.

Step 1: Go to the device’s settings.

Step 2: Delete the Airdopes 163 earbuds from the devices’ Bluetooth list.

Step 3: Turn off Bluetooth on the device.

Step 4: Take the earbuds out of the case.

Step 5: Press the capacitive touch control on any of the earbuds 9 times.

Step 6: Place the earbuds into the charging case and close the lid for 5 seconds.

Step 7: Open the lid of the charging case and take the earbuds out. They will automatically pair with each other.

Step 8: Turn on Bluetooth on the device.

Step 9: Pair the earbuds as showed in the pairing section.

boAt-Airdopes-163-Manual-7-1

Do These Earbuds Have An App?

Sadly, these earbuds don’t come with a specialized app or app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

boAt-Airdopes-163-Manual-8

FAQs

Are the boAt Airdopes 163 waterproof?

No, these earbuds are not waterproof (IPX6 and up). They have a rating of IPX5, which means they’re protected against some water projected from a nozzle.

Do the boAt Airdopes 163 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the boAt Airdopes 163 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the boAt Airdopes 163 connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the boAt Airdopes 163 noise-canceling?

No, these earbuds don’t come with noise-cancellation technology.

How to know when the boAt Airdopes 163 are fully charged?

When the earbuds are charging, a light is on. When fully charged, the light turns off.

We hope you now know how to operate the earbuds from the above boAt Airdopes 163 manual! Want to know anything about the earphones? Do not hesitate to ask in the
