boAt Airdopes 171 Manual | All You Have To Know!

The boAt Airdopes 171 earbuds come with specs such as Bluetooth 5.0 with a working range of 10 meters, a total battery life of 13 hours using the charging case, support for the SBC and AAC audio codecs, a 380mAh battery on the charging case and a 43mAh battery in each earbud, 6mm drivers and built-in microphones, and much more. Learn how to use these earbuds using this boAt Airdopes 171 manual!

If you are interested in purchasing these earbuds, you can easily do it using the boAt official website. Also, in case you are interested in giving the original manual a look, you can do it here.

boAt Airdopes 171 Specs Sheet

ModelboAt Airdopes 171
WeightEarbuds and charging case: Around 50 grams
Waterproof/IP ratings  IPX4
Bluetooth version          V5.0
Range/Distance10 meters
Connectivity Port/Charging CableType-C
Audio Decoding               SBC, AAC
Driver  6mm
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: Around 3 hours
Charging case: About 10 hours
Charging Time  Earbuds: Around 1.5 hours
Charging case: About 2 hours
App Support     No
Controls/Features         Play and pause a song, play the next and previous song, answer, end, and reject a call, three way calling, crystal mode
Accessories       Charging case, USB cable, user manual, warranty card, catalogue, ear tips
PriceAround 70 USD

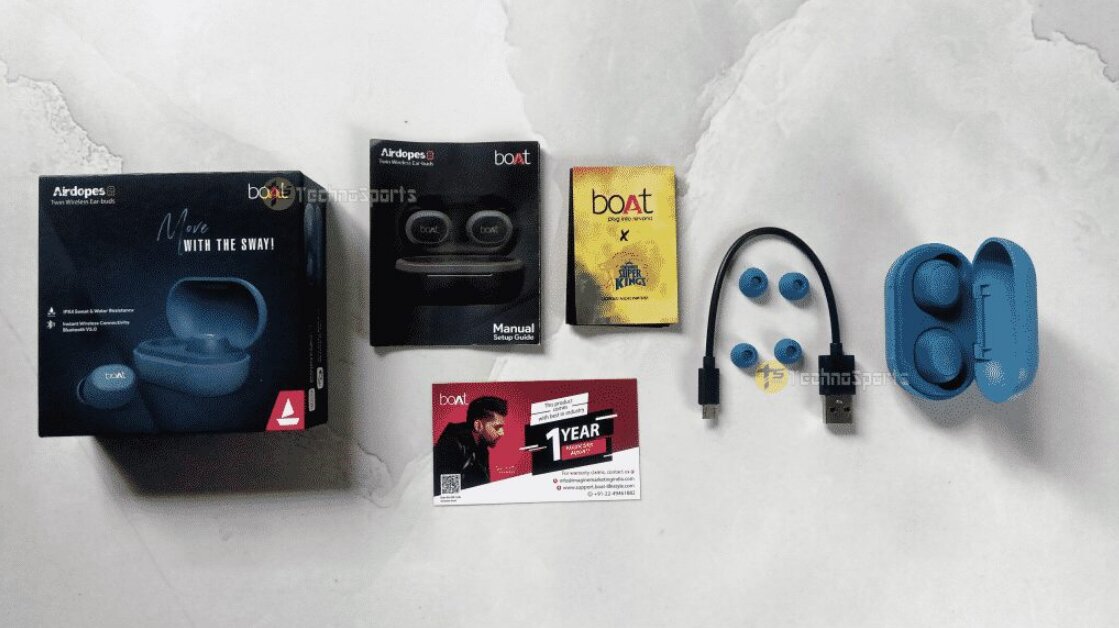

boAt Airdopes 171 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • USB cable.
  • User manual.
  • Warranty card.
  • Catalogue.
  • Ear tips.

boAt Airdopes 171 Manual | Step-by-step Pairing Guide

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Manually: Press the multifunction touch button on both earbuds for 3 seconds. After that, a green light will be on for 1 second, and the earbuds will turn on.

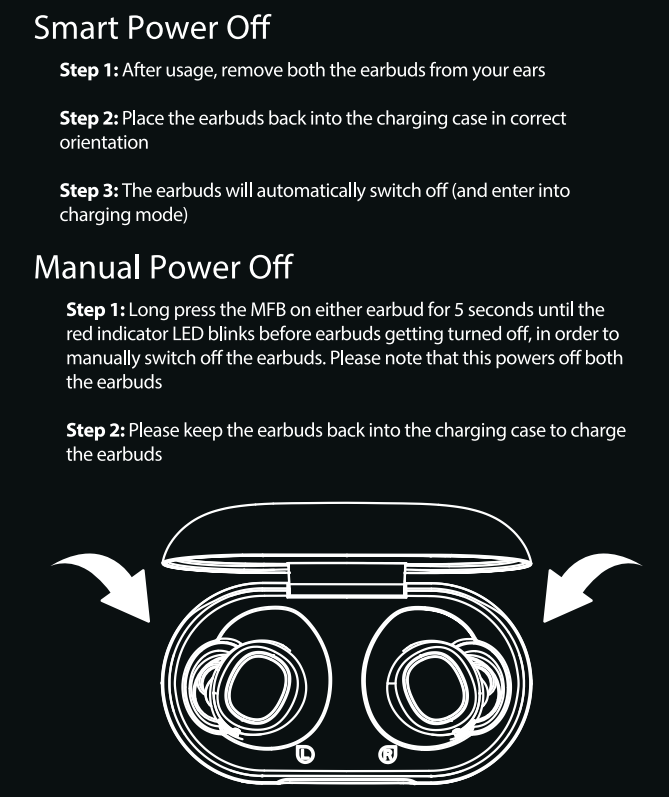

Turn Off

Automatically: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Manually: Press the multifunction touch button on both earbuds for 5 seconds. After that, a red light will start flashing, and the earbuds will turn off.

boAt-Airdopes-171-Manual-2

How To Pair The Earbuds? – Dual Mode

To Android And iOS Devices

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Airdopes 171 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will be ready to pair with any device.

Step 7: Select the Airdopes 171 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

boAt-Airdopes-171-Manual-3

How To Pair The Earbuds? – Single Mode

Step 1: Open the lid of the charging case and take the selected earbud out. After that, it will turn on.

The earbud will be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Airdopes 171 earbud. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

NOTE: To switch to Stereo mode, simply take out the other earbud from the case. It will automatically power on and pair with the previously selected earbud, hence enabling Stereo (dual) usage. Also, you can’t skip or return to the previous song in single mode.

boAt-Airdopes-171-Manual-4

How To Control These Earbuds?

NOTE: The multifunction touch button is placed on the top part of the body of the earbuds.

  • Play or pause a song: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: While listening to music, press the multifunction touch button on the right earbud two times.
  • Play the previous song: While listening to music, press the multifunction touch button on the left earbud two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Three-way calling: Press the multifunction touch button on any of the earbuds two times.
  • Activate the Crystal mode: Press the multifunction touch button on the right earbud three times.

Volume cannot be controlled via earbuds and can only be adjusted using the connected phone/media device.

boAt-Airdopes-171-Manual-5

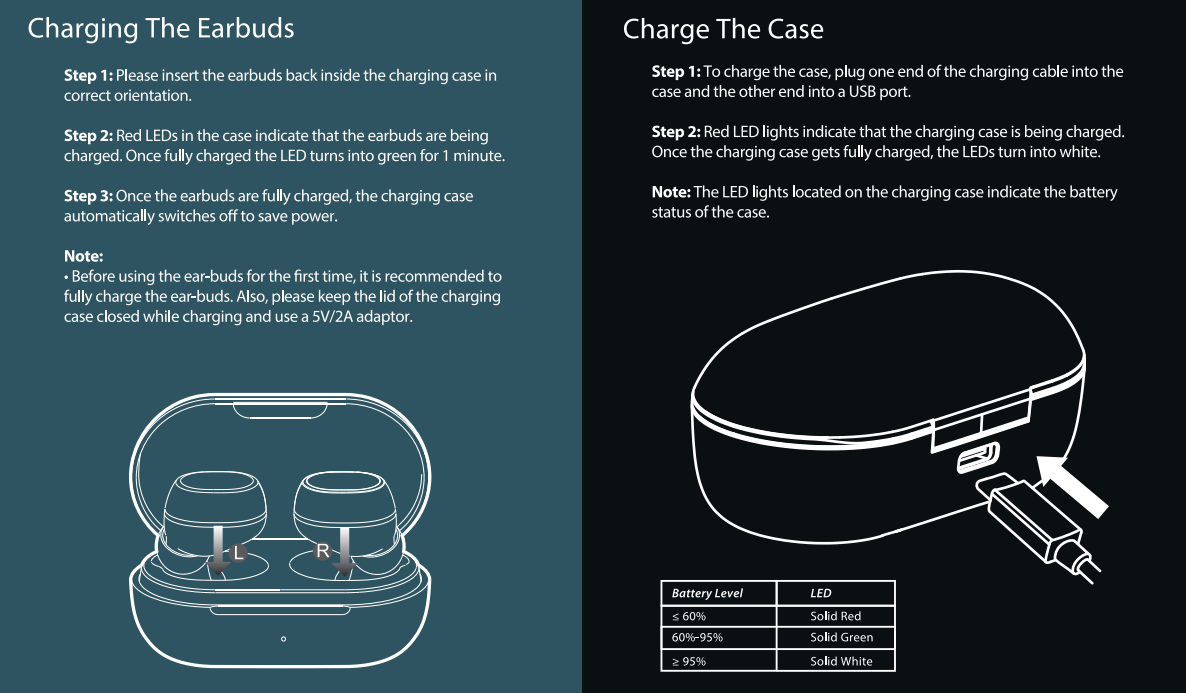

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

  • A green light on for 1 second: The earbuds turn on.
  • A red light starts flashing: The earbuds turn off.
  • A red and green light flashes three times while resetting: The earbuds are resetting.

Charging Case

  • A red light on with the earbuds inside: The earbuds are charging.
  • A green light on with the earbuds inside: The earbuds are fully charged.
  • Red lights on while charging: The case is charging.
  • White lights on while charging: The case is fully charged.
  • A red light on: The case has less than 60% of battery.
  • A green light on: The case has between 60% and 95% of battery.
  • A white light on: The case has more than 95% of battery.
boAt-Airdopes-171-Manual-6

How To Reset And Re-Pair These Earbuds?

NOTE: To ensure a good result, make sure that the earbuds are fully charged.

Step 1: Go to the device’s settings.

Step 2: Delete the Airdopes 171 earbuds from the devices’ Bluetooth list.

Step 3: Turn off Bluetooth on the device.

Step 4: Place both earbuds into the charging case and keep the lid open. They will turn off.

Step 5: Press and hold the multifunction touch button on both earbuds for about 10 seconds, or until a red and green light flashes three times.

This will reset the earbuds.

Step 6: Close the lid of the charging case.

Step 7: Turn on Bluetooth on the device.

Step 8: Search for a new device.

Step 9: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will be ready to pair with any device.

Step 10: Select the Airdopes 171 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

boAt-Airdopes-171-Manual-7

Do These Earbuds Have An App?

Sadly, these earbuds don’t come with a specialized app or app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

boAt-Airdopes-171-Manual-8

FAQs

Are the boAt Airdopes 171 waterproof?

No, these earbuds are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the boAt Airdopes 171 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the boAt Airdopes 171 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the boAt Airdopes 171 connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the boAt Airdopes 171 noise-canceling?

No, these earbuds don’t come with noise-cancellation technology.

How to know when the boAt Airdopes 171 are fully charged?

When the earbuds are charging, a red light is on the case. When fully charged, the light turns green.

We hope you now know how to operate the earbuds from the above boAt Airdopes 171 manual. Want to know anything about the earphones? Do not hesitate to ask in the comment section below.
