Boya BY-AP1 Manual | Step-by-step, In-depth Guide 2021

The Boya BY-AP1 comes with the IPX4 certification, AVRCP, HFP, HSP, SBC, AAC technology, 6 hours listening on a full charge, Bluetooth 5.0, a Qualcomm chipset, and much more. Learn how to use them with this new Boya BY-AP1 Manual.

Boya BY-AP1 Manual | Everything You Need To Know!

Boya BY-AP1 Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Take the earbuds out of the charging case. They will turn on and pair to each other automatically. After that, a blue light will flash every 0.5 seconds and the earbuds will be ready to pair.

Step 2: Turn on the Bluetooth on the desired device.

Step 3: Go to the Bluetooth settings.

Step 4: Select “BY-AP1”. If a password is needed, type “0000”.

Step 5: After that, a blue light will flash on both earbuds every 14 seconds and the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Take the earbuds out of the charging case. They will turn on and pair to each other automatically. After that, a blue light will flash every 0.5 seconds and the earbuds will be ready to pair.

Step 7: Select “BY-AP1”. If a password is needed, type “0000”.

Step 8: After that, a blue light will flash on both earbuds every 14 seconds and the pairing will be done.

Boya-BY-AP1-Manual-2
Credits: Scarbir

Boya BY-AP1 Manual | How To Wear?

Step 1: Choose the ear tips that fit your ears the best.

Step 2: Identify the left and right earbuds.

Step 3: Insert the earbuds into the canal of the ears. Turn them around and make sure to find the most comfortable position.

Boya BY-AP1 Manual | How to Activate Mono Mode?

Step 1: Turn on either left or right earbud by pressing the touch panel on both earbuds for 2.5 seconds, until a blue light flashes every 0.5 seconds.

Step 2: Turn on the Bluetooth on the desired device.

Step 3: Go to the Bluetooth settings.

Step 4: Select “BY-AP1”. If a password is needed, type “0000”.

Step 5: After that, a blue light will flash on both earbuds every 14 seconds and the pairing will be done.

Boya BY-AP1 Manual | How to Turn On And Off?

Automatically

Turn on: Take the earbuds out of the charging case. They will automatically turn on.

Turn off: Place the earbuds into the charging case. They will automatically turn off.

Manually

Turn on: Long press the touch panel on both earbuds for 2.5 seconds.

Turn off: Long press the touch panel on both earbuds for 8 seconds.

Boya-BY-AP1-Manual-1

How to Control? / How to Operate? – Instructions

  • Play and pause music: Tap the touch panel on any of the earbuds twice.
  • Turn the volume up: Long press the touch panel on the right earbud for 1.5 seconds.
  • Turn the volume down: Long press the touch panel on the left earbud for 1.5 seconds.
  • Play the next song: Tap the touch panel on the right earbud three times.
  • Play the previous song: Tap the touch panel on the left earbud three times.
  • Answer an incoming call: Tap the touch panel on any of the earbuds once.
  • End a call: Tap the touch panel on any of the earbuds once.
  • Reject an incoming call: Long press the touch panel on any of the earbuds for 1.5 seconds.
  • Activate the Voice Assistant: Tap the touch panel on any of the earbuds four times.

Boya BY-AP1 Manual | How to Reset?

Step 1: Long press the touch panel on both earbuds for 12s under off state. The earbuds prompt “Power On”, “Pairing”, “DuDuDuDu” will sound in turn, and a red light on the earbuds will turn on steady for 2.5 seconds and then turn off. This indicates that the earbuds were successfully restored to the factory setting.

Step 2: Place both earbuds back into the charging case, and close the lid.

Step 3: Take the earbuds out after a couple of seconds, so the earbuds will turn on, automatically pair into the binaural mode, and re-search for pairing.

Boya-BY-AP1-Manual-3
Credits: Scarbir

Boya BY-AP1 Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is plug a 5V USB Type-C cable into the port on the charging case. It will start charging automatically.

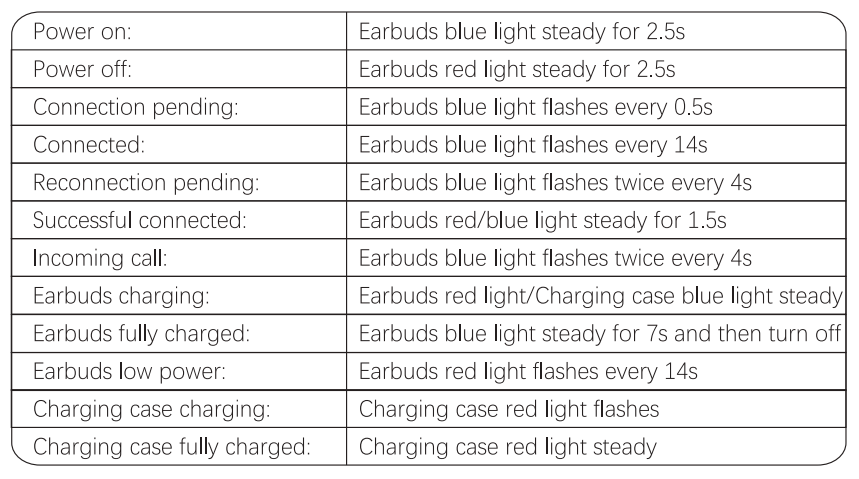

Boya BY-AP1 Manual | LED Light Status

Earbuds

  • Blue light on for 2.5 seconds: Earbuds on.
  • Red light on for 2.5 seconds: Earbuds off.
  • Blue light flashing every 0.5 seconds: Connection pending.
  • Blue light flashing every 14 seconds: Earbuds connected.
  • Blue light flashing twice every 4 seconds: Reconnection pending.
  • Red/blue light on for 1.5 seconds: Successful connected.
  • Blue light flashing twice every 4 seconds: Incoming call.
  • Red light on: Earbuds charging.
  • Blue light on for 7 seconds and then turns off: Earbuds fully charged.
  • Red light flashing every 14 seconds: Low battery.

Charging case

  • Blue light on: Earbuds charging.
  • Red light flashing: Case charging.
  • Red light on: Case fully charged.
Boya-BY-AP1-Manual-4

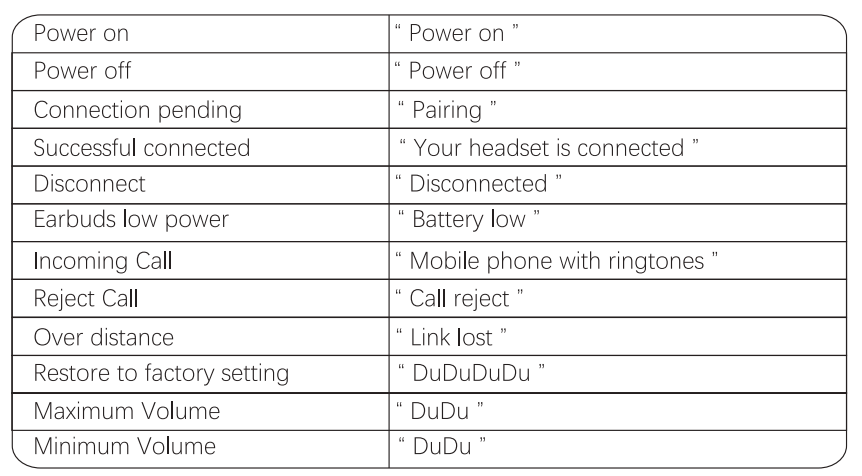

Boya BY-AP1 Manual | Voice Prompts

  • “Power on”: Earbuds on.
  • “Power off”: Earbuds off.
  • “Pairing”: Connection pending.
  • “Your headset is connected”: Successful connection.
  • “Disconnected”: Earbuds disconnected.
  • “Battery low”: Earbuds low battery.
  • “Mobile phone with ringtones”: Incoming call.
  • “Call reject”: Call rejected.
  • “Link lost”: Over distance.
  • “DuDuDuDu”: Restore to factory setting.
  • “DuDu”: Maximum volume.
  • “DuDu”: Minimum volume.
Boya-BY-AP1-Manual-5

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory reset the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory reset the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

Boya BY-AP1 earbuds not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Boya-BY-AP1-Manual-6
Credits: Scarbir

FAQs

Are the Boya BY-AP1 waterproof?

The Boya BY-AP1 have the IPX4 certification, which means they’re dustproof and protected against dust and splashes.

Does Boya BY-AP1 have a microphone?

Yes, the Boya BY-AP1 have an integrated microphone.

Do Boya BY-AP1 have low latency/gaming mode?

No, the Boya BY-AP1 don’t have low latency/gaming mode.

How to know when Boya BY-AP1 are fully charged?

The Boya BY-AP1 charge in about 90 minutes, so after that time, the earbuds should be fully charged.

Can Boya BY-AP1 connect to PC and Laptop?

Yes, the Boya BY-AP1 can connect to PCs, laptops and tablets.

We hope you now know how to operate the earphone from the above Boya BY-AP1 Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Boya company, all your information can be found on its Contact Us Page, where you can find numbers and emails available for several countries!
