Dyplay BQC35 ANC Manual | Instructions & Troubleshooting 2022

Aliexpress banner

The Dyplay BQC35 ANC have Hi-Fi stereo sound quality, the SBC and AAC codecs, Active Noise Cancellation, 10mm dynamic drivers, Bluetooth 5.0, a battery life of about 8 hours, the IPX5 certification, and more. Learn how to use them with this new Dyplay BQC35 ANC Manual.

Dyplay BQC35 ANC Manual | Everything You Need To Know!

Dyplay BQC35 ANC Manual | How to Pair / Connect?

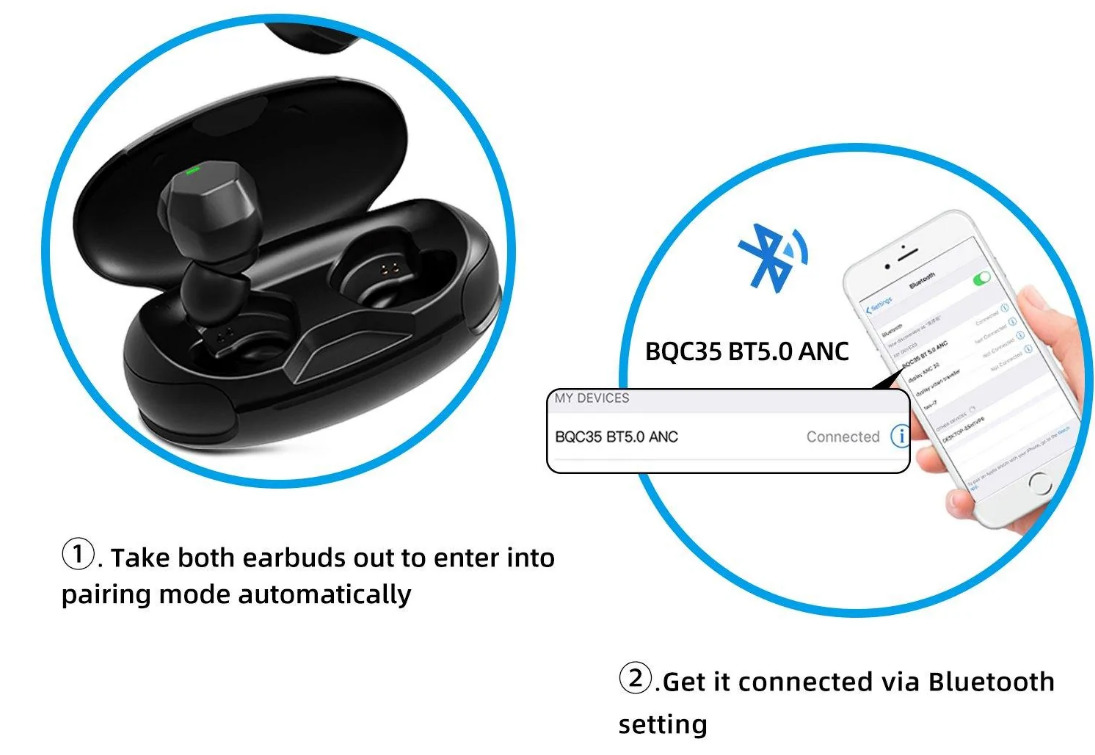

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

Step 2: Turn on the Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “BQC35 BT5.0 ANC”. If a password is needed, type “0000”.

Step 5: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

Step 7: Select “BQC35 BT5.0 ANC”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Dyplay-BQC35-ANC-Manual-1

Dyplay BQC35 ANC Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Dyplay BQC35 ANC Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

Turn off: Place the earbuds into the charging case. After that, a white light will turn on, and the earbuds will turn off automatically.

Dyplay-BQC35-ANC-Manual-2

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press and hold the multifunction touch button on the right earbud.
  • Play the previous song: Press and hold the multifunction touch button on the left earbud.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds.
  • Activate the voice assistant: Press the multifunction touch button on the right earbud two times.

Dyplay BQC35 ANC Manual | How to Activate ANC Mode?

To activate or deactivate the ANC mode in the Dyplay BQC35 ANC, all you have to do is to press the multifunction touch button on the left earbud two times.

Dyplay-BQC35-ANC-Manual-3

Dyplay BQC35 ANC Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Dyplay BQC35 ANC, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Dyplay BQC35 ANC Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is plug a 5V USB Type-C cable into the port on the charging case. It will start charging automatically.

Dyplay-BQC35-ANC-Manual-4
Credits: Scarbir

Dyplay BQC35 ANC Manual | LED Light Status

Earbuds

  • A green light turns on: The earbuds turn on.

Charging case

  • One light is on: The case has a low battery.
  • Two lights are on: The case has a medium battery.
  • Three lights are on: The case has almost all battery.
  • All lights are on: The case is fully charged.

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds as said in the pairing section above.

Dyplay-BQC35-ANC-Manual-5
Credits: Scarbir

FAQs

Are Dyplay BQC35 ANC waterproof?

No, the Dyplay BQC35 ANC are not waterproof (IPX6 and up). They have a rating of IPX5, which means they’re protected against some water projected from a nozzle.

Does Dyplay BQC35 ANC have a microphone?

Yes, the Dyplay BQC35 ANC have integrated microphones.

Do Dyplay BQC35 ANC have low latency/gaming mode?

No! The Dyplay BQC35 ANC don’t have a low latency/gaming mode.

Can Dyplay BQC35 ANC connect to PC and Laptop?

Yes, the Dyplay BQC35 ANC can connect to PCs, laptops, and tablets.

Are Dyplay BQC35 ANC noise canceling?

Yes! These earbuds come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Dyplay BQC35 ANC Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
