EarFun Free 2S Manual | All You Need To Know

The EarFun Free 2S come with specs such as the amazing IPX7 waterproof certification, about 7 hours of battery life + 23 using the charging case, Bluetooth 5.2 with support for the A2DP, AVRCP, HFP and HSP profiles, and much more. Learn how to use these earbuds using this manual!

EarFun Free 2S Manual | Guide For The Earbuds

How to Pair The Earbuds?

To Android And iOS Devices

Step 1: Open the lid of the charging case. After that, a blue light will flash for about 1 second, and the earbuds will turn on automatically.

When a blue light starts flashing on the earbuds, it means that they will be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select the “EarFun Free 2S” earbuds. If a password is needed, type “0000”. After that, the flashing blue light will turn off, and the pairing will be done.

To PC (Windows)

Step 1: Unlock the desired device.

Step 2: Turn on Bluetooth on the device.

Step 3: Go to the Settings.

Step 4: Go to “Bluetooth and other devices”.

Step 5: Click on “Add device”.

Step 6: Open the lid of the charging case. After that, a blue light will flash for about 1 second, and the earbuds will turn on automatically.

When a blue light starts flashing on the earbuds, it means that they will be ready to pair with any device.

Step 7: Select the “EarFun Free 2S” earbuds. If a password is needed, type “0000”. After that, the flashing blue light will turn off, and the pairing will be done.

EarFun-Free-2S-Manual-1
Credits: EarFun

How to Connect To A New Device?

To connect these earbuds to a new device, you have two options to follow:

Option A

Step 1: Open the lid of the charging case. After that, a blue light will flash for about 1 second, and the earbuds will turn on automatically.

Step 2: Go to the Bluetooth settings of the connected device.

Step 3: Delete the “EarFun Free 2S” earbuds. This will unpair the earbuds from the device they are connected to.

When a blue light starts flashing on the earbuds, it means that they will be ready to pair with any device.

Step 4: Unlock the new desired device.

Step 5: Turn on Bluetooth on the desired device.

Step 6: Go to the device’s Bluetooth settings.

Step 7: Select the “EarFun Free 2S” earbuds. If a password is needed, type “0000”. After that, the flashing blue light will turn off, and the pairing will be done.

Option B

Step 1: Place the earbuds into the charging case and make sure that they are in charging mode.

Step 2: With the lid of the case open, press and hold the button on the back of the charging case for about 3 seconds, until the light on the earbuds starts flashing blue quickly. This means that they are now in pairing mode.

Step 3: Unlock the new desired device.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Go to the device’s Bluetooth settings.

Step 6: Select the “EarFun Free 2S” earbuds. If a password is needed, type “0000”. After that, the flashing blue light will turn off, and the pairing will be done.

EarFun-Free-2S-Manual-2
Credits: EarFun

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, a blue light will flash for about 1 second, and the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, a red light will flash for about 1 second, and the earbuds will turn off automatically.

EarFun-Free-2S-Manual-4
Credits: EarFun

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch panel on any of the earbuds two times.
  • Turn the volume up: Press the multifunction touch panel on the right earbud one time.
  • Turn the volume down: Press the multifunction touch panel on the left earbud one time.
  • Play the next song: Press the multifunction touch panel on the right earbud three times.
  • Play the previous song: Press the multifunction touch panel on the left earbud three times.
  • Answer an incoming call: Press the multifunction touch panel on any of the earbuds two times.
  • End a current call: Press the multifunction touch panel on any of the earbuds two times.
  • Reject an incoming call: Press and hold the multifunction touch panel on any of the earbuds for about 2 seconds.
  • Answer and transfer two calls to the connected device: Press the multifunction touch panel on any of the earbuds three times.
  • Activate the voice assistant: Press and hold the multifunction touch panel on the right earbud for about 2 seconds.

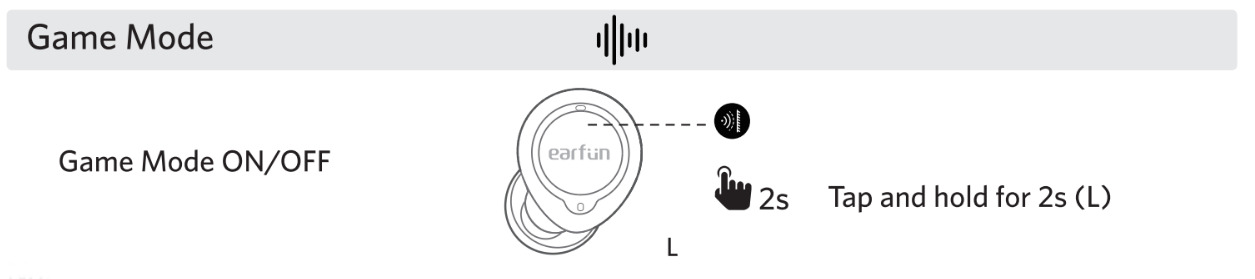

How to Use The Gaming Mode?

To activate or deactivate the gaming mode in these earbuds, all you have to do is to press and hold the multifunction touch panel on the left earbud for about 2 seconds.

EarFun-Free-2S-Manual-6
Credits: EarFun

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can get charged using a wireless charger.

EarFun-Free-2S-Manual-7
Credits: EarFun

How to Reset And Reconnect The Earbuds?

If you fail to build the connection between the two earbuds, or between the earbuds and the desired device, try the following steps:

Step 1: Place both earbuds into the charging case.

Step 2: With the lid of the case open, press and hold the button on the back of the charging case for at least 8 seconds, until the light on the earbuds starts flashing purple. This means that the resetting process was successful.

Step 3: Delete all pairing information from the “EarFun Free 2S” earbuds on the connected device.

What Do The Lights Mean?

Earbuds

  • A blue light flashes for 1 second: The earbuds turn on.
  • A red light flashes for 1 second: The earbuds turn off.
  • A blue light flashing: The earbuds are now in pairing mode.
  • Said flashing blue light turns off: The earbuds are now connected to the device.
  • A purple light flashing: The earbuds are resetting.

Charging case

  • A green light flashing with the earbuds inside (when the case is open or closed): The earbuds have more than 30% of battery.
  • An orange light flashing with the earbuds inside (when the case is open or closed): The earbuds have less than 30% of battery.
  • A red light flashing with the earbuds inside (when the case is open or closed): The earbuds have less than 10% of battery.
  • A red light flashing while charging: The case is charging.
  • A green light flashing while charging: The case is fully charged.
EarFun-Free-2S-Manual-9
Credits: EarFun

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

EarFun-Free-2S-Manual-10
Credits: IDO Audio

FAQs

Are the EarFun Free 2S waterproof?

Yes, the EarFun Free 2S are waterproof (IPX6 and up). They have a rating of IPX7, meaning that they not only are against water but are also protected against the effects of immersion.

Do the EarFun Free 2S have a microphone?

Yes, the earbuds come with integrated microphones.

Do the EarFun Free 2S have a low latency/gaming mode?

Yes. These earbuds have a low latency/gaming mode.

Can the EarFun Free 2S connect to PCs and laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the EarFun Free 2S noise-canceling?

No. These earbuds don’t come with noise-cancellation technology.

We hope you now know how to operate the earphone from the above EarFun Free 2S manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
