Edifier GM3 TWS Manual | Instructions & Troubleshooting

The Edifier GM3 TWS earbuds have Bluetooth 5.2, Hecate H+ sound effect specially tuned, 10mm composite bio-diaphragm drivers, an environmental noise canceling algorithm, up to 4.5 hours of battery life, the IPX5 dust and sweat-proof certification, and much more. Learn how to use these earbuds using this manual!

Edifier GM3 TWS Earbuds Manual & Guide

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, the “Power on” voice prompt will sound, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch sensor on both earbuds for about 3 seconds.

When the “Pairing” voice prompt sounds, the earbuds will be ready to pair with any device.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “HECATE GM3 “. If a password is needed, type “0000”. After that, a “Connected” voice prompt will sound, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case and take the earbuds out. After that, the “Power on” voice prompt will sound, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch sensor on both earbuds for about 3 seconds.

When the “Pairing” voice prompt sounds, the earbuds will be ready to pair with any device.

Step 6: Select “HECATE GM3 “. If a password is needed, type “0000”. After that, a “Connected” voice prompt will sound, and the pairing will be done.

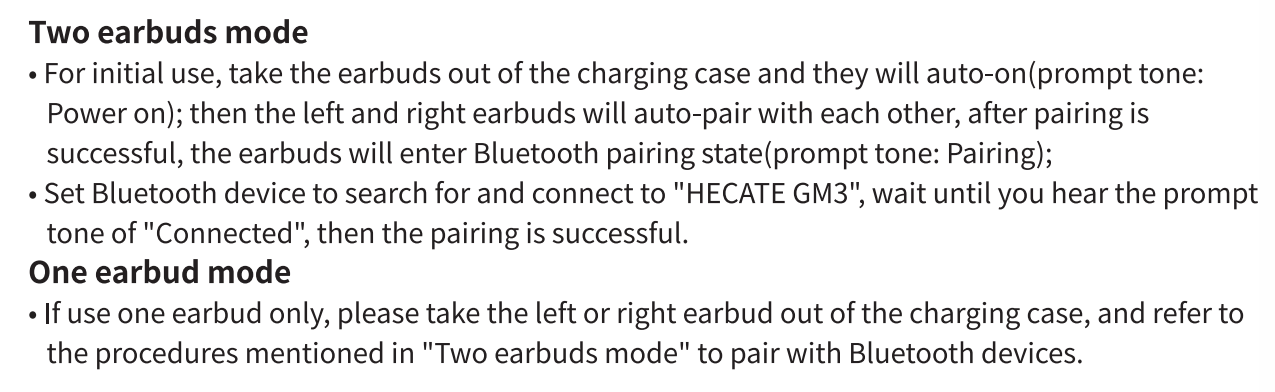

Edifier-GM3-TWS-Manual-1
Credits: Edifier

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, the “Power on” voice prompt will sound, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch sensor on both earbuds for about 3 seconds.

Turn off: Place the earbuds into the charging case. After that, the earbuds will turn on automatically. Also, you can press and hold the multifunction touch sensor on both earbuds for about 6 seconds.

Edifier-GM3-TWS-Manual-2
Credits: Edifier

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch sensor on any of the earbuds two times.
  • Play the next song: Press and hold the multifunction touch sensor on the right earbud for about 2 seconds.
  • Play the previous song: Press and hold the multifunction touch sensor on the left earbud for about 2 seconds.
  • Answer an incoming call: Press the multifunction touch sensor on any of the earbuds two times.
  • End a current call: Press the multifunction touch sensor on any of the earbuds two times.
  • Reject an incoming call: Press and hold the multifunction touch sensor on any of the earbuds for about 2 seconds.
  • Activate and deactivate the voice assistant: Press the multifunction touch sensor on the left earbud three times.
  • Activate and deactivate the Game mode: Press the multifunction touch sensor on the right earbud three times.

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Edifier-GM3-TWS-Manual-4

How to Reset The Earbuds?

Step 1: Take the earbuds out of the charging case.

Step 2: Place the earbuds into your ears to be aware of the resetting.

Step 3: Delete all the “HECATE GM3” pairing information on the connected device.

Step 4: Press and hold the multifunction touch sensor on both earbuds for about 6 seconds, so the earbuds turn off.

Step 5: Press and hold the multifunction touch sensor on both earbuds for about 3 seconds, so the earbuds turn on. After that, the “Power on” voice prompt will sound. After that, the resetting will be done.

The Earbud’s Prompt Voice

  • “Power on”: The earbuds turn on.
  • “Pairing”: The earbuds will be ready to pair with any device.
  • “Connected”: The earbuds are now connected to the desired device.
  • “Game mode”: The game mode was turned on.
  • “Music mode”: The game mode was turned off.
Edifier-GM3-TWS-Manual-5

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Edifier-GM3-TWS-Manual-6

FAQs

Are the Edifier GM3 TWS waterproof?

No, the Edifier GM3 TWS are not waterproof (IPX6 and up). They have a rating of IPX5, which means they’re protected against some water projected from a nozzle.

Do the Edifier GM3 TWS have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Edifier GM3 TWS have a low latency/gaming mode?

Yes! These earbuds have a low latency/gaming mode.

Can the Edifier GM3 TWS connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Edifier GM3 TWS noise-canceling?

No. These earbuds don’t come with noise-cancellation technology.

We hope you now know how to operate the earphone from the above Edifier GM3 TWS manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
