Edifier TWS1 Manual | Pairing & Charging Instructions 2021

The Edifier TWS1 comes with Bluetooth 5.0 with A2DP, AVRCP, HFP, and HSP profiles, the IPX5 certification, a battery life of 8 hours, an 8mm driver size, a Qualcomm chipset, and much more. Learn how to use them with this new Edifier TWS1 Manual.

Edifier TWS1 Manual | Everything You Need To Know!

Edifier TWS1 Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the charging case.

Step 2: Take both earbuds out of the charging case.

Step 3: Press and hold the touch button on both earbuds to enter the pairing state, until a red and blue light turns on and starts flashing.

Step 4: Go to the Bluetooth settings.

Step 5: Select “EDIFIER TWS1”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done and a blue light will flash slowly.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the charging case.

Step 7: Take both earbuds out of the charging case.

Step 8: Press and hold the touch button on both earbuds to enter the pairing state, until a red and blue light turns on and starts flashing.

Step 9: Select “EDIFIER TWS1”. If a password is needed, type “0000”.

Step 10: After that, the pairing will be done and a blue light will flash slowly.

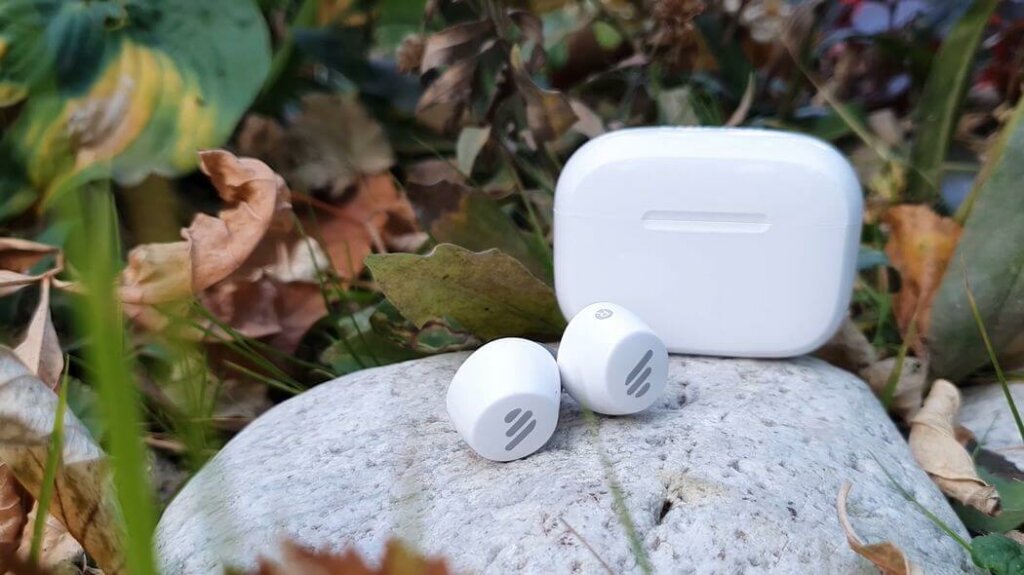

Edifier-TWS1-Manual-1
Credits: Awaqa

Edifier TWS1 Manual | How to Wear?

Step 1: Choose the ear tips that fit your ears the best.

Step 2: Identify the left and right earbuds.

Step 3: Rotate the earbuds and pop them into the ear, then shake your head to check the wearing stability.

Step 4: Adjust the mic towards the mouth to gain a better calling experience.

Edifier TWS1 Manual | How to Turn On And Off?

Turn on: Take the earbuds out of the charging case. They will automatically turn on.

Turn off: Place the earbuds into the charging case. They will automatically turn off.

Edifier TWS1 Manual | How to Activate Mono Mode?

Step 1: Open the charging case.

Step 2: Take one of the earbuds out of the charging case.

Step 3: Press and hold the touch button on said earbud to enter the pairing state, until a red and blue light turns on and starts flashing.

Step 4: Go to the Bluetooth settings.

Step 5: Select “EDIFIER TWS1”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done and a blue light will flash slowly.

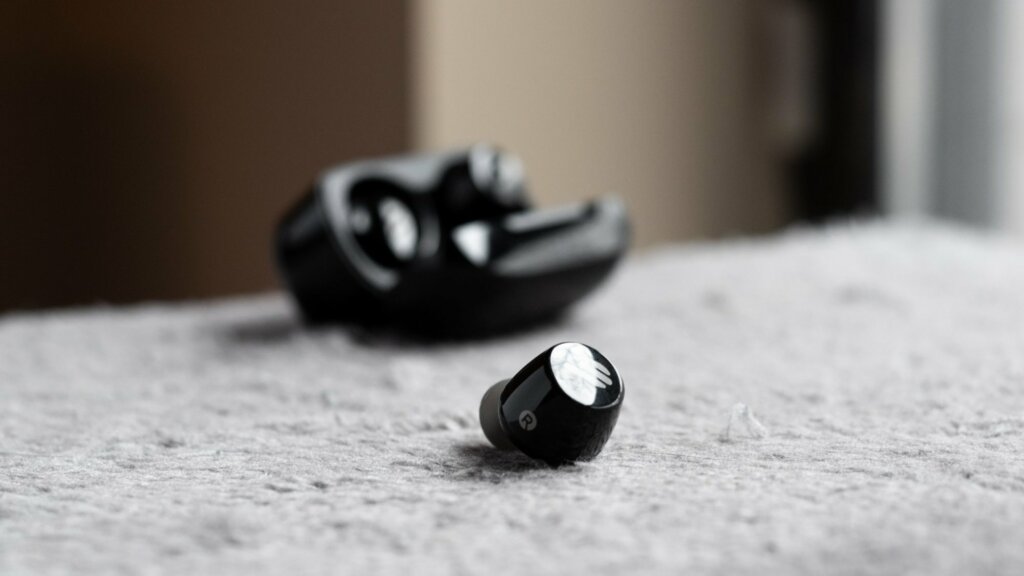

Edifier-TWS1-Manual-2
Credits: SoundGuys

How to Control? / How to Operate? – Instructions

  • Play and pause music: Press the touch button on any of the earbuds once.
  • Play the next song: Press the touch button on any of the earbuds three times.
  • Play the previous song: Press the touch button on any of the earbuds two times.
  • Answer an incoming call: Press the touch button on any of the earbuds once.
  • End a call: Press the touch button on any of the earbuds once.
  • Reject an incoming call: Press and hold the touch button on any of the earbuds.
Edifier-TWS1-Manual-3

Edifier TWS1 Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is plug a 5V USB Type-C cable into the port on the charging case. It will start charging automatically.

Edifier-TWS1-Manual-4

Edifier TWS1 Manual | LED Light Status

Earbuds

  • Red light flashes once: Earbuds have low battery.
  • Red light flashing: Earbuds charging.
  • Red light off: Earbuds fully charged.
  • Red and blue light flashing: Earbuds ready to pair.
  • Blue light flashing slowly: Earbuds paired.

Case

  • Red light on: Case charging.
  • Red light off: Case fully charged.
  • Led light flashing quickly: Case has low battery.

Edifier TWS1 Manual | How to Reset?

Step 1: Unpair the “EDIFIER TWS1” from the device they are connected to and delete the old connection on it.

Step 2: Press and hold the touch button on both earbuds for 8 seconds.

Step 3: After that, the resetting will be.

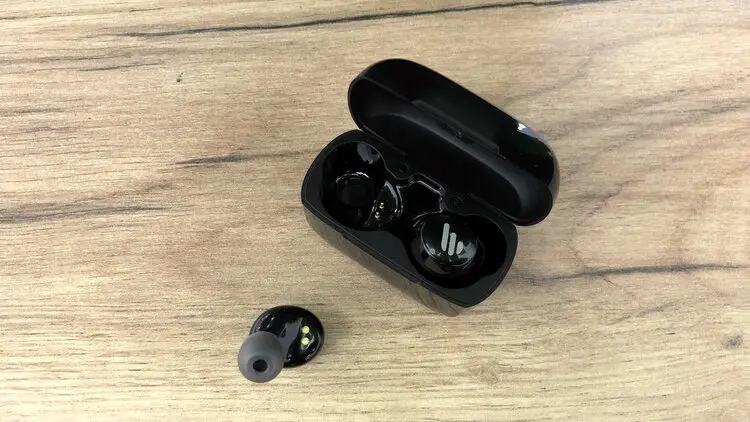

Edifier-TWS1-Manual-5
Credits: Scarbir

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory reset the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

Edifier TWS1 earbuds not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

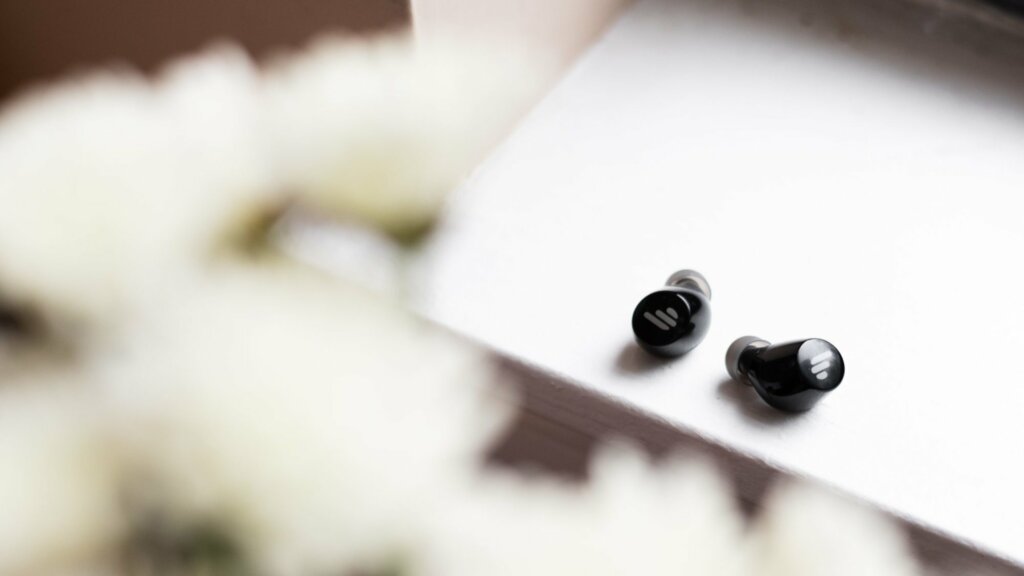

Edifier-TWS1-Manual-6
Credits: SoundGuys

FAQs

Are Edifier TWS1 waterproof?

The Edifier TWS1 have the IPX5 certification, which means they’re dustproof and protected against water projected from a nozzle.

Does Edifier TWS1 have a microphone?

Yes, the Edifier TWS1 have an integrated microphone.

Do Edifier TWS1 have low latency/gaming mode?

No, the Edifier TWS1 don’t have low latency/gaming mode.

How to know when Edifier TWS1 are fully charged?

When the Edifier TWS1 are charging, a red light flashes. When fully charged, the light turns off.

Can Edifier TWS1 connect to PC and Laptop?

Yes, the Edifier TWS1 can connect to PCs, laptops and tablets.

We hope you now know how to operate the earphone from the above Edifier TWS1 Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
