Edifier TWS200 Plus | Pairing & Charging Instructions

The Edifier TWS200 Plus earbuds come with a 13mm LCP diaphragm with frequency equalization, Bluetooth 5.2 to ensure a stable connection, Qualcomm TrueWireless Mirroring technology, cVc 8.0 Dual Mic noise cancellation, 6 hours of battery life, the IPX4 sweat and dust-proof certification, and much more. Learn how to use these earbuds using this manual!

Edifier TWS200 Plus | Pairing & Troubleshooting

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Place the earbuds into the charging case.

Step 2: Press the pairing button on the back of the charging case two times, so the earbuds enter pairing mode. When a red and white light starts flashing quickly, the earbuds enter pairing mode and will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “EDIFIER TWS200 Plus“. If a password is needed, type “0000”. After that, a white light will flash twice every 5 seconds, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Place the earbuds into the charging case.

Step 6: Press the pairing button on the back of the charging case two times, so the earbuds enter pairing mode. When a red and white light starts flashing quickly, the earbuds enter pairing mode and will be ready to pair with any device.

Step 7: Select “EDIFIER TWS200 Plus“. If a password is needed, type “0000”. After that, a white light will flash twice every 5 seconds, and the pairing will be done.

Edifier-TWS200-Plus-Manual-1
Credits: Edifier

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, a white light will turn on for one second, and the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn on automatically.

Edifier-TWS200-Plus-Manual-2
Credits: Edifier

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch button on any of the earbuds two times.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
Edifier-TWS200-Plus-Manual-3
Credits: Edifier

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Edifier-TWS200-Plus-Manual-4
Credits: Edifier

How to Clear The Pairing Records?

Step 1: When not connected to any Bluetooth device, place the earbuds into the charging case.

Step 2: Press and hold the pairing button on the back of the charging case for around 10 seconds, and release it when you see a white light flashing rapidly. The earbuds will clear the pairing records and enter the pairing mode.

What Do The Lights Mean?

Charging case

  • A white light turns on for one second: The earbuds turn on.
  • A red and white light will start flashing quickly: The earbuds will be ready to pair with any device.
  • A white light flashing twice every 5 seconds: The earbuds are now connected to the device.
  • A light is on while charging: The case is charging.
  • Said light turns off while charging: The case is fully charged.
  • A light is on while on the case: The earbuds are charging.
  • Said light turns off while on the case: The earbuds are fully charged.

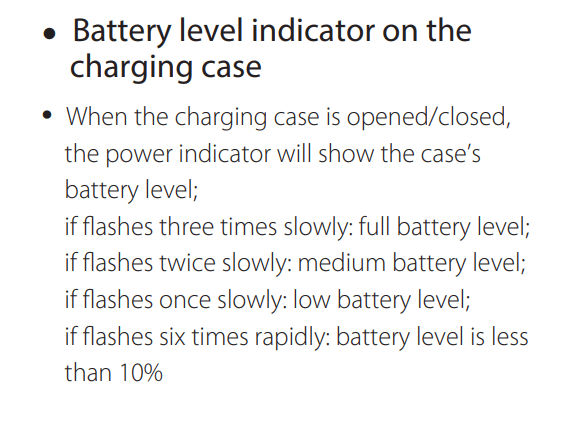

  • The light flashes one time slowly when the lid is open/closed: The case has a low battery level.
  • The light flashes two times slowly when the lid is open/closed: The case has a medium battery level.
  • The light flashes three times slowly when the lid is open/closed: The case has a full battery level.
  • The light flashes six times quickly when the lid is open/closed: The battery level is less
  •  than 10%.
  • A white light flashing while resetting: The earbuds are resetting.
Edifier-TWS200-Plus-Manual-5
Credits: Edifier

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Edifier-TWS200-Plus-Manual-6
Credits: Scarbir

FAQs

Are the Edifier TWS200 Plus waterproof?

No, the Edifier TWS200 Plus are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Edifier TWS200 Plus have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Edifier TWS200 Plus have a low latency/gaming mode?

No. These earbuds don’t have a low latency/gaming mode.

Can the Edifier TWS200 Plus connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Edifier TWS200 Plus noise-canceling?

No. These earbuds don’t come with noise-cancellation technology.

How to know when the Edifier TWS200 Plus are fully charged?

When the earbuds are charging, a light is on the case. When fully charged, said light turns off.

We hope you now know how to operate the earphone from the above Edifier TWS200 Plus manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
