Edifier W220T Earbuds | Step-by-step Manual

The Edifier W220T earbuds have a battery life of about 6 hours + 18 using the charging case, 13mm diaphragm drivers, Bluetooth 5.3 with a working range of 10 meters, 2 microphones in each earbud, the IPX4 sweat and dust-proof certification, and much more. Learn how to use these earbuds using this manual!

Edifier W220T Manual | All You Need To Know

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Press and hold the button on the back of the charging case for about 3 seconds. When a white and green light starts flashing, the earbuds will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “EDIFIER W220T“. If a password is needed, type “0000”. After that, a white light will start flashing.

When said white light stops flashing and turns off, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 6: Press and hold the button on the back of the charging case for about 3 seconds. When a white and green light starts flashing, the earbuds will be ready to pair with any device.

Step 7: Select “EDIFIER W220T“. If a password is needed, type “0000”. After that, a white light will start flashing.

When said white light stops flashing and turns off, the pairing will be done.

Edifier-W220T-Manual-1
Credits: Edifier

Connect To A Second Device

Step 1: Pair the earbuds with the first device as said in the pairing section above.

Step 2: Keep the earbuds in the charging case and keep the lid open.

Step 3: Press and hold the button on the back of the charging case for about 3 seconds to re-enter pairing mode. When a white and green light starts flashing, the earbuds will be ready to pair with any device.

Step 4: Turn on Bluetooth on the second device.

Step 5: Go to the device’s Bluetooth settings.

Step 6: Select “EDIFIER W220T“. If a password is needed, type “0000”. After that, a white light will start flashing.

When said white light stops flashing and turns off, the pairing will be done.

Edifier-W220T-Manual-2
Credits: Edifier

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn on automatically.

Edifier-W220T-Manual-3
Credits: Edifier

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch sensor on any of the earbuds one time.
  • Play the next song: Press the multifunction touch sensor on any of the earbuds two times.
  • Play the previous song: Press the multifunction touch sensor on any of the earbuds three times.
  • Answer an incoming call: Press the multifunction touch sensor on any of the earbuds one time.
  • End a current call: Press the multifunction touch sensor on any of the earbuds one time.
  • Reject an incoming call: Press the multifunction touch sensor on any of the earbuds two times.
  • Activate the voice assistant: Press and hold the multifunction touch sensor on any of the earbuds for about 2 seconds.
Edifier-W220T-Manual-4
Credits: Edifier

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Edifier-W220T-Manual-5
Credits: Edifier

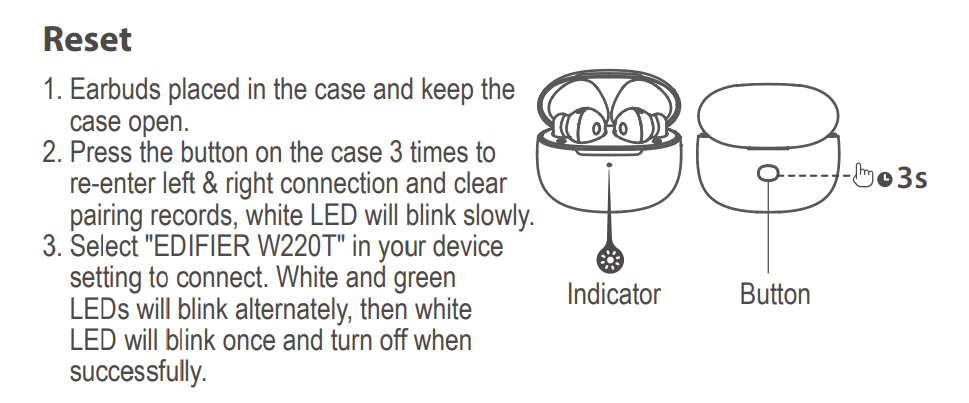

How to Reset The Earbuds?

Step 1: Delete all pairing information related to the “EDIFIER W220T” earbuds on the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open.

Step 3: Press and hold the button on the back of the charging case for about 3 seconds to re-enter the left and right connection, and clear the pairing records on the earbuds. A white light will start flashing.

After that, the resetting will be done. The earbuds can get paired again.

Edifier-W220T-Manual-6
Credits: Edifier

A Guide To Edifier W220T APP

The Edifier W220T can be used with an application, called Edifier Connect. This application is available for iOS and Android devices.

  • First page: On the first page, not only is the battery percentage that the earbuds have but there is also the ability to turn ANC and ambient sound mode on or off. Likewise, there are also the settings, where there is information about the earbuds, as well as some options for use and user manuals.
  • Second page: On the second page, you will find information about the different products launched by Edifier, as well as blogs, news, and support in case of problems with the devices.
  • Third page: On the third page, you will find general information about the application, as well as the devices with which it is compatible, FAQs, and more.

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Edifier-W220T-Manual-7

FAQs

Are the Edifier W220T waterproof?

No, the Edifier W220T are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Edifier W220T have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Edifier W220T have a low latency/gaming mode?

No. These earbuds don’t have a low latency/gaming mode.

Can the Edifier W220T connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Edifier W220T noise-canceling?

No. These earbuds don’t come with noise-cancellation technology.

How to know when the Edifier W220T are fully charged?

When the earbuds are charging, an orange light is on the case. When fully charged, said light turns off.

We hope you now know how to operate the earphone from the above Edifier W220T manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
