Edifier X3S Manual | Pairing & Charging Instructions

The Edifier X3S have CVC V8.0 noise-cancellation technology, a Qualcomm chipset, the IPX5 dust and water resistance certification, up to 8 hours of music playback with a fully charged battery, Bluetooth 5.2 with aptX, SBC codec, and much more. Learn how to use them with this new Edifier X3S Manual.

If you are interested in purchasing these earbuds, you can easily do it using the Amazon official website. In case you want to give the original manual a look, you can do it here.

Edifier X3S Specs Sheet

ModelEdifier X3S
WeightEarbuds: 3.9 grams each
Charging case: 62 grams
Waterproof/IP ratings  IPX5
Bluetooth version          V5.2
Range/Distance10 meters
Driver6mm
Audio DecodingSBC
Connectivity Port/Charging CableType-C
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: 8 hours
Charging case: 20 hours
Charging Time  Earbuds: About 1.5 hours
Charging case: About 2 hours
App Support     No
Controls/Features         Play or pause music, play the next and previous song, turn the volume up and down, answer, end, and reject an incoming call, voice assistant, Gaming mode
Accessories       Charging case, user manual, USB cable, ear tips
Price30 USD

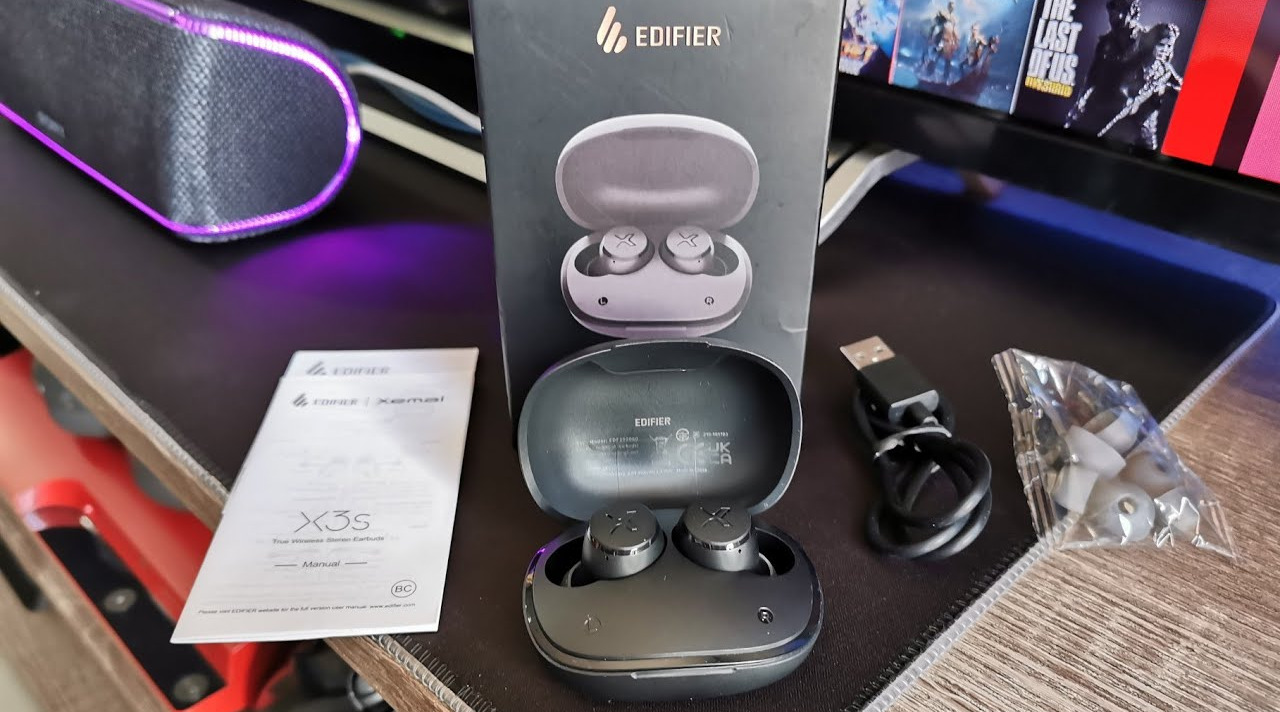

Edifier X3S Accessories

The earbuds come with the following accessories:

  • Charging case.
  • User manual.
  • USB cable.
  • Ear tips.
edifier-x3s-manual-0-1
Credits: ArcMhyke Unboxed

Edifier X3S Manual | Everything You Need To Know!

How To Pair The Earbuds?

To iOS and Android phones

Step 1: Take the earbuds out of the charging case. After that, a blue light will turn on for 1 second and the earbuds will turn on automatically.

Step 2: Press and hold the multifunction touch button on both earbuds for about 2 to 3 seconds. When a red and blue light starts flashing on both earbuds, they will be ready to pair to any device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “EDIFIER X3S”. If a password is needed, type “0000”.

After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Take the earbuds out of the charging case. After that, a blue light will turn on for 1 second and the earbuds will turn on automatically.

Step 7: Press and hold the multifunction touch button on both earbuds for about 2 to 3 seconds. When a red and blue light starts flashing on both earbuds, they will be ready to pair to any device.

Step 8: Select “EDIFIER X3S”. If a password is needed, type “0000”.

After that, the pairing will be done.

Edifier-X3S-Manual-1

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn on: Take the earbuds out of the charging case. After that, a blue light will turn on for 1 second and the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Edifier-X3S-Manual-2

How to Control? / How to Operate? – Instructions

NOTE: The multifunction touch sensor is placed on the top part of the body of the earbuds.

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on the right earbud two times.
  • Play the previous song: Press the multifunction touch button on the left earbud two times.
  • Turn the volume up: Press and hold the multifunction touch button on the right earbud.
  • Turn the volume down: Press and hold the multifunction touch button on the left earbud.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press and hold the multifunction touch button on any of the earbuds for about 2 to 3 seconds.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 to 3 seconds.
  • Activate the Voice Assistant: Press the multifunction touch button on any of the earbuds three times.

How To Activate The Gaming Mode?

To turn on and off the gaming mode in the Edifier X3S, all you have to do is to press the multifunction touch button on the right earbud three times.

Edifier-X3S-Manual-3

How To Activate The Mono Mode?

To activate the mono mode in the Edifier X3S, all you have to do is to pair the earbuds with the desired device and take one of the earbuds out of the charging case. It can be used alone.

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Edifier-X3S-Manual-4
Credits: Scarbir

What Do The Lights Mean?

Earbuds

  • Blue light on for 1 second: Earbuds turn on.
  • Red and blue light flashing: Earbuds ready to pair to any device.
  • Red light flashing: Earbuds have low battery.
  • Red light on: Earbuds charging.
  • Red light off: Earbuds fully charged.
  • Blue light on while resetting: Earbuds resetting.

Charging case

  • Red light on: Case charging.
  • Red light off: Case fully charged.

How To Reset These Earbuds?

Step 1: Take the earbuds out of the charging case. After that, a blue light will turn on for 1 second and the earbuds will turn on automatically.

Step 2: Press the multifunction touch button on both earbuds three times.

Step 3: Press and hold the multifunction touch button on both earbuds for about a couple of seconds. When a blue light starts flashing on both earbuds, the pairing record on the earbuds will be cleared.

Step 4: Clear the pairing information of the device to pair.

After that, the resetting will be done.

Edifier-X3S-Manual-6

Do These Earbuds Have An App?

Sadly, these earbuds don’t come with a specialized app or app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Edifier-X3S-Manual-7
Credits: Scarbir

FAQs

Are Edifier X3S waterproof?

No, they are not waterproof (IPX6). The Edifier X3S earbuds have the IPX5 certification, which means they’re dustproof and protected against water projected from a nozzle.

Does Edifier X3S have a microphone?

Yes, the Edifier X3S have integrated microphones.

Do Edifier X3S have low latency/gaming mode?

Yes, the Edifier X3S have a low latency/gaming mode.

How to know when Edifier X3S are fully charged?

When the earbuds are charging, a red light turns on. When fully charged, that light turns off.

Can Edifier X3S connect to PC and Laptop?

Yes, the Edifier X3S can connect to PCs, laptops, and tablets.

We hope you now know how to operate the earbuds from the above Edifier X3S Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Edifier company, all your information can be found on its Contact Us page, where you can find numbers and emails available for several countries! Also, they have a Support page, with FAQs and information about their products!
