The Google Pixel Buds A-Series have the IPX4 certification, Bluetooth 5.0, a custom-designed 12mm dynamic speaker driver, passive noise reduction for calls, a battery life of about 5 hours + 24 hours using the charging case, and more. Learn how to use them with this new Google Pixel Buds A-Series Manual.

Google Pixel Buds A-Series Manual | Pairing Instructions

Google Pixel Buds A-Series Manual | How to Pair / Connect?

To Google Pixel or Android 6.0+ Devices

Step 1: Open the lid of the charging case. After that, they will turn on automatically.

Step 2: Unlock the device and turn on the Bluetooth and Location features.

Step 3: Press the pairing touch button on the back of the charging case, until a white light starts flashing.

Step 4: Select “Google Pixel Buds”. If a password is needed, type “0000”.

Step 5: After that, the pairing will be done.

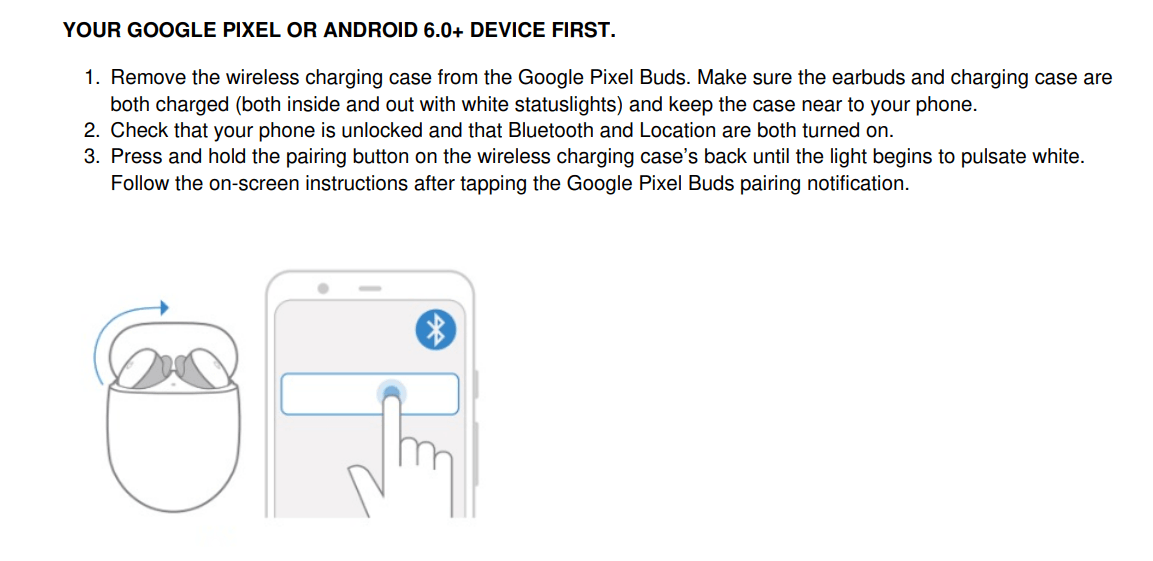

Google-Pixel-Buds-A-Series-Manual-1
Credits: manuals.plus

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, they will turn on automatically.

Step 2: Press the pairing touch button on the back of the charging case, until a white light starts flashing.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “Google Pixel Buds”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, they will turn on automatically.

Step 6: Press and hold the pairing touch button on the back of the charging case, until a white light starts flashing.

Step 7: Select “Google Pixel Buds”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Google-Pixel-Buds-A-Series-Manual-2
Credits: manuals.plus

Google Pixel Buds A-Series Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Google Pixel Buds A-Series Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, they will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Google-Pixel-Buds-A-Series-Manual-3
Credits: Elenbyte

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on any of the earbuds two times.
  • Play the previous song: Press the multifunction touch button on any of the earbuds three times.
  • Turn the volume up: Swipe forward the multifunction touch button on any of the earbuds.
  • Turn the volume down: Swipe backward the multifunction touch button on any of the earbuds.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds two times
Google-Pixel-Buds-A-Series-Manual-4
Credits: manuals.plus

Google Pixel Buds A-Series Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Google Pixel Buds A-Series Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Google-Pixel-Buds-A-Series-Manual-5
Credits: Elenbyte

Google Pixel Buds A-Series Manual | How to Reset?

Step 1: Delete all “Google Pixel Buds” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and leave the lid open.

Step 3: Connect the charging case to a USB charger or charging port with the included USB-A to C cable.

Step 4: Press and hold the pairing touch button on the back of the charging case for about 30 seconds. After that, resetting will be done.

Google Pixel Buds A-Series Manual | LED Light Status

Charging case

  • A white light flashing with the earbuds inside: The earbuds are now in pairing mode.

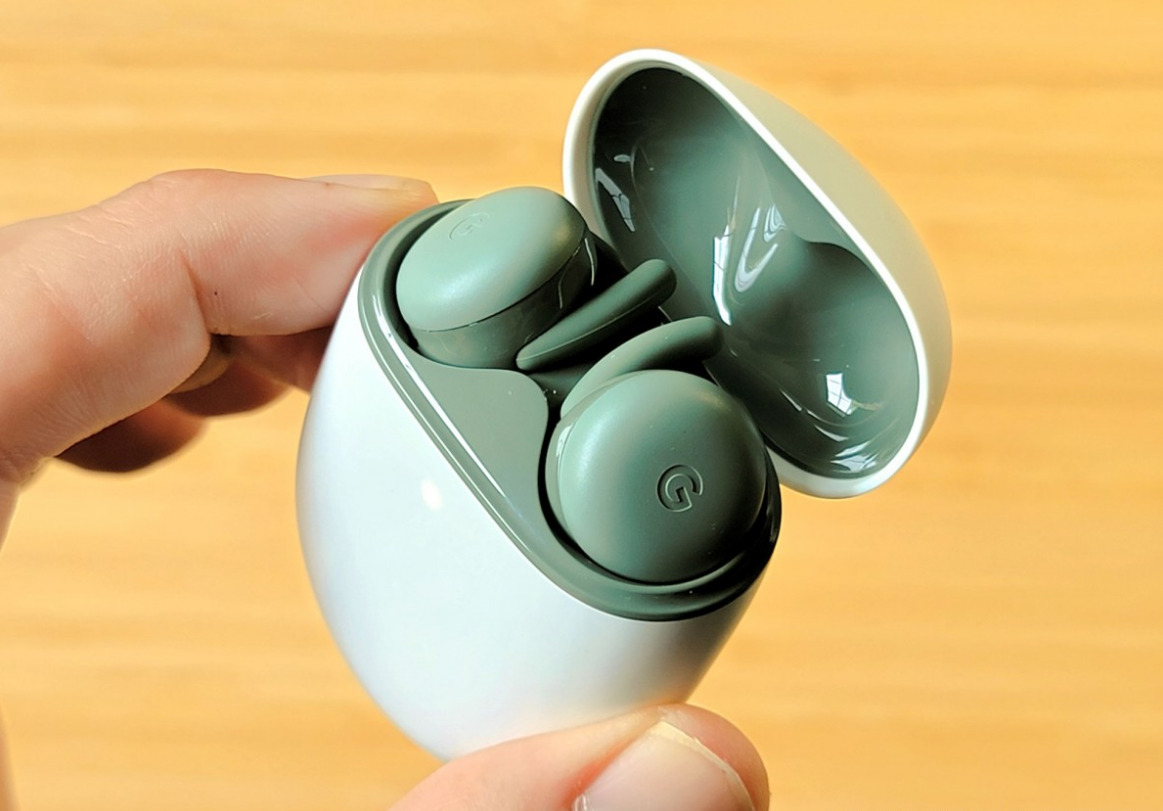

Google-Pixel-Buds-A-Series-Manual--
Credits: GSMARENA

A Guide To Google Pixel Buds A-Series APP

The Google Pixel Buds A-Series can be used with an application, called Google Pixel Buds. This application is available in the Play Store for Android devices. When opening the application, the first thing we have to do is connect our earbuds, and after that, the main page will appear.

At the top is the battery percentage of the earbuds and the charging case, and then comes the features of the application. Not only can you configure the operation of Google Assistant, but you can also have the “Find device” feature, you can configure the controls on the earbuds, there is an Equalizer, and more settings such as information about the earbuds and firmware updates, in case there is any.

Google-Pixel-Buds-A-Series-Manual-6

Google Pixel Buds A-Series Manual | How to Update the Firmware?

To Google Pixel or Android 6.0+ Devices

Step 1: Place the earbuds into the charging case and keep the lid open.

Step 2: Go to Settings.

Step 3: Go to Connected devices.

Step 4: Click on Pixel Bud’s settings.

Step 5: Go to More settings.

Step 6: Go to Firmware update.

Step 7: Click on Update available. After that, just follow the on-screen instructions. This will take about 15 minutes.

To iOS and Android Phones

Step 1: Place the earbuds into the charging case and keep the lid open.

Step 2: Open the Google Pixel Buds app.

Step 3: Go to More settings.

Step 4: Go to Firmware update.

Step 5: Click on Update available. After that, just follow the on-screen instructions. This will take about 15 minutes.

Google-Pixel-Buds-A-Series-Manual-7
Credits: Elenbyte

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Google-Pixel-Buds-A-Series-Manual-8
Credits: Elenbyte

FAQs

Are the Google Pixel Buds A-Series waterproof?

No, the Google Pixel Buds A-Series are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Google Pixel Buds A-Series have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Google Pixel Buds A-Series have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the Google Pixel Buds A-Series connect to PC and Laptop?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Google Pixel Buds A-Series noise-canceling?

No! These earbuds don’t come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Google Pixel Buds A-Series Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
