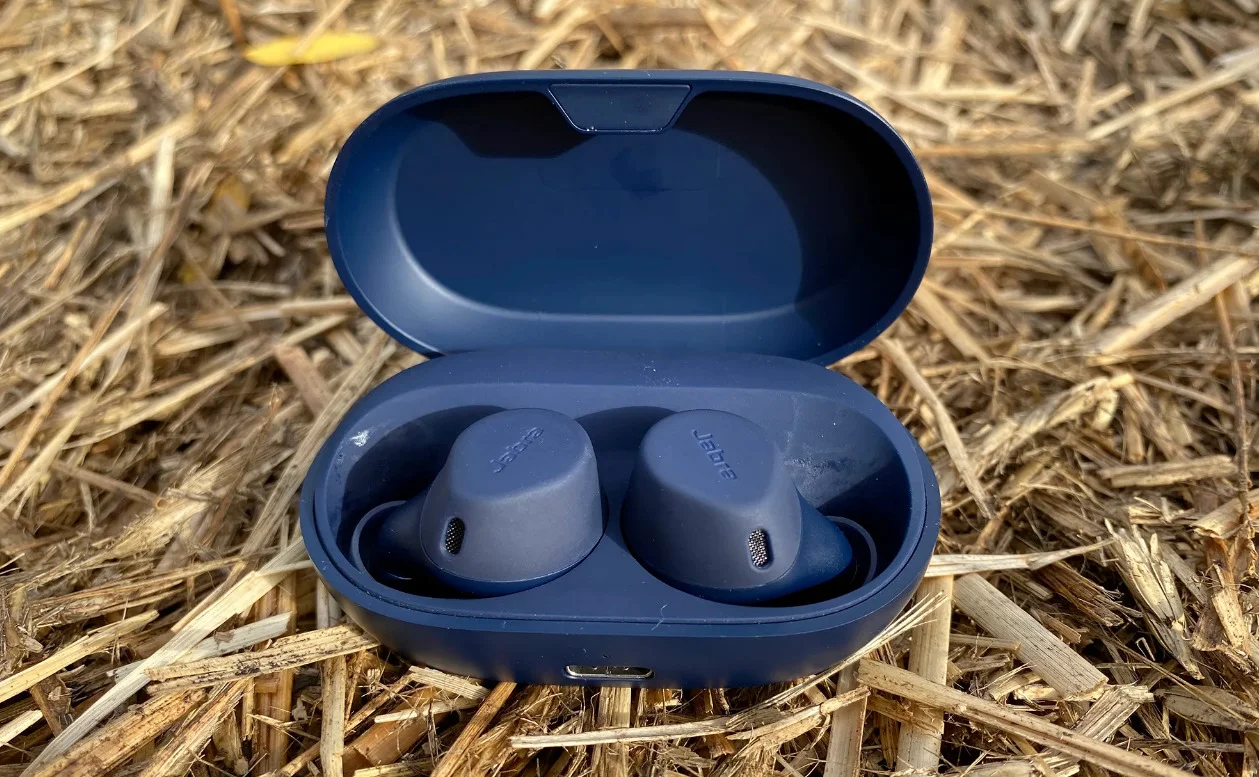

Jabra-Elite-7-Active-Manual-11

Jabra Elite 7 Active Manual | Instructions & Troubleshooting

The Jabra Elite 7 Active earbuds have Bluetooth 5.2, ANC, and HearThrough modes, 6mm customized drivers, 8 hours of battery life + 20 using the charging case, the IPX7 waterproof certification, app support, and much more. Learn how to use these earbuds using this Jabra Elite 7 Active manual!

If you are interested in purchasing these earbuds, you can easily do it using the Jabra official website. In case you want to give the original manual a look, you can do it here.

Jabra Elite 7 Active Specs Sheet

ModelJabra Elite 7 Active
WeightEarbuds: 5.5 grams each
Charging case: 44 grams
Waterproof/IP ratings  IPX7
Bluetooth version          V5.2
Range/Distance10 meters
Driver6mm
Audio DecodingSBC, AAC
Connectivity Port/Charging CableType-C
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: About 8 hours
Charging case: About 20 hours
Charging Time  Earbuds: About 2.5 hours
Charging case: About 2.5 hours
App Support     Yes, Jabra Sound+
Controls/Features         Play or pause music, play the next and previous song, answer, end, and reject a call, voice assistant, mute or unmute que microphone, restart the current track, end a current call and answer an incoming call, reject an incoming call while on a call, ANC, HearThrough mode
Accessories       Charging case, user manual, USB cable, ear tips, warranty card
PriceAbout 180 USD

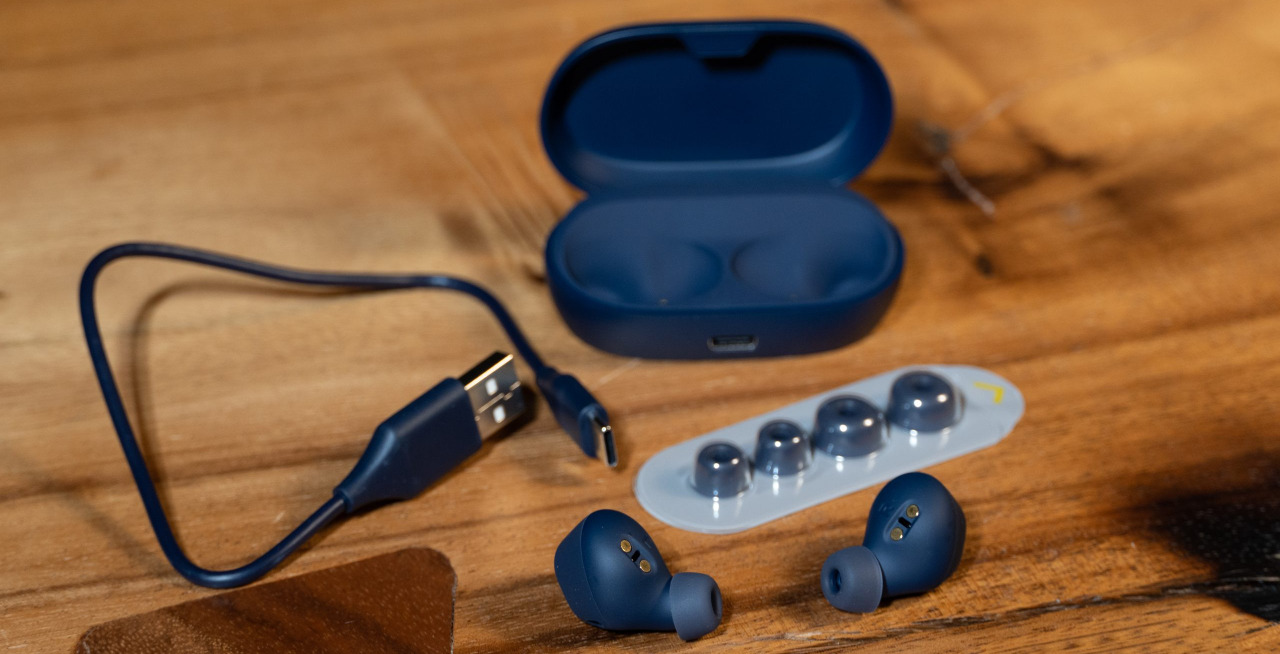

Jabra Elite 7 Active Accessories

The earbuds come with the following accessories:

  • Charging case.
  • User manual.
  • USB cable.
  • Ear tips.
  • Warranty card.
jabra-elite-7-active-manual-0
Credits: SoundGuys

Jabra Elite 7 Active | Pairing & Charging Instructions

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, they will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

Step 2: Press and hold the multifunction touch button on both earbuds for about 3 seconds, until a blue light starts flashing, meaning that they will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “Jabra Elite 7 Active”. If a password is needed, type “0000”. After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case and take the earbuds out. After that, they will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

Step 6: Press and hold the multifunction touch button on both earbuds for about 3 seconds, until a blue light starts flashing, meaning that they will be ready to pair with any device.

Step 7: Select “Jabra Elite 7 Active”. If a password is needed, type “0000”. After that, the pairing will be done.

Jabra-Elite-7-Active-Manual-1
Credits: Jabra

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, they will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

Turn off: Place the earbuds into the charging case. After that, the earbuds will turn off automatically. Also, you can press the multifunction touch button on both earbuds.

Jabra-Elite-7-Active-Manual-2
Credits: Jabra

How to Control? / How to Operate? – Instructions

NOTE: The multifunction touch button is placed on the top part of the body of the earbuds.

  • Play or pause music: Press the multifunction touch button on the right earbud one time.
  • Play the next song: Press the multifunction touch button on the right earbud two times.
  • Restart the current track: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the right earbud three times.
  • Turn the volume up: Press and hold the multifunction touch button on the right earbud.
  • Turn the volume down: Press and hold the multifunction touch button on the left earbud.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • End a current call and answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call, while on a call: Press the multifunction touch button on any of the earbuds two times.
  • Mute or unmute the microphone: Press the multifunction touch button on any of the earbuds one time.
  • Activate the voice assistant: Press the multifunction touch button on the left earbud two times when not on a call.

How to Activate The ANC Mode?

To activate or deactivate the ANC mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud one time when not on a call.

How to Activate The HearThrough Mode?

To activate or deactivate the HearThrough mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud one time when not on a call.

Jabra-Elite-7-Active-Manual-4
Credits: Jabra

How to Control In Mono Mode?

Left Earbud

  • Activate, change, and deactivate ANC and HearThrough mode: Press the multifunction touch button on the earbud one time when listening to music.
  • Answer an incoming call: Press the multifunction touch button on the earbud one time.
  • End a current call: Press the multifunction touch button on the earbud two times.
  • Reject an incoming call: Press the multifunction touch button on the earbud two times.
  • Mute or unmute the microphone: Press the multifunction touch button on the earbud one time when on a call.
  • Activate the voice assistant: Press the multifunction touch button on the earbud two times when not on a call.
Jabra-Elite-7-Active-Manual-5
Credits: Jabra

Right Earbud

  • Play or pause music: Press the multifunction touch button on the earbud one time.
  • Answer an incoming call: Press the multifunction touch button on the earbud one time.
  • End a current call: Press the multifunction touch button on the earbud two times.
  • Reject an incoming call: Press the multifunction touch button on the earbud two times.
  • Mute or unmute the microphone: Press the multifunction touch button on the earbud one time when on a call.
  • Play the next song: Press the multifunction touch button on the earbud two times.
  • Restart the current track: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the right earbud three times.
Jabra-Elite-7-Active-Manual-6
Credits: Jabra

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, it can be charged using a wireless charger.

Jabra-Elite-7-Active-Manual-7
Credits: Jabra

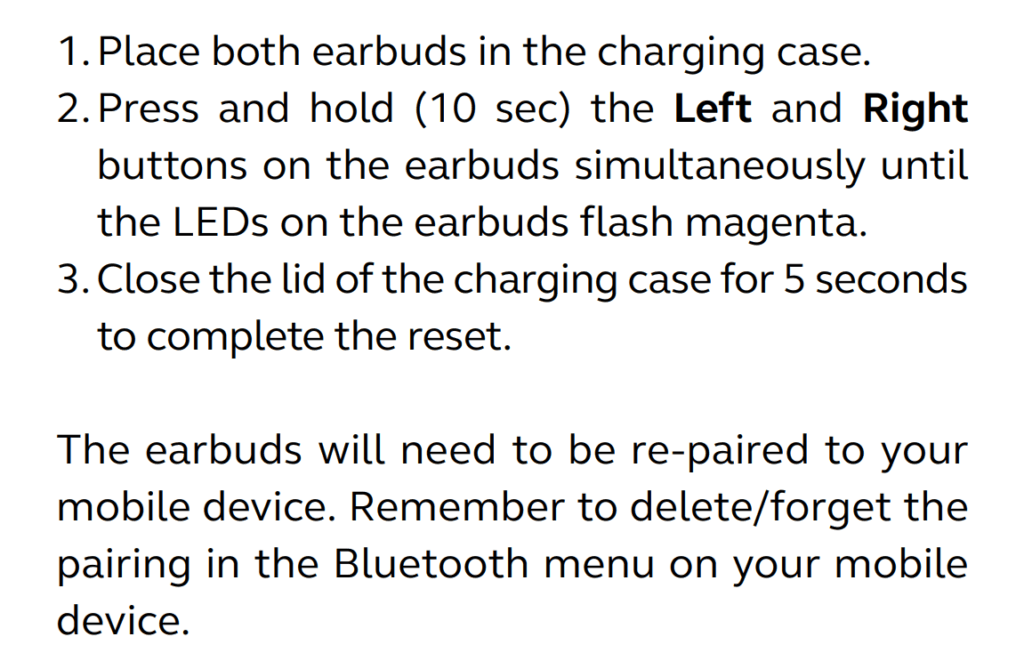

How to Reset The Earbuds?

Step 1: Delete all “Jabra Elite 7 Active” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open.

Step 3: Press and hold the multifunction touch button on both earbuds for about 10 seconds, until a purple light starts flashing.

Step 4: Close the lid of the charging case for about 5 seconds. After that, the resetting will be done.

Jabra-Elite-7-Active-Manual-8
Credits: Jabra

What Do The Lights Mean?

Earbuds

  • A green light flashing: The earbuds turn off.
  • A red light flashing: The earbuds turn off.
  • A blue light flashing: The earbuds are ready to pair with any device.
  • A red light on: The earbuds have a low battery level.
  • A yellow light on: The earbuds have a medium battery level.
  • A green light on: The earbuds have a high battery level.
  • A red light flashing while on the charging case: The battery of the earbuds is too low.
  • A red light on while on the charging case: The earbuds have a low battery level.
  • A yellow light on while on the charging case: The earbuds have a medium battery level.
  • A green light on while on the charging case: The earbuds have a high battery level.
  • A purple light flashing: The earbuds are resetting.

Charging case

  • A red light flashing: The case has a low battery level.
  • A yellow light flashing: The case has a medium battery level.
  • A green light flashing: The case has a high battery level.
  • A red light flashing while charging: The case has a low battery level.
  • A yellow light flashing while charging: The case has a medium battery level.
  • A green light flashing while charging: The case has a high battery level.
  • A green light on while charging: The case is fully charged.
  • A purple light flashing: The firmware is updating.
Jabra-Elite-7-Active-Manual-9
Credits: Jabra

A Guide To Jabra Elite 7 Active APP

The Jabra Elite 7 Active can be used with an application, called Jabra Sound+. This application is available for iOS and Android devices.

  • First page: On the first page of this application, we will find the battery percentages of both earbuds and the charging case, as well as the HearThrough sound mode and the equalizer.
  • Second page: On the second page, in addition to also showing the battery percentages of both earbuds and the charging case, you will find general information about the earbuds. Firmware can be updated, control settings can be changed, and a variety of user manuals and more are available.
  • Third page: On the third page, all the updates that the earbuds have will appear, as well as the possibility of registering the earbuds in the application and the “Find My Jabra” feature, in case the earbuds get lost.
  • Fourth page: On the fourth and last page you will find the most basic information about the application, as well as its net weight and its updated version.

How to Update The Earbud’s Software?

Step 1: Make sure that the earbuds are connected to a device.

Step 2: Go to the Jabra Sound+ app.

Step 3: Connect the earbuds to the Jabra Sound+ app.

Step 4: Go to the Discover icon.

Step 5: Select “Update now”, so the updating process starts.

Step 6: After the updating finishes, make sure to select “Agree” in the license terms to allow the update of the Jabra device.

Step 7: Place the earbuds into the charging case and close its lid.

Step 8: Connect the charging case to a charger or place it into a Jabra wireless charging pad.

Step 9: Follow the instructions on the screen to update the device. It may take up to 15 minutes, and a purple light will start flashing on the case.

Step 10: When the light stops flashing, wait at least 10 seconds to open the charging case. After that, the updating will be done.

NOTE: If the light does not stop flashing after 15 minutes, open the charging case cover and close it again.

Jabra-Elite-7-Active-Manual-10
Credits: Popular Science

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Jabra-Elite-7-Active-Manual-11
Credits: Popular Science

FAQs

Are the Jabra Elite 7 Active waterproof?

Yes, the Jabra Elite 7 Active are waterproof (IPX6 and up). They have a rating of IPX7, meaning that they not only are against water but are also protected against the effects of immersion.

Do the Jabra Elite 7 Active have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Jabra Elite 7 Active have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the Jabra Elite 7 Active connect to PCs and laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Jabra Elite 7 Active noise-canceling?

Yes. These earbuds come with noise-cancellation technology.

How to know when the Jabra Elite 7 Active are fully charged?

When the earbuds are charging, some lights are on. When fully charged, the lights turn green.

We hope you now know how to operate the earbuds from the above Jabra Elite 7 Active manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Jabra company, all your information can be found on its Contact Us page, where you can find numbers and emails available for several countries! Also, they have a Support page, with FAQs and information about the products they have.
