Jabra Elite 7 Pro Manual | Pairing & Troubleshooting 2022

The Jabra Elite 7 Pro comes with Bluetooth 5.2, four powerful built-in microphones, ANC and HearThrough modes, a battery life of about 8 hours + 22 using the charging case, the IPX7 waterproof certification, a specialized app, and more. Learn how to use them with this new Jabra Elite 7 Pro Manual.

Jabra Elite 7 Pro Manual | Everything You Need To Know!

Jabra Elite 7 Pro Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on and start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

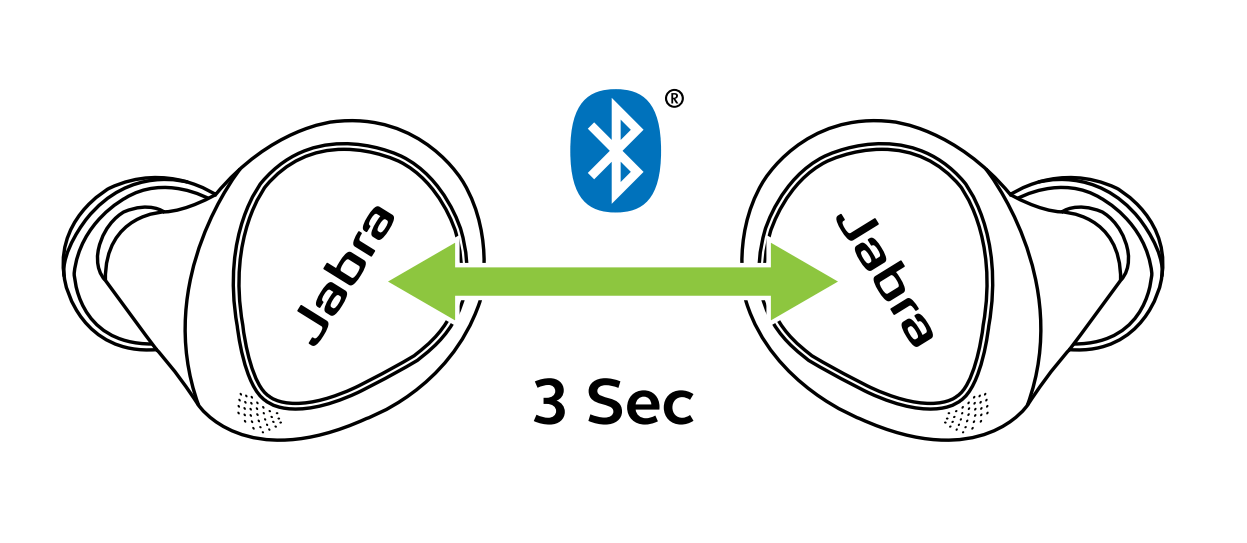

Step 2: Press and hold the multifunction touch button on both earbuds for about 3 seconds, until a blue light starts flashing, meaning that they will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “Jabra Elite 7 Pro”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on and start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

Step 6: Press and hold the multifunction touch button on both earbuds for about 3 seconds, until a blue light starts flashing, meaning that they will be ready to pair with any device.

Step 7: Select “Jabra Elite 7 Pro”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Jabra Elite 7 Pro Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Jabra Elite 7 Pro Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a green light will turn on and start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 1 second.

Turn off: Place the earbuds into the charging case and close its lid. After that, a red light will turn on and start flashing, and the earbuds will turn off automatically. Also, you can press the multifunction touch button on both earbuds one time without music.

How to Control? / How to Operate? – Instructions

• Play or pause music: Press the multifunction touch button on the right earbud one time.
• Turn the volume up: Press and hold the multifunction touch button on the right earbud.
• Turn the volume down: Press and hold the multifunction touch button on the left earbud.
• Play the next song: Press the multifunction touch button on the right earbud two times.
• Play the previous song: Press the multifunction touch button on the right earbud three times.
• Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• End a current call: Press the multifunction touch button on any of the earbuds two times.
• Reject an incoming call: Press the multifunction touch button on any of the earbuds two times.
• Mute or unmute the microphone: Press the multifunction touch button on any of the earbuds one time.
• End a current call and answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• Reject an incoming call when on a current call: Press the multifunction touch button on any of the earbuds two times.
• Activate the voice assistant: Press the multifunction touch button on the left earbud two times.

Jabra Elite 7 Pro Manual | How to Activate ANC Mode?

To activate or deactivate the ANC mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud one time.

Jabra Elite 7 Pro Manual | How to Activate HearThrough Mode?

To activate or deactivate the HearThrough mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud one time.

Jabra Elite 7 Pro Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Jabra Elite 7 Pro Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically. Also, the case can be charged using a Jabra wireless charging pad.

Jabra Elite 7 Pro Manual | How to Reset?

Step 1: Delete all “Jabra Elite 7 Pro” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open.

Step 3: Press and hold the multifunction touch button on both earbuds for about 10 seconds, until a purple light starts flashing.

Step 4: Close the lid of the charging case and wait 5 seconds. After that, the resetting will be done.

Jabra Elite 7 Pro Manual | LED Light Status

Earbuds

• A green light flashing: The earbuds turn on.
• A red light flashing: The earbuds turn off.
• A blue light flashing: The earbuds are ready to pair with any device.
• A red light on: The earbuds have a low battery level.
• A yellow light on: The earbuds have a medium battery level.
• A green light on: The earbuds have a high battery level.
• A red light flashing while on the charging case: The battery of the earbuds is too low.
• A red light on while on the charging case: The earbuds have a low battery level.
• A yellow light on while on the charging case: The earbuds have a medium battery level.
• A green light on while on the charging case: The earbuds have a high battery level.
• A purple light flashing: The earbuds are resetting.

Charging case

• A red light flashing: The case has a low battery level.
• A yellow light flashing: The case has a medium battery level.
• A green light flashing: The case has a high battery level.
• A green light on: The case is fully charged.
• A purple light flashing: The firmware is updating.
• A red light flashing while updating the firmware: There was an updating error.

A Guide To Jabra Elite 7 Pro APP

The Jabra Elite 7 Pro can be used with an application, called Jabra Sound+. This application is available for iOS and Android devices.

• First page: On the first page of this application, we will find the battery percentages of both earbuds and the charging case, as well as the HearThrough sound mode and the equalizer.
• Second page: On the second page, in addition to also showing the battery percentages of both earbuds and the charging case, you will find general information about the earbuds. Firmware can be updated, control settings can be changed, and a variety of user manuals and more are available.
• Third page: On the third page, all the updates that the earbuds have will appear, as well as the possibility of registering the earbuds in the application and the “Find My Jabra” feature, in case the earbuds get lost.
• Fourth page: On the fourth and last page you will find the most basic information about the application, as well as its net weight and its updated version.

Jabra Elite 7 Pro Manual | How to Update the Software?

Step 1: Make sure that the earbuds are connected to a device.

Step 2: Go to the Jabra Sound+ app.

Step 3: Connect the earbuds to the Jabra Sound+ app.

Step 4: Go to the Discover icon.

Step 5: Select “Update now”, so the updating process starts.

Step 6: After the updating finishes, make sure to select “Agree” in the license terms to allow the update of the Jabra device.

Step 7: Place the earbuds into the charging case and close its lid.

Step 8: Connect the charging case to a charger or place it into a Jabra wireless charging pad.

Step 9: Follow the instructions on the screen to update the device. It may take up to 15 minutes, and a purple light will start flashing on the case.

Step 10: When the light stops flashing, wait at least 10 seconds to open the charging case. After that, the updating will be done.

NOTE: If the light does not stop flashing after 15 minutes, open the charging case cover and close it again.

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earphone from the above Jabra Elite 7 Pro Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Jabra company, all your information can be found on its Contact Us page, where you can find numbers and emails available for several countries! Also, they have a Support page, with FAQs and information about
