JBL TUNE 220TWS Manual | Pairing & Troubleshooting 2022

The JBL TUNE 220TWS have a 12mm dynamic driver, a battery life of about 3 hours + 19 hours using the charging case, Bluetooth 5.0, a working connection range of 10 meters, a charging time of 2 hours, and more. Learn how to use them with this new JBL TUNE 220TWS Manual.

JBL TUNE 220TWS Manual | Pairing & Charging Guide

JBL TUNE 220TWS Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, a white light will flash quickly, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 2 seconds.

When a blue and white light starts flashing on the charging case, that means that they will be ready to pair with any device. If the earbuds don’t enter pairing mode automatically, all you have to do is to press and hold the multifunction touch button on the right earbud for 5 seconds.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “JBL TUNE 220TWS”. If a password is needed, type “0000”.

Step 5: After that, a blue light will start flashing slowly, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case and take the earbuds out. After that, a white light will flash quickly, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 2 seconds.

When a blue and white light starts flashing on the charging case, that means that they will be ready to pair with any device. If the earbuds don’t enter pairing mode automatically, all you have to do is to press and hold the multifunction touch button on the right earbud for 5 seconds.

Step 6: Select “JBL TUNE 220TWS”. If a password is needed, type “0000”.

Step 7: After that, a blue light will start flashing slowly, and the pairing will be done.

JBL-TUNE-220TWS-Manual-1
Credits: JBL

JBL TUNE 220TWS Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

JBL TUNE 220TWS Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a white light will flash quickly, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 2 seconds.

Turn off: Place the earbuds into the charging case. After that, the earbuds will turn off automatically. Also, you can press and hold the multifunction touch button on both earbuds for 5 seconds.

JBL-TUNE-220TWS-Manual-2
Credits: JBL

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on the right earbud one time.
  • Play the next song: Press the multifunction touch button on the left earbud one time.
  • Play the previous song: Press the multifunction touch button on the left earbud two times.
  • Answer an incoming call: Press the multifunction touch button on the right earbud one time.
  • End a current call: Press the multifunction touch button on the right earbud one time.
  • Mute or unmute the microphone: Press and hold the multifunction touch button on the right earbud for 3 seconds.
  • Activate the voice assistant: Press the multifunction touch button on the right earbud two times.

JBL TUNE 220TWS Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

JBL-TUNE-220TWS-Manual-3
Credits: JBL

JBL TUNE 220TWS Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

JBL-TUNE-220TWS-Manual-4
Credits: JBL

JBL TUNE 220TWS Manual | LED Light Status

Earbuds

  • A white light flashes quickly: The earbuds turn on.
  • A blue and white light flashing: The earbuds are ready to pair with any device.
  • A blue light flashing slowly: The earbuds are paired.
  • A white light flashing slowly: The earbuds have a low battery.
  • A white light on while on the charging case: The earbuds are charging.
  • Said light turns off while on the charging case: The earbuds are fully charged.

Charging case

  • A white light flashing: The case has a low battery.
  • A white light on and a white light flashing while charging: The case is charging.
  • All lights off while charging: The case is fully charged.
JBL-TUNE-220TWS-Manual-5
Credits: JBL

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

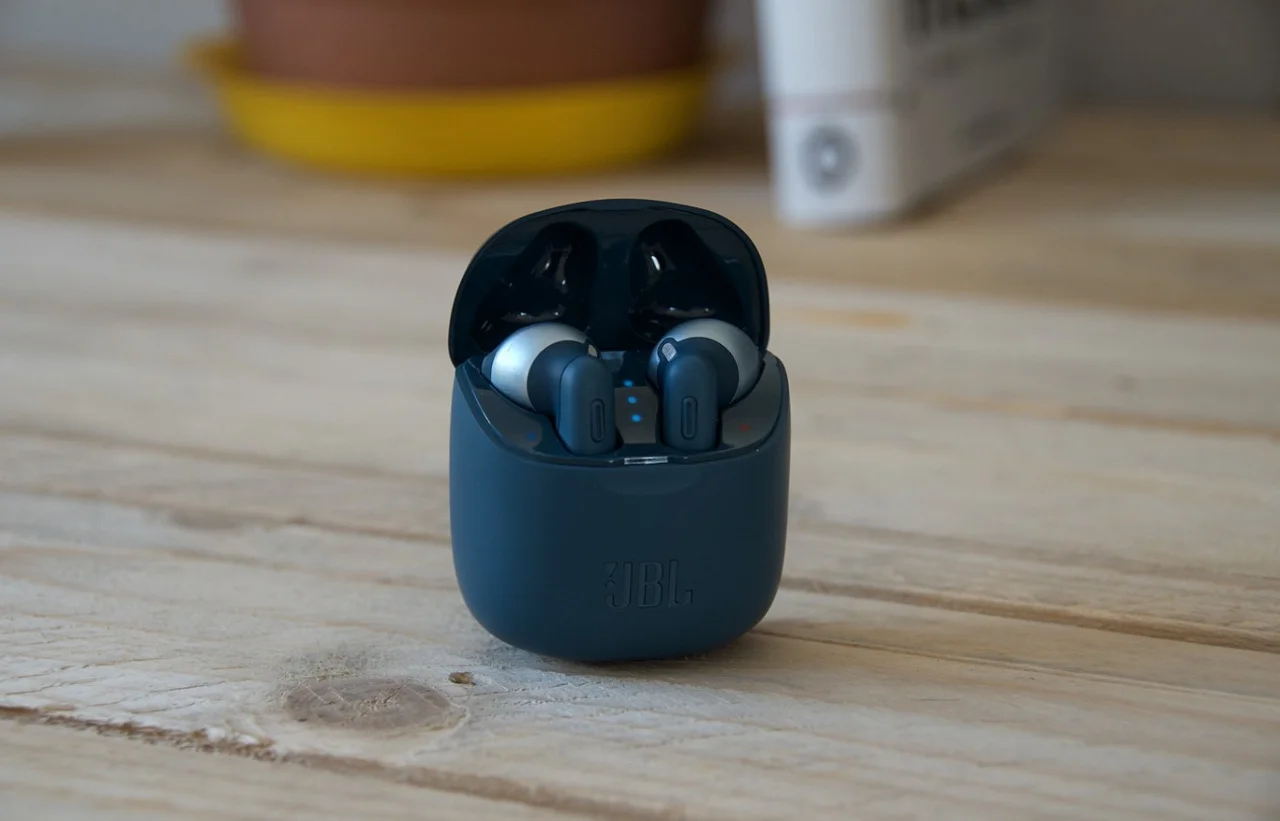

JBL-TUNE-220TWS-Manual-6
Credits: Xataka

FAQs

Are the JBL TUNE 220TWS waterproof?

For now, it is not known whether these earbuds are waterproof (IPX6 and up), although there is a good chance that they are not and have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the JBL TUNE 220TWS have a microphone?

Yes, the earbuds come with integrated microphones.

Do the JBL TUNE 220TWS have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the JBL TUNE 220TWS connect to PC and Laptop?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the JBL TUNE 220TWS noise-canceling?

No! These earbuds don’t come with noise cancellation technology.

How to know when the JBL TUNE 220TWS are fully charged?

When the earbuds are charging, a white light is on. When fully charged, the light turns off.

We hope you now know how to operate the earphone from the above JBL TUNE 220TWS Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
