The JBL Tune Beam earbuds come with specs such as Bluetooth 5.3 with up to 12 meters of working range, ANC, Ambient Aware and TalkThru mode support, a battery life of up to 12 hours, A2DP V1.3.2, AVRCP V1.6.2 and HFP V1.8 Bluetooth profiles support, app support, the IPX4 sweat and dust-proof certification, and much more. Learn how to use these earbuds using this JBL Tune Beam manual!

If you are interested in purchasing these earbuds, you can easily do it on the JBL official online store. Also, if you want to give the original manual a look, you can do it here.

JBL Tune Beam Specs Sheet

Model	JBL Tune Beam
Weight	Earbuds: 5 grams Charging case: 50.3 grams
Waterproof/IP ratings	IPX4
Bluetooth version	V5.3
Range/Distance	12 meters
Driver	6mm
Connectivity Port/ Charging Cable	Type-C
Speaker frequency response	20Hz – 20kHz
Battery Life	Earbuds: 10 hours (ANC on)/12 hours (ANC off) Charging case: 30 hours
Charging Time	Earbuds: About 2 hours
App Support	Yes, JBL Headphones
Controls/Features	Play and pause a song, play the next and previous song, answer, end a call, voice assistant, mute or unmute the microphone, ANC mode, Ambient Aware mode, TalkThru
Accessories	Charging case, user manual, USB cable, silicone ear tips, warranty card
Price	100 USD

Tune Beam Accessories

The earbuds come with the following accessories:

• Charging case.
• User manual.
• USB cable.
• Silicone ear tips.
• Warranty card.

JBL Tune Beam | Pairing & Charging Instructions

How to Pair The Earbuds?

To Android And iOS Devices

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Unlock the desired device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select the “JBL TUNE BEAM” earbuds. If a password is needed, write “0000”. A blue light will start flashing.

After that, the flashing light will stay still, and the pairing will be done.

To PC (Windows)

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Unlock the desired device.

Step 3: Go to the Settings.

Step 4: Go to “Bluetooth and other devices”.

Step 5: Turn on Bluetooth on the device.

Step 6: Click on “Add device”.

Step 7: Select the “JBL TUNE BEAM” earbuds. If a password is needed, write “0000”. A blue light will start flashing.

After that, the flashing light will stay still, and the pairing will be done.

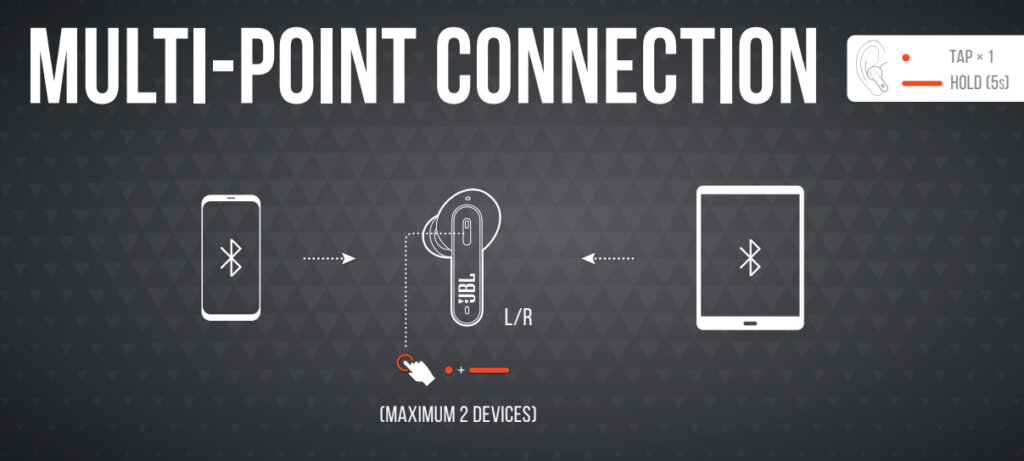

Multi-point Earbuds Connection

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Take both earbuds out of the case, or only one of the earbuds if you want to use them in mono mode.

Step 3: Press the multifunction touch button on said earbud one time.

Step 4: Press and hold the multifunction touch button on said earbud for about 5 seconds.

Step 5: Unlock the desired device.

Step 6: Turn on Bluetooth on the desired device.

Step 7: Go to the device’s Bluetooth settings.

Step 8: Select the “JBL TUNE BEAM” earbuds. If a password is needed, write “0000”. A blue light will start flashing.

After that, the flashing light will stay still, and the pairing will be done.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the earbuds into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Control These Earbuds? – Stereo Mode

NOTE: The multifunction touch sensor is placed on the top part of the stem of the earbuds.

• Activate/change between ANC and Ambient Aware modes: Press the multifunction touch button on the left earbud one time.
• Activate the TalkThru mode: Press the multifunction touch button on the left earbud two times.
• Play or pause the music: Press the multifunction touch button on the right earbud one time.
• Play the next song: Press the multifunction touch button on the right earbud two times.
• Play the previous song: Press the multifunction touch button on the right earbud three times.
• Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
• End a current call: Press the multifunction touch button on any of the earbuds two times.
• Mute or unmute the microphone: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
• Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

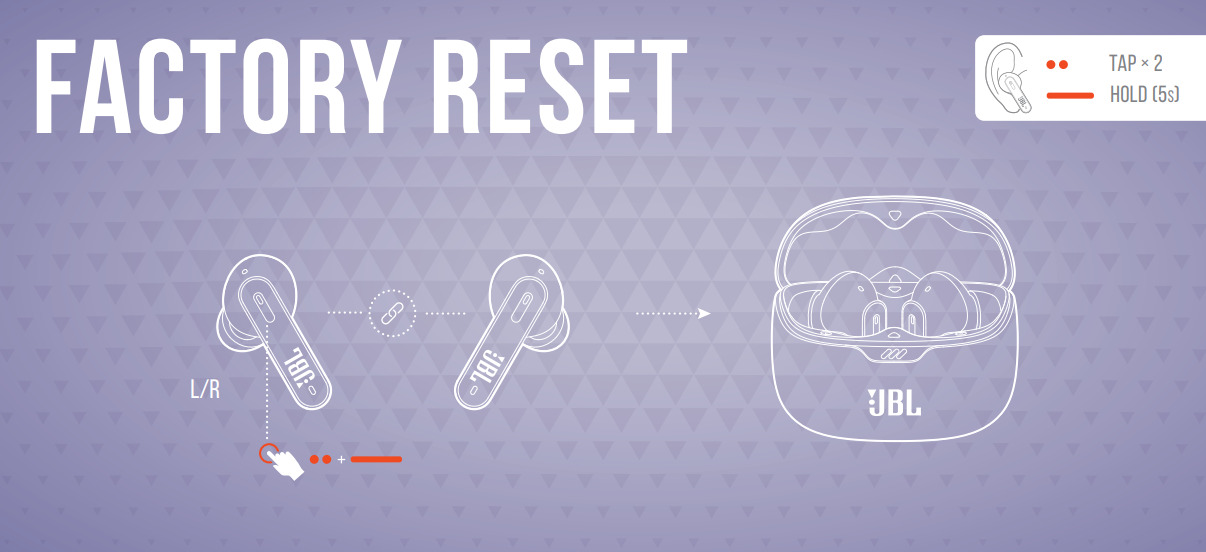

How to Factory Reset These Earbuds?

Step 1: Delete all “JBL TUNE BEAM” earbuds pairing information on the connected device.

Step 2: Take both earbuds out of the charging case.

Step 3: Press the multifunction touch button on both earbuds two times.

Step 4: Press and hold the multifunction touch button on both earbuds for about 5 seconds.

Step 5: Place both earbuds into the charging case.

After that, the resetting will be done.

What Do The Lights Mean?

Earbuds

• A blue light flashing: The earbuds are pairing to the device.
• A blue light on: The earbuds are now paired.
• A blue light flashing slowly while pairing: There was a pairing error.

Charging case

• One light flashing while charging: The case has a low battery level.
• One light on and one flashing while charging: The case is charging.
• All lights turn off while charging: The case is fully charged.
• Some lights flashing with the earbuds inside: The earbuds are charging.
• Said flashing lights turn off with the earbuds inside: The earbuds are fully charged.

A Guide To JBL Tune Beam APP

The JBL Tune Beam can be used with an application, called JBL HEADPHONES. This application is available in the Apple Store and in the Play Store for iOS and Android devices. When opening the application, the first thing we have to do is connect our earbuds, and after that, three specific pages:

• First page: This is the first page of this application, and you will be able to see the connected device.
• Second page: On the second page, we will not only find the connected device, but also the battery percentages of both earbuds. Also, you will find options like enabling or disabling the ANC, enabling or disabling the Ambient Sound Control, and the Smart Audio and Video feature.
• Third page: On the third and last page, you will be able to configure the controls of the earbuds, enable or disable the auto turn-off of the earbuds, the Find My Earbud feature, and information about the earbuds, and the firmware version.

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earbuds from the above JBL Tune Beam manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
