JBL UA True Wireless Flash X Manual & Instructions

The JBL UA True Wireless Flash X earbuds come with Bluetooth 5.0, a battery life of about 10 hours thanks to a 120mAh battery in each earbud, a 5.8mm sized driver in each earbud, support for the A2DP V1.3, AVRCP V1.6, HFP V1.7 Bluetooth profiles, the amazing IPX7 water-proof certification, and much more. Learn how to use these earbuds using this manual!

JBL UA True Wireless Flash X | Pairing & Charging Guide

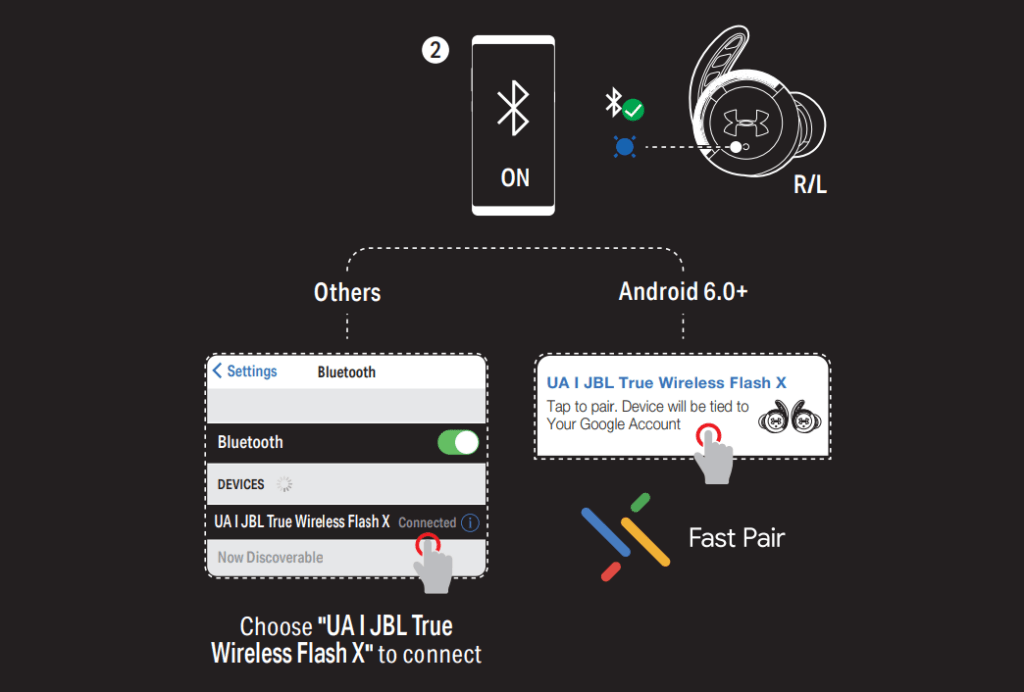

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the charging case and take the earbuds out. After that, a blue light will start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

A blue and red light will start flashing in the right earbud, and a blue light flashing slowly on the left one. This means that they are paired with each other.

NOTE: In mono mode, the chosen earbud will flash in red and blue.

When a blue light starts flashing slowly on both earbuds, it means that they are now ready to pair with any device (if they don’t enter pairing mode automatically, then press and hold the multifunction touch button on the right earbud for about 5 seconds).

Step 2: Turn on Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “JBL UA True Wireless Flash X“. If a password is needed, type “0000”. After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the charging case and take the earbuds out. After that, a blue light will start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

A blue and red light will start flashing in the right earbud, and a blue light flashing slowly on the left one. This means that they are paired with each other.

NOTE: In mono mode, the chosen earbud will flash in red and blue.

When a blue light starts flashing slowly on both earbuds, it means that they are now ready to pair with any device (if they don’t enter pairing mode automatically, then press and hold the multifunction touch button on the right earbud for about 5 seconds).

Step 6: Select “JBL UA True Wireless Flash X“. If a password is needed, type “0000”. After that, the pairing will be done.

How to Manually Pair The Earbuds To Each Other?

If there is a connection problem, or the connection is lost between the earbuds, then do the following:

With the earbuds out of the charging case, press the multifunction touch button on both of them three times. When a blue and red light starts flashing, they will be ready to pair with any device again.

JBL-UA-True-Wireless-Flash-X-Manual-2
Credits: JBL

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the charging case and take the earbuds out. After that, a blue light will start flashing, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 2 seconds.

Turn off: Place the earbuds into the charging case. After that, the earbuds will turn off automatically. Also, you can press and hold the multifunction touch button on both earbuds for about 5 seconds.

JBL-UA-True-Wireless-Flash-X-Manual-3
Credits: JBL

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch button on the right earbud one time.
  • Play the next song: Press the multifunction touch button on the right earbud two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • Mute or unmute the microphone: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the multifunction touch button on the right earbud for about 2 seconds.

How to Activate The TalkThru Mode?

To activate and deactivate the TalkThru mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud one time.

How to Activate The Ambient Aware Mode?

To activate and deactivate the Ambient mode in these earbuds, all you have to do is to press the multifunction touch button on the left earbud two times.

JBL-UA-True-Wireless-Flash-X-Manual-4
Credits: JBL

How to Control In Mono Mode?

  • Play or pause a song: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on any of the earbuds two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • Mute or unmute the microphone: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
JBL-UA-True-Wireless-Flash-X-Manual-5
Credits: JBL

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

JBL-UA-True-Wireless-Flash-X-Manual-6
Credits: JBL

How to Reset The Earbuds?

Step 1: Delete all “JBL UA True Wireless Flash X” pairing records on the connected device.

Step 2: Place both earbuds into the charging case and keep the lid open.

Step 3: Press and hold the multifunction touch button on the right earbud for about 2 seconds. After that, a blue light will start flashing, and the resetting will be done.

What Do The Lights Mean?

Earbuds

  • A blue light starts Flashing: The earbuds turn on.
  • A blue and red light flashing in the right earbud, and a blue light flashing slowly on the left one: The earbuds are paired with each other.
  • A blue light flashing slowly: The earbuds will be ready to pair with any device.
  • A red light on: The earbuds are charging.
  • Said red light turns off: The earbuds are fully charged.
  • A red light flashing: The earbuds have a low battery.
  • A blue light flashing while resetting: The earbuds are resetting.

Charging case

  • One light on: The case has a low battery.
  • One light on and one light flashing while charging: The case is charging.
  • All lights are on while charging: The case is fully charged.
JBL-UA-True-Wireless-Flash-X-Manual-7
Credits: Laptop Mag

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

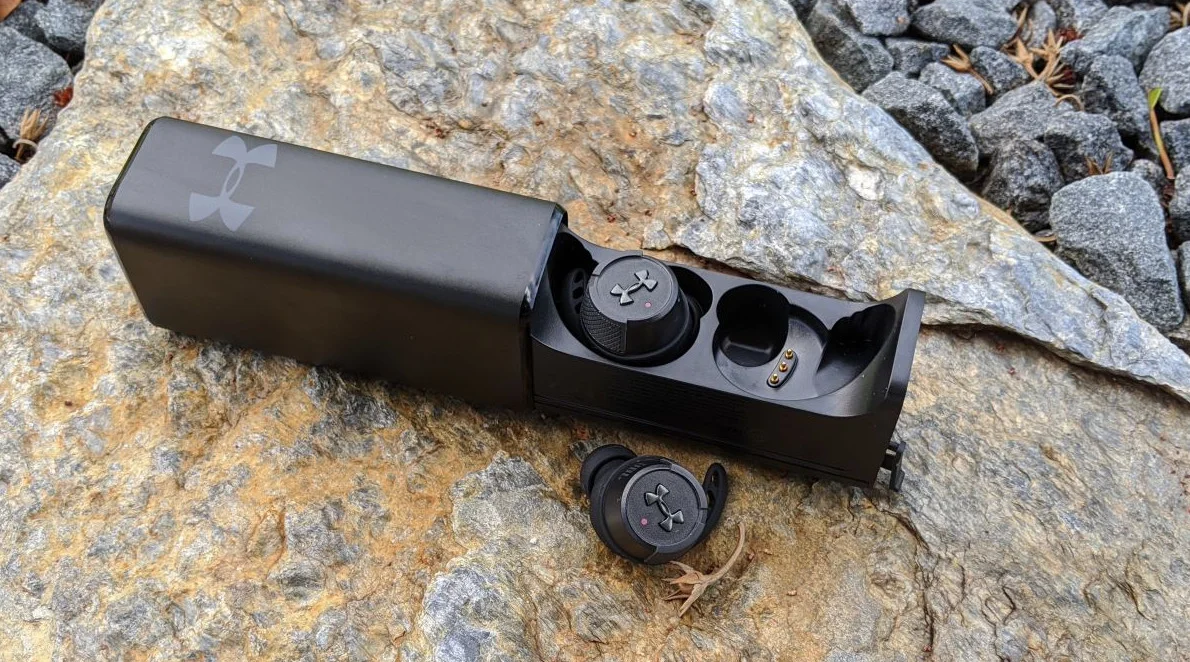

JBL-UA-True-Wireless-Flash-X-Manual-8
Credits: Laptop Mag

FAQs

Are the JBL UA True Wireless Flash X waterproof?

Yes, the JBL UA True Wireless Flash X are waterproof (IPX6 and up). They have a rating of IPX7, meaning that they not only are against water but are also protected against the effects of immersion.

Do the JBL UA True Wireless Flash X have a microphone?

Yes, the earbuds come with integrated microphones.

Do the JBL UA True Wireless Flash X have a low latency/gaming mode?

No. These earbuds don’t have a low latency/gaming mode.

Can the JBL UA True Wireless Flash X connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the JBL UA True Wireless Flash X noise-canceling?

No. These earbuds don’t come with noise-cancellation technology.

How to know when the JBL UA True Wireless Flash X are fully charged?

When the earbuds are charging, a light is on. When fully charged, said light turns off.

We hope you now know how to operate the earphone from the above JBL UA True Wireless Flash X manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
