LG TONE Free FP5 Manual | Pairing & Charging Instructions 2022

The LG TONE Free FP5 has Bluetooth 5.2, ANC, a battery life of about 8 hours + 22 hours using the charging case (with the ANC off) and about 5 hours + 13 hours using the charging case (with the ANC on), frequency ranges of 2402 MHz to 2480 MHz, A2DP and AVRCP codecs, and more. Learn how to use them with this new LG TONE Free FP5 Manual.

LG TONE Free FP5 Manual | This Is All You Need To Know!

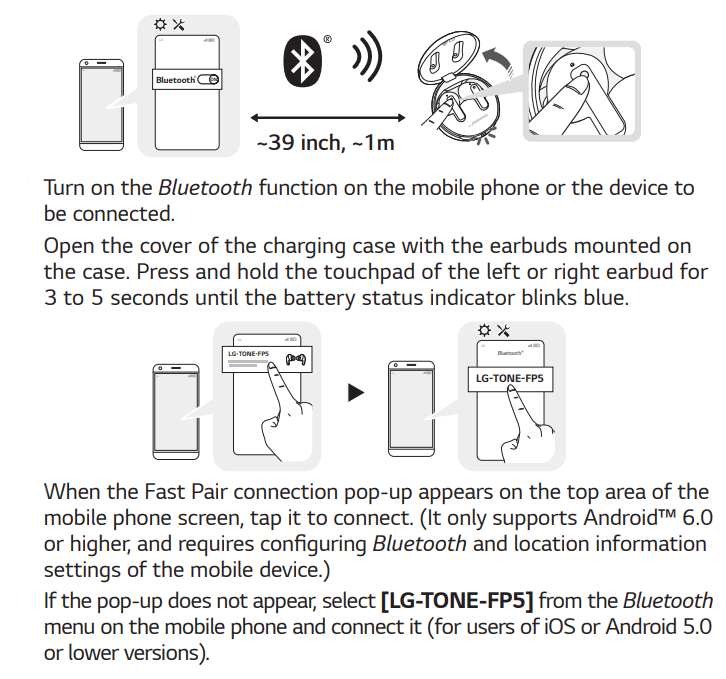

LG TONE Free FP5 Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 2: Press and hold the multifunction touch button on both earbuds for about 3 to 5 seconds. When a blue light starts flashing on the earbuds, that means that they will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “LG-TONE-FP5”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Step 6: Press and hold the multifunction touch button on both earbuds for about 3 to 5 seconds. When a blue light starts flashing on the earbuds, that means that they will be ready to pair with any device.

Step 7: Select “LG-TONE-FP5”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

LG TONE Free FP5 Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

LG TONE Free FP5 Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

How to Control? / How to Operate? – Instructions

• Play or pause music: Press the multifunction touch button on any of the earbuds one time.
• Turn the volume up: Press the multifunction touch button on the right earbud two times.
• Turn the volume down: Press the multifunction touch button on the left earbud two times.
• Play the next song: Press the multifunction touch button on any of the earbuds three times.
• Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• End a current call: Press the multifunction touch button on any of the earbuds two times.
• Put the current call on hold and answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• Finish a current call and change to an on-hold call: Press the multifunction touch button on any of the earbuds one time.
• Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds.

LG TONE Free FP5 Manual | How to Change Between ANC and Ambient Sound Modes?

To activate, deactivate and change between ANC and ambient sound mode in the LG TONE Free FP5, all you have to do is to press and hold the multifunction touch button on any of the earbuds.

LG TONE Free FP5 Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the LG TONE Free FP5, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

LG TONE Free FP5 Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

LG TONE Free FP5 Manual | LED Light Status

Earbuds

• A blue light flashing: The earbuds are ready to pair with any device.
• A red light on and off: The earbuds have 20% of battery or less.
• A yellow light on and off: The earbuds have between 20% and 80% of battery.
• A green light on and off: The earbuds have 80% of battery or more.
• A red light flashing: There was a problem while charging.
• A red light on while charging: The earbuds are charging.
• A green light on while charging: The earbuds are fully charged.

Charging case

• A red light on while charging: The case is charging.
• A green light on while charging: The case is fully charged.
• A red light on: The case has 20% of battery or less.
• A yellow light on: The case has between 20% and 80% of battery.
• A green light on: The case has 80% of battery or more.
• A red light flashing while resetting the earbuds: The earbuds are resetting.

LG TONE Free FP5 Manual | How to Reset?

Step 1: Delete all “LG-TONE-FP5” pairing information from the connected device.

Step 2: Place the earbuds into the charging case and keep the lid open.

Step 3: Press and hold the multifunction touch button on one of the earbuds for about 10 seconds, and a red light will start flashing on the charging case. After that, the resetting will be done.

A Guide To LG TONE Free FP5 APP

The LG TONE Free FP5 can be used with an application, called LG TONE Free. This application is available for iOS and Android devices.

When entering the application, you can see the connected device, as well as the battery of each of the earbuds. In addition to that, it has a complete menu, where you can see different user manuals and information about the earbuds, touchpad settings according to the user’s tastes, factory or custom equalizer settings, as well as the find my earbuds function.

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earphone from the above LG TONE Free FP5 Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
