Lypertek PurePlay Z3 2.0 Manual | Instructions & Troubleshooting

Aliexpress banner

The Lypertek PurePlay Z3 2.0 have the new Qualcomm chipset, PureControl app compatibility, Bluetooth 5.2, wireless charging, Ambient mode, cVc 8.0 audio technology, the amazing IPX7 waterproof certification, and more. Learn how to use them with this new Lypertek PurePlay Z3 2.0 Manual.

Lypertek PurePlay Z3 2.0 Manual | This Is All You Need To Know!

Lypertek PurePlay Z3 2.0 Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Place the earbuds into the charging case.

Step 2: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

When a blue light turns on, the earbuds will be ready to pair with any device.

Step 3: Turn on the Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “LYPERTEKS Z3”. If a password is needed, type “0000”.

Step 6: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Place the earbuds into the charging case.

Step 7: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

When a blue light turns on, the earbuds will be ready to pair with any device.

Step 8: Select “LYPERTEKS Z3”. If a password is needed, type “0000”.

Step 9: After that, the pairing will be done.

Lypertek-PurePlay-Z3-2.0-Manual-1
Credits: Lypertek

Lypertek PurePlay Z3 2.0 Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Lypertek PurePlay Z3 2.0 Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Lypertek-PurePlay-Z3-2.0-Manual-2

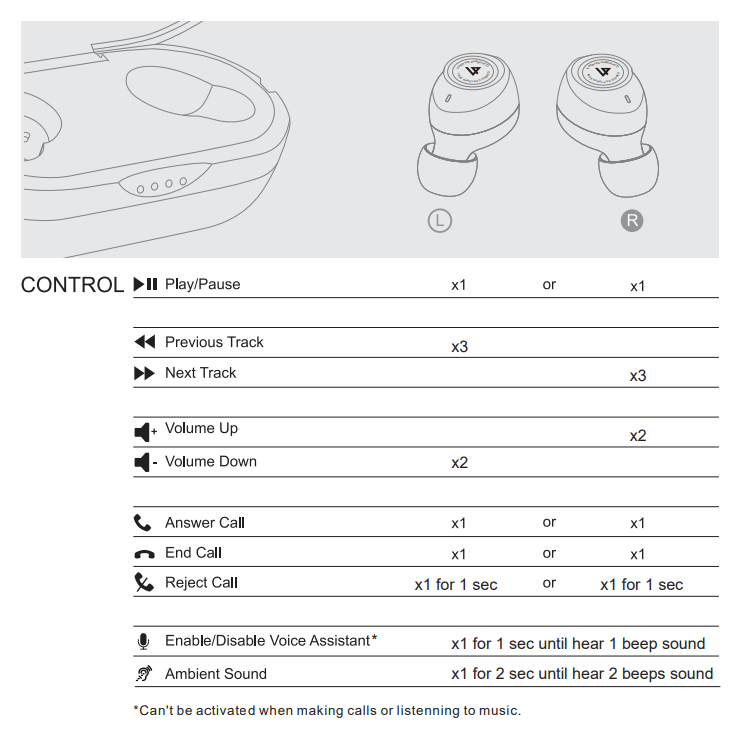

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Turn the volume up: Press the multifunction touch button on the right earbud two times.
  • Turn the volume down: Press the multifunction touch button on the left earbud two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 1 second.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 1 second, until a “beep” sound is heard.

Lypertek PurePlay Z3 2.0 Manual | How to Activate Ambient Mode?

To activate or deactivate the ambient mode in the Lypertek PurePlay Z3 2.0, all you have to do is to press and hold the multifunction touch button on any of the earbuds for about 2 seconds, until a “beep” sound is heard two times.

Lypertek-PurePlay-Z3-2.0-Manual-3
Credits: Lypertek

Lypertek PurePlay Z3 2.0 Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Lypertek PurePlay Z3 2.0, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Lypertek PurePlay Z3 2.0 Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is plug a 5V USB Type-C cable into the port on the charging case. It will start charging automatically.

Lypertek-PurePlay-Z3-2.0-Manual-4
Credits: Lypertek

Lypertek PurePlay Z3 2.0 Manual | How to Reset?

Step 1: Delete all “LYPERTEKS Z3” pairing records from the connected device.

Step 2: Place the earbuds into the charging case.

Step 3: Press and hold the multifunction touch button on both earbuds for about 5 seconds, until an orange light starts flashing. After that, the resetting will be done.

Lypertek PurePlay Z3 2.0 Manual | LED Light Status

Earbuds

  • A blue light on: The earbuds are ready to pair.
  • An orange light starts flashing: The earbuds are resetting.

Charging case

  • One light on: The case has between 0% and 25% of battery.
  • Two lights on: The case has between 25% and 50% of battery.
  • Three lights on: The case has between 50% and 75% of battery.
  • Four lights on: The case has between 75% and 100% of battery.
Lypertek-PurePlay-Z3-2.0-Manual-5

A Guide To Lypertek PurePlay Z3 2.0 APP

The Lypertek PurePlay Z3 2.0 can be used with an application, called PureControl. This application is available for iOS and Android devices.

In this application, not only will you be able to control the volume of the earbuds, but you will also be able to see the percentage of the battery. In addition to that, there are also features to activate or deactivate LDX audio, change the configuration in the equalizer, modify the controls of the earbuds, and others.

Lypertek-Tevi-Manual-7

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds as said in the pairing section above.

Lypertek-PurePlay-Z3-2.0-Manual-7
Credits: Scarbir

FAQs

Are the Lypertek PurePlay Z3 2.0 waterproof?

Yes, the Lypertek PurePlay Z3 2.0 are waterproof (IPX6 and up). They have a rating of IPX7, meaning that they not only are against water but they are also protected against the effects of immersion.

Do the Lypertek PurePlay Z3 2.0 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Lypertek PurePlay Z3 2.0 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the Lypertek PurePlay Z3 2.0 connect to PC and Laptop?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Lypertek PurePlay Z3 2.0 noise canceling?

No! These earbuds don’t come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Lypertek PurePlay Z3 2.0 Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
