NIPELL A66 Manual | All You Need To Know

The NIPELL A66 earbuds come with specs such as Bluetooth 5.2 with support for the HSP/HFP/A2DP/AVRCP profiles, about 6 to 8 hours of battery life on a single charge, SBC and AAC audio codec support, the IPX5 dust and sweat-proof certification, a working connection range of 10 meters, and much more. Learn how to use these earbuds using this NIPELL A66 manual!

If you are interested in purchasing these earbuds, you can easily do it using the Amazon online store. Also, in case you are interested in giving the original manual a look, you can do it here.

NIPELL A66 Specs Sheet

Model	NIPELL A66
Weight	Earbuds: Around 5 grams per earbud
Waterproof/IP ratings	IPX5
Bluetooth version	V5.2
Range/Distance	10 meters
Connectivity Port/Charging Cable	Type-C
Audio Decoding	SBC, AAC
Speaker frequency response	20Hz – 20kHz
Battery Life	Earbuds: Around 6 to 8 hours Charging case: Around 88 hours
Charging Time	Earbuds: Around 1 hour Charging case: Around 2 hours
App Support	No
Controls/Features	Play and pause a song, play the next and previous song, answer, end, and reject a call, turn the volume up and down, voice assistant
Accessories	Charging case, USB cable, user manual, ear tips
Price	Around 30 USD

NIPELL A66 Accessories

The earbuds come with the following accessories:

• Charging case.
• USB cable.
• User manual.
• Ear tips.

NIPELL A66 Manual | Pairing & Charging Instructions

How To Control These Earbuds?

NOTE: The multifunction touch button is placed on the middle part of the body of the earbuds.

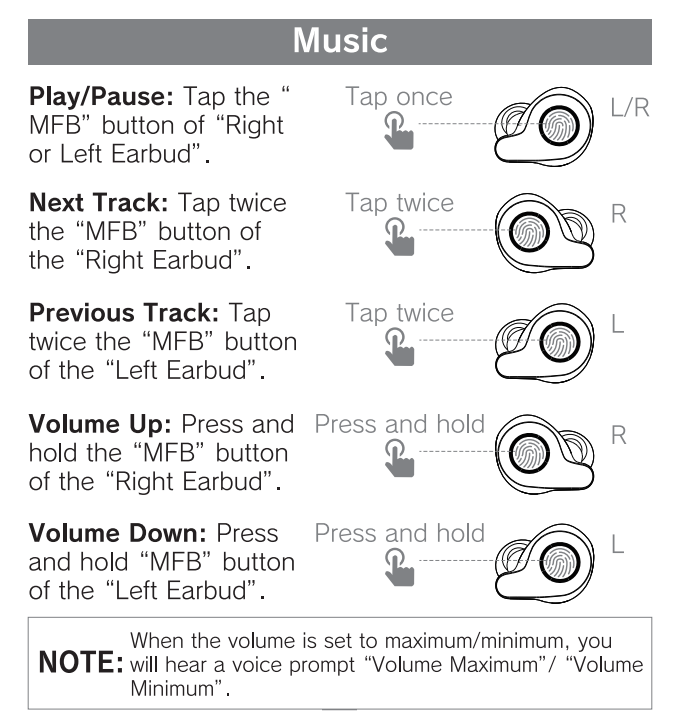

• Play and pause a song: Press the multifunction touch button on any of the earbuds one time.
• Play the next song: Press the multifunction touch button on the right earbud two times.
• Play the previous song: Press the multifunction touch button on the left earbud two times.
• Turn the volume up: Press and hold the multifunction touch button on the right earbud.
• Turn the volume down: Press and hold the multifunction touch button on the left earbud.

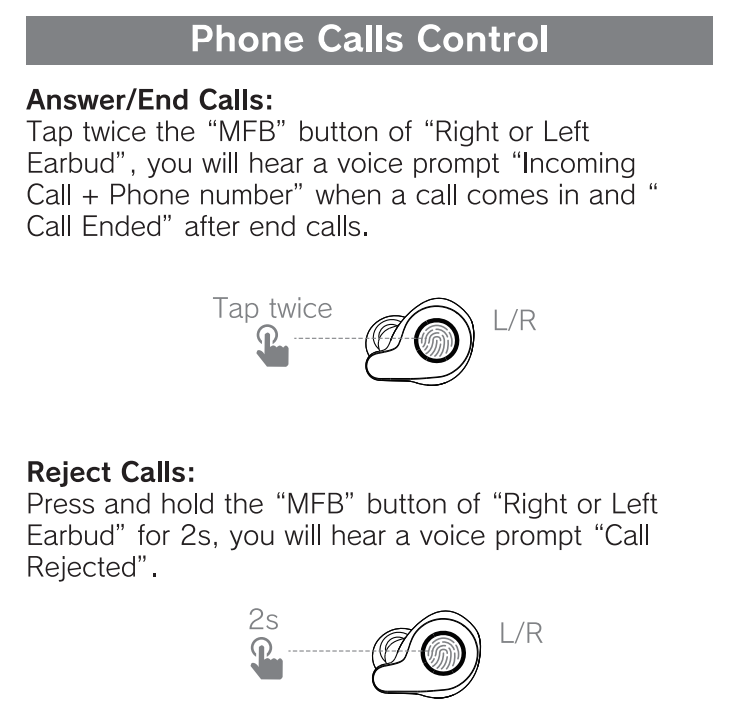

• Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
• End a current call: Press the multifunction touch button on any of the earbuds three times.
• Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.

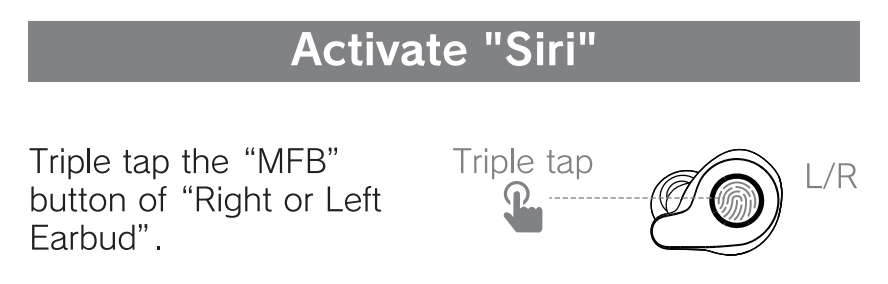

• Activate the voice assistant: Press the multifunction touch button on any of the earbuds three times.

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close its lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

• A green light flashes two times: The earbuds turn on.
• A blue light flashes two times: The earbuds turn off.
• A blue light on while on the case: The earbuds are charging.
• Said light turns off while on the case: The earbuds are fully charged.
• A blue light flashes slowly: The earbuds have a low battery level (around 10%).

Charging Case

• A 1 to 99 on the power display while charging: The case is charging.
• A 100 on the power display while charging: The case is fully charged.

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

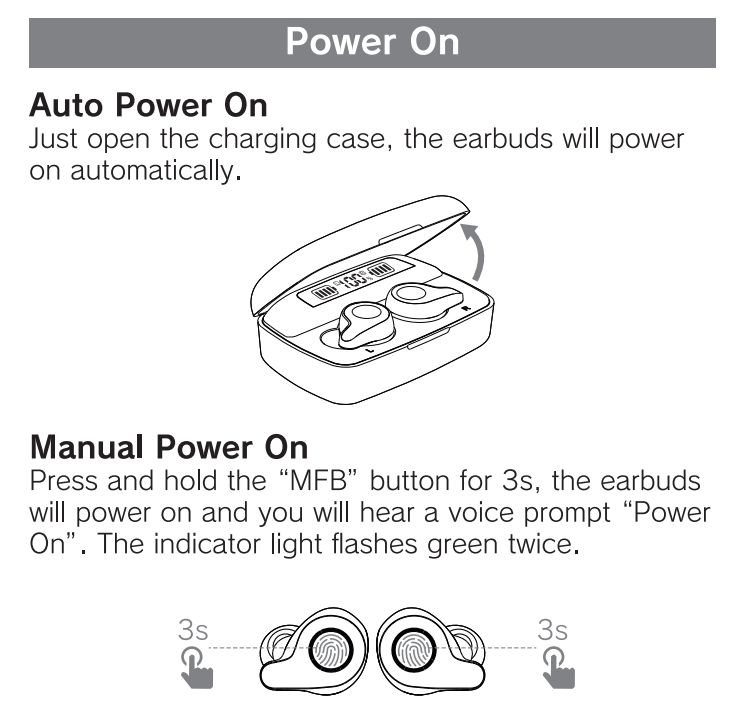

Turn On

Automatically: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, the “Power on” voice prompt will sound, a green light will flash two times, and the earbuds will turn on automatically.

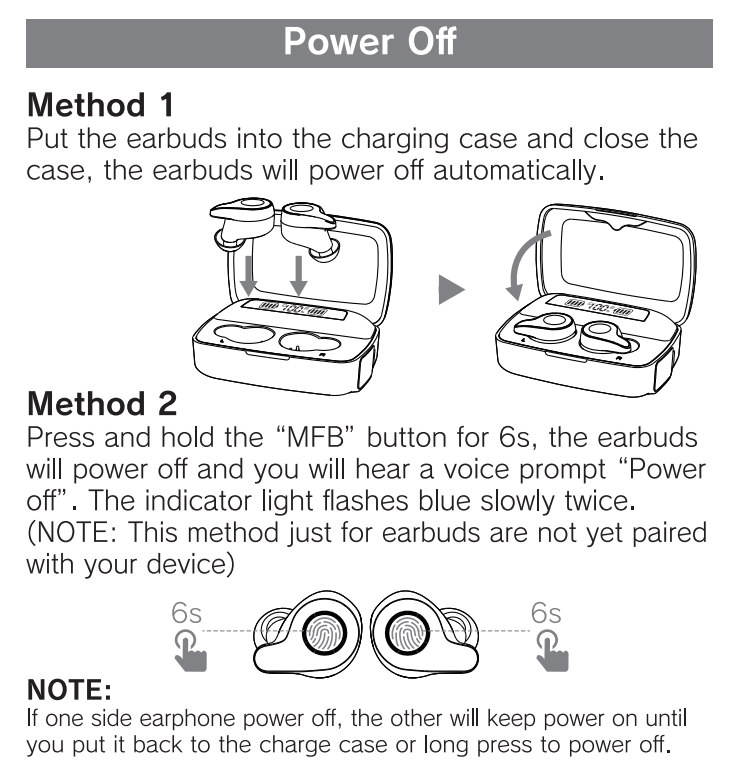

Turn Off

Automatically: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 6 seconds. After that, the “Power off” voice prompt will sound, a blue light will flash two times, and the earbuds will turn on automatically.

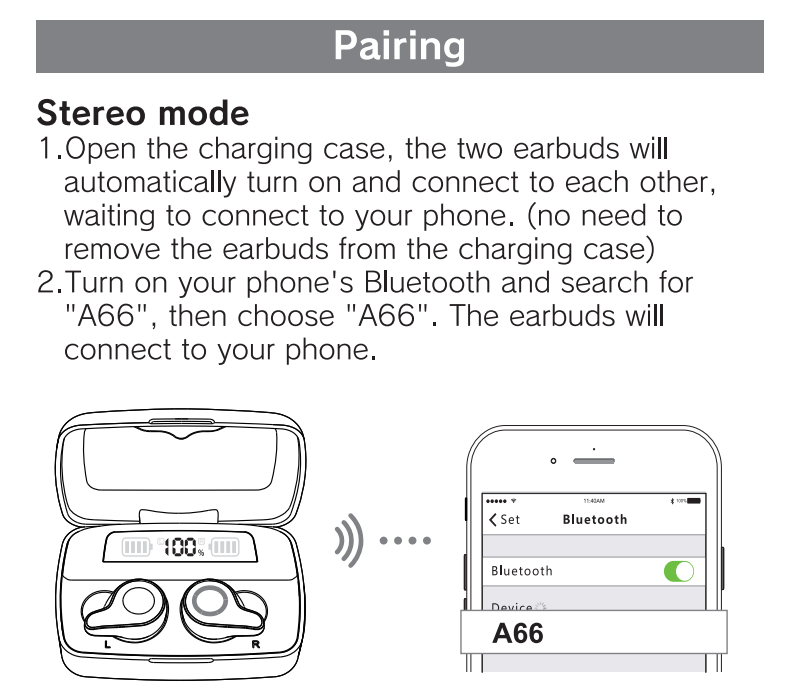

How To Pair The Earbuds? – Stereo Mode

To Android And iOS Devices

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will now be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the A66 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will now be ready to pair with any device.

Step 7: Select the A66 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

How To Pair The Earbuds? – Mono Mode

Step 1: Take one of the earbuds out of the case and close its lid.

Step 2: Turn on Bluetooth on the desired device.

Step 3: Search for a new device.

Step 4: Select the A66 earbud. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

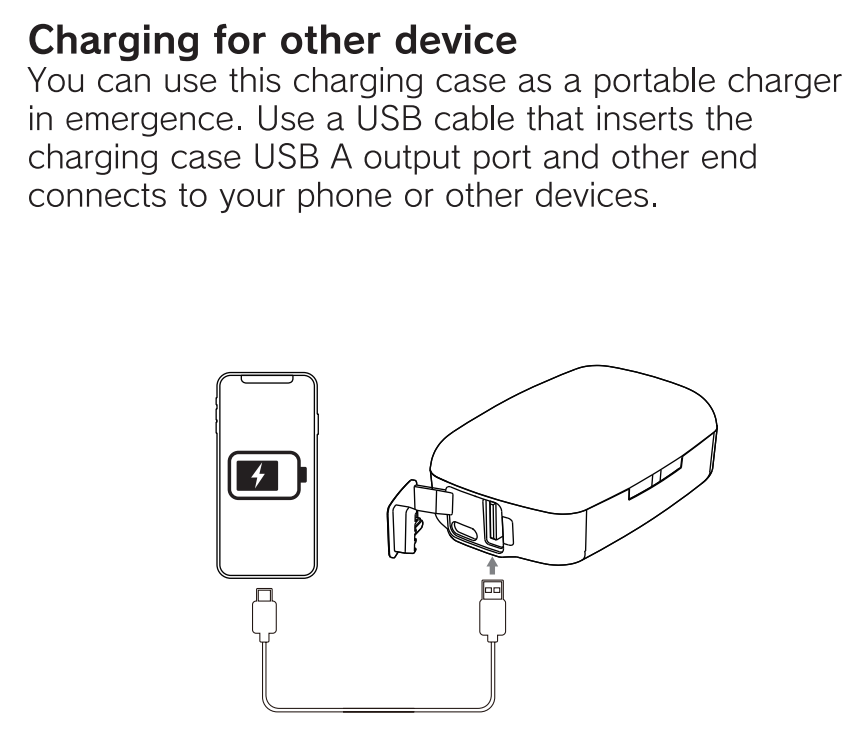

Charge A Device With The Case

The charging case can be used as a portable charger in case of emergency. All you have to do is to use a USB cable, inserting the USB-A output into the case and the other end to the desired device.

The Earbuds’ Voice Prompts

• Power on.
• Power off.
• Incoming call + phone number.
• Call ended.
• Call rejected.
• Volume maximum.
• Volume minimum.
• Low please charge.

Do These Earbuds Have An App?

No, these earbuds don’t come with app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earbuds from the above NIPELL A66 manual. Want to know anything about the earbuds? Do not hesitate to ask in the comment section below.
