Noise Buds VS104 Max Manual | Pairing & Charging Instructions

The Noise Buds VS104 Max earbuds come with specs such as Active Noise Cancellation up to 25dB and Transparency mode, Environmental Noise Reduction, up to 7 hours on a single charge and an additional 38 hours with the charging case, Bluetooth 5.3, Gaming mode up to 50ms, the IPX5 sweat and dust-proof certification, and much more. Learn how to use these earbuds using this Noise Buds VS104 Max manual!

In case you are interested in purchasing these earbuds, you can do so through the Noise online store and Amazon.

Noise Buds VS104 Max Specs Sheet

ModelNoise Buds VS104 Max
WeightEarbuds: 3.6 grams each
Charging case: 33 grams
Waterproof/IP ratings  IPX5
Bluetooth version          V5.3
Range/Distance10 meters
Connectivity Port/ Charging CableType-C
Audio Decoding               SBC
Driver  13mm dynamic
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: 7 hours
Charging case: 38 hours
Charging Time  Earbuds: About 30 minutes
Charging case: About 1.5 hours
App Support     No
Controls/Features         Play and pause a song, answer, end and reject a call, voice assistant, play the next and previous song, turn the volume up and down, gaming mode, ANC mode
Accessories       Charging case, user manual, warranty card, USB cable, silicone ear tips
Price20 USD

Noise Buds VS104 Max Accessories

The earbuds come with the following accessories:

  • Charging case.
  • User manual.
  • Warranty card.
  • USB cable.
  • Silicone ear tips.

Noise Buds VS104 Max Manual | Earbuds Pairing

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Turn Off

Automatically: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

How To Pair The Earbuds?

To Android And iOS Devices

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Noise Buds VS104 Max earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 7: Select the Noise Buds VS104 Max earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

Noise-Buds-VS104-Max-Manual-2

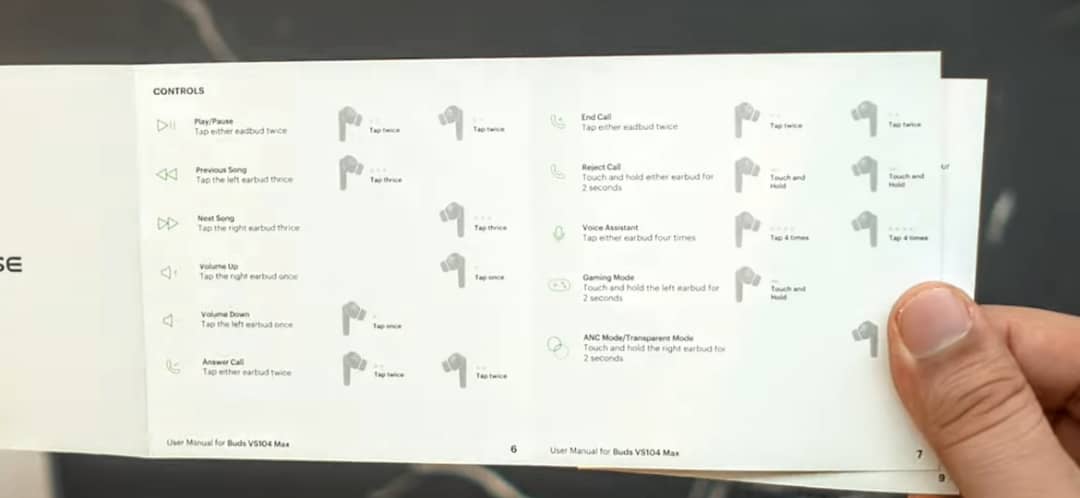

How To Control These Earbuds? – Stereo Mode

NOTE: The multifunction touch sensor is placed on the top outside part of the stem of the earbuds.

  • Play or pause a song: Press the multifunction touch sensor on any of the earbuds two times.
  • Play the next song: While listening to music, press the multifunction touch sensor on the right earbud three times.
  • Play the previous song: While listening to music, press the multifunction touch sensor on the left earbud three times.
  • Turn the volume up: Press the multifunction touch sensor on the right earbud one time.
  • Turn the volume down: Press the multifunction touch sensor on the left earbud one time.
  • Answer an incoming call: Press the multifunction touch sensor on any of the earbuds two times.
  • End a current call: Press the multifunction touch sensor on any of the earbuds two times.
  • Reject an incoming call: Press and hold the multifunction touch sensor on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press the multifunction touch sensor on any of the earbuds four times.
  • Activate Gaming mode: Press and hold the multifunction touch sensor on the left earbud for about 2 seconds.
  • Change between the ANC and Transparency mode: Press and hold the multifunction touch sensor on the left earbud for about 2 seconds.

How To Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Noise-Buds-VS104-Max-Manual-3
Credits: Indori Explorer

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close its lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

  • A light flashes couple of times: The earbuds have been reset.

Charging Case

  • Lights flashing while charging: The case is charging.
  • All lights on while charging: The case is fully charged.
Noise-Buds-VS104-Max-Manual-4

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Reset And Re-Pair These Earbuds?

NOTE: To ensure a good result, make sure that the earbuds are fully charged.

Step 1: Go to the device’s settings.

Step 2: Delete the Noise Buds VS104 Max earbuds from the devices’ Bluetooth list.

Step 3: Turn off Bluetooth on the device.

Step 4: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 5: Take the earbuds out of the charging case.

Step 6: Press and hold the multifunction touch sensor on any of the earbuds for about 10 seconds. This will reset the earbuds.

The “Factory reset successful” voice prompt will sound on the earbuds and a light will flash a couple of times, meaning that they have been reset.

Step 7: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Step 8: Turn on Bluetooth on the desired device.

Step 9: Search for a new device.

Step 10: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 11: Select the Noise Buds VS104 Max earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

Noise-Buds-VS104-Max-Manual-5

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Noise-Buds-VS104-Max-Manual-6

FAQs

Are the Noise Buds VS104 Max waterproof?

No, the Noise Buds VS104 Max are not waterproof (IPX6 and up). They have a rating of IPX5, which means they’re protected against some water projected from a nozzle.

Do the Noise Buds VS104 Max have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Noise Buds VS104 Max have a low latency/gaming mode?

Yes, these earbuds have a low latency/gaming mode.

Can the Noise Buds VS104 Max connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the Noise Buds VS104 Max noise-canceling?

Yes, these earbuds come with noise-cancellation technology.

We hope you now know how to operate the earbuds from the above Noise Buds VS104 Max manual! Want to know anything about the earphones? Do not hesitate to ask in the comments section.
