Raycon E25 Manual | Step-by-Step User Guide

Very recently we talked to you about all the features found in one of the most popular pairs of earbuds of the moment, the Raycon E25, and today we are going to show you the correct way in which they can be used. Welcome to this new Raycon E25 manual and step-by-step user guide!

In case you are interested in taking a look at the original manual, you can do it here.

Raycon E25 Specs Sheet

Model	Raycon E25
Weight	Earbuds: 4.2 grams each Charging case: 28 grams
Waterproof/IP ratings	IPX6
Bluetooth version	V5.0
Range/Distance	10 meters
Connectivity Port/ Charging Cable	Type-C
Audio Decoding	SBC, AAC
Speaker frequency response	20Hz – 20kHz
Battery Life	Earbuds: 6 hours Charging case: 24 hours
Charging Time	Earbuds: About 1 hour
App Support	No
Controls/Features	Play and pause a song, answer, end and reject a call, voice assistant, play the next and previous song, turn the volume up and down, gaming mode
Accessories	Charging case, user manual, USB cable, silicone ear tips
Price	30 USD

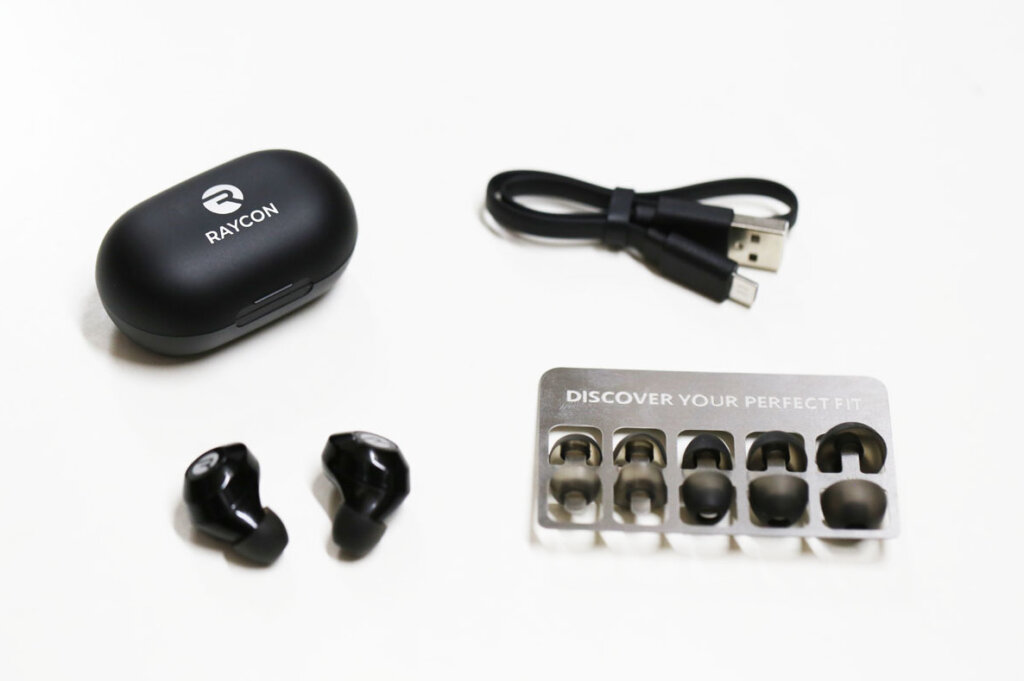

Raycon E25 Accessories

The earbuds come with the following accessories:

• Charging case.
• User manual.
• USB cable.
• Silicone ear tips.

Raycon E25 Manual | Guide & Troubleshooting

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Manually: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds. After that, the earbuds will turn on.

Turn Off

Automatically: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Manually: Press and hold the multifunction touch button on any of the earbuds for about 4 seconds. After that, the earbuds will turn off.

How To Pair The Earbuds?

To Android And iOS Devices

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Raycon E25 Earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

Step 7: Select the Raycon E25 Earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

How To Control These Earbuds? – Stereo Mode

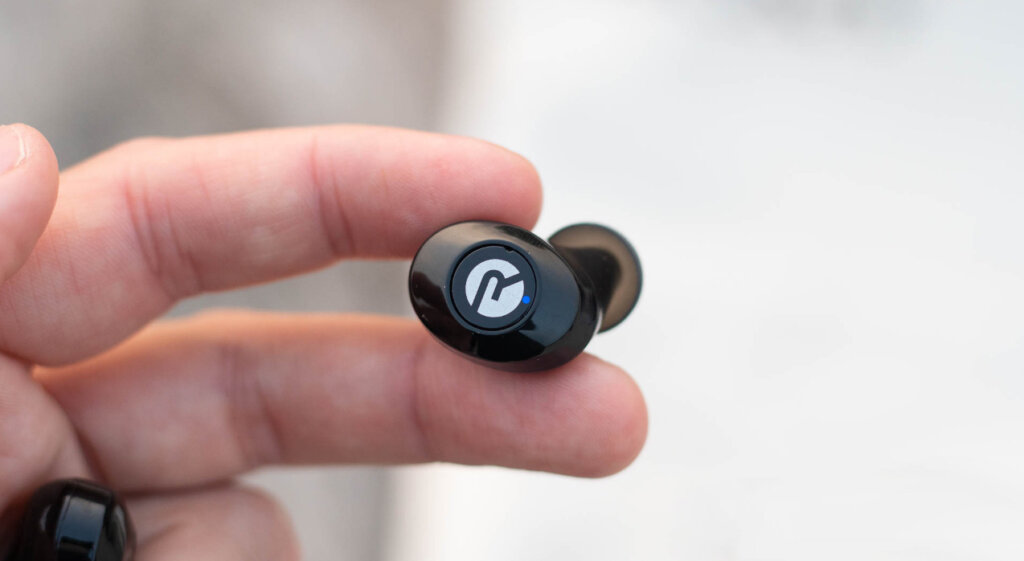

NOTE: The multifunction touch button is placed on the top circular part no the outside of the earbuds.

• Play or pause a song: Press the multifunction touch button on any of the earbuds one time.
• Play the next song: While listening to music, press the multifunction touch button on the right earbud two times.
• Play the previous song: While listening to music, press the multifunction touch button on the left earbud to times.
• Turn the volume up: Press the multifunction touch button on the right earbud three times.
• Turn the volume down: Press the multifunction touch button on the left earbud three times.
• Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• End a current call: Press the multifunction touch button on any of the earbuds one time.
• Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
• Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.

How To Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

• A red light on while on the charging case: The earbuds are charging.
• The red light turns blue and then off while on the charging case: The earbuds are fully charged.

Charging Case

• Red lights flashing while charging: The case is charging.
• Red lights on while charging: The case is fully charged.

How To Reset And Re-Pair These Earbuds?

NOTE: To ensure a good result, make sure that the earbuds are fully charged.

Step 1: Go to the device’s settings.

Step 2: Delete the Raycon E25 Earbuds from the devices’ Bluetooth list.

Step 3: Turn off Bluetooth on the device.

Step 4: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Step 5: Press and hold the multifunction touch button on both earbuds for about 30. This will reset the earbuds.

Step 6: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Step 7: Turn on Bluetooth on the desired device.

Step 8: Search for a new device.

Step 9: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Step 10: Select the Raycon E25 Earbuds. If a password is needed, type “0000”.

After that, the pairing will be done.

Do These Earbuds Have An App?

Sadly, these earbuds don’t come with a specialized app or app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earbuds from the above Raycon E25 manual! Want to know anything about the earphones? Do not hesitate to ask in the comments section.
