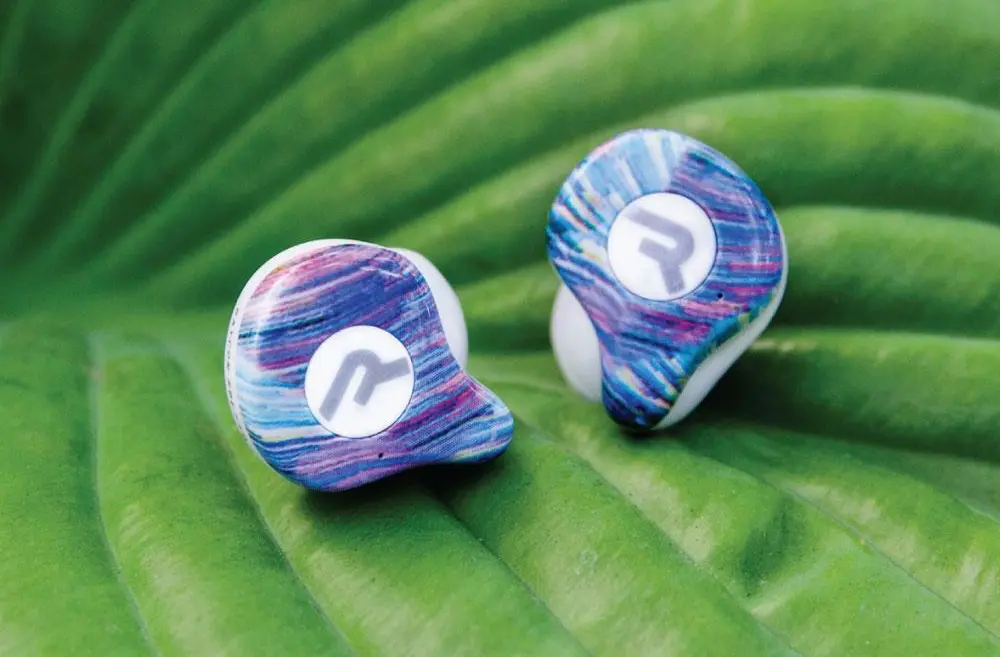

Wireless headphones are becoming more and more popular, and because of that, more and more are being released on the market. Among so many are the Raycon x90 Titan, an eye-catching release made by the popular brand Raycon. Today we are going to talk about them, as well as how to use them in this new Raycon x90 Titan Earbuds Manual!

Raycon x90 Titan Earbuds Manual | All You Need To Know!

Raycon x90 Titan Earbuds Manual – How to pair or connect?

  • Step 1: Open the upper cover of the charging case and the earbuds will automatically enter the Bluetooth pairing mode, and the buds’ indicator lights will flash white and blue alternately.
  • Step 2: Turn on the Bluetooth function in the Bluetooth device.
  • Step 3: Refresh the Bluetooth device listing.
  • Step 4: Select the paired audio device named “Raycon x90 Titan” to connect. After this, the indicator lights on the earbuds will go off after a successful pairing.

Raycon x90 Titan Earbuds Manual – How to charge?

Charging the earbuds

To charge the earbuds, all you have to do is put the buds in place in the charging case, and they will start charging automatically.

aliexpress ad banner 300 x 250

Charging the charging case

  • Step 1: To charge the charging case, all you have to do is to ensure your Qi wireless charging pad (purchased separately) is plugged into a power source.
  • Step 2: Place the charging case on top of the charging pad and ensure the bottom charger icon aligns with the coil on the pad.
  • Step 3: Once properly aligned, the LED lights on the back of the charging case should flash to indicate it is charging.

Raycon x90 Titan Earbuds Manual – How Long to Charge?

About charging times, the Raycon x90 Titan takes between 1.5 hours to be fully charged. The charging case, on the other hand, takes 1 hour to fully charge.

Raycon x90 Titan Earbuds Manual – LED light status

  • Charging the earbuds: The LED lights on both earbuds turn red and stay on.
  • Charging the charging case: The LED lights flash white.
  • Earbuds fully charged: The LED lights on both earbuds turn blue and then turn off.
  • Charging case fully charged: All-LED lights turn white and then turn off.
Raycon x90 Titan earbuds Manual boxing and design

Raycon x90 Titan Earbuds Manual – Controls Instruction

  • Play / pause music: Single press the multifunction button on any of the earbuds.
  • Answer incoming call / end call: Single-press the multifunction button on any of the earbuds.
  • Play the next song: Double-click the multifunction button on the right earbud.
  • Play the previous song: Double-click the multifunction button on the left earbud.
  • Volume +: Triple-click the multifunction button on the right earbud.
  • Volume -: Triple-click the multifunction button on the left earbud.
  • Activate voice assistant: Press and hold the multifunction button on any of the earbuds for 2 seconds.
  • Reject incoming calls: Press and hold the multifunction button on any of the earbuds for 2 seconds.
  • Power on: Press and hold the multifunction button on any of the earbuds for 2 seconds.
  • Power off: Press and hold the multifunction button on any of the earbuds for 4 seconds.

NOTE: to power off the earbuds, you must place them in the charging case.

Raycon x90 Titan Earbuds Manual – How to connect to PC?

  • Step 1: Disconnect the currently connected Bluetooth device, and then the earbuds will automatically enter the Bluetooth pairing mode.
  • Step 2: Put the left and right earbuds back into the charging case and keep the case open.
  • Step 3: Pair the earbuds as explained in “Connect the earbuds to a Bluetooth device”.

Raycon x90 Titan Earbuds Manual – How to Reset?

  • Step 1: Place both headphones in the charging case.
  • Step 2: Press and hold the power buttons of both earbuds for around 20 seconds until the lights start flashing.
  • Step 3: Headphones are now reset, so remove them from the charging case re-pair them to any device you want.
Raycon x90 Titan Manual - How to Reset?

Q&A

Are the Raycon X90 Titan waterproof?

No, Raycon X90 Titan aren’t waterproof. While you shouldn’t go swimming with them, they are water-resistant with IPX4 grade protection against weather and sweat.

Does the Raycon X90 Titan have a microphone?

Yes, the Raycon X90 Titan earbuds have a built-in microphone.

Raycon x90 Titan Earbuds Manual – Warnings

  1. Never dismantle or refit the product to avoid malfunction or fire hazards.
  2. Keep away from corrosive liquids to avoid damages to the product.
  3. Keep away from extreme ambient temperatures below -10C° or above 60°C.
  4. Keep away from children and pets.
  5. Never touch the earbuds with sharp objects, otherwise, it will easily cause scratches.
  6. Don’t use the product in thunderstorm weather to avoid malfunction or electric shock.
  7. If it has not been used for more than a month, please charge and maintain it in time to ensure that it is safe.

We hope you now know how to operate the earphone from the above Raycon x90 Titan Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
