Sony WF-C500 Manual | Pairing & Troubleshooting

The Sony WF-C500 earbuds have an amazing battery life of 10 hours + 10 hours using the charging case, a dynamic driver of 5.8mm, the IPX4 dustproof, splash and sweat-resistant certification, A2DP, AVRCP, HFP, HSP codecs, and much more. Learn how to use them with this new Sony WF-C500 Manual.

If you are interested in purchasing these earbuds, you can easily do it using the Amazon official website. Also, if you want to give the original manual a look, you can do it here.

Sony WF-C500 Specs Sheet

ModelSony WF-C500
WeightEarbuds: 5.4 grams each
Waterproof/IP ratings  IPX4
Bluetooth version          V5.0
Range/Distance10 meters
Driver5.8mm
Audio DecodingSBC, AAC
Connectivity Port/Charging CableType-C
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: 10 hours
Charging case: 10 hours
Charging Time  Earbuds: About 2 hours
App Support     Yes, Sony | Headphones Connect
Controls/Features         Play or pause music, skip to the beginning of the next song, skip to the beginning of the previous song (or the current track during playback), turn the volume up and down, voice assistant, cancel an outgoing call, change a call device back and forth between the earbuds and the connected device, answer, end, and reject a call
Accessories       Charging case, user manual, USB cable, ear tips
Price75 USD

Sony WF-C500 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • User manual.
  • USB cable.
  • Ear tips.
sony-wf-c500-manual0-1
Credits: RTINGS

Sony WF-C500 Manual | Everything You Need To Know!

How To Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically. The “Power on” voice prompt will sound and a blue light will start flashing.

NOTE: If the earbuds don’t turn on automatically, then press the multifunction touch button on both earbuds for about 2 seconds. After that, the earbuds will turn on. The “Power on” voice prompt will sound and a blue light will start flashing.

Step 2: Press and hold the multifunction touch button on both earbuds for 5 seconds, so they turn into pairing mode. The “Bluetooth pairing” voice prompt will sound, and a blue light will flash two times in a row.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “WF-C500”. If a password is needed, type “0000”. The “Bluetooth connected” voice prompt will sound

After that, the pairing will be done.

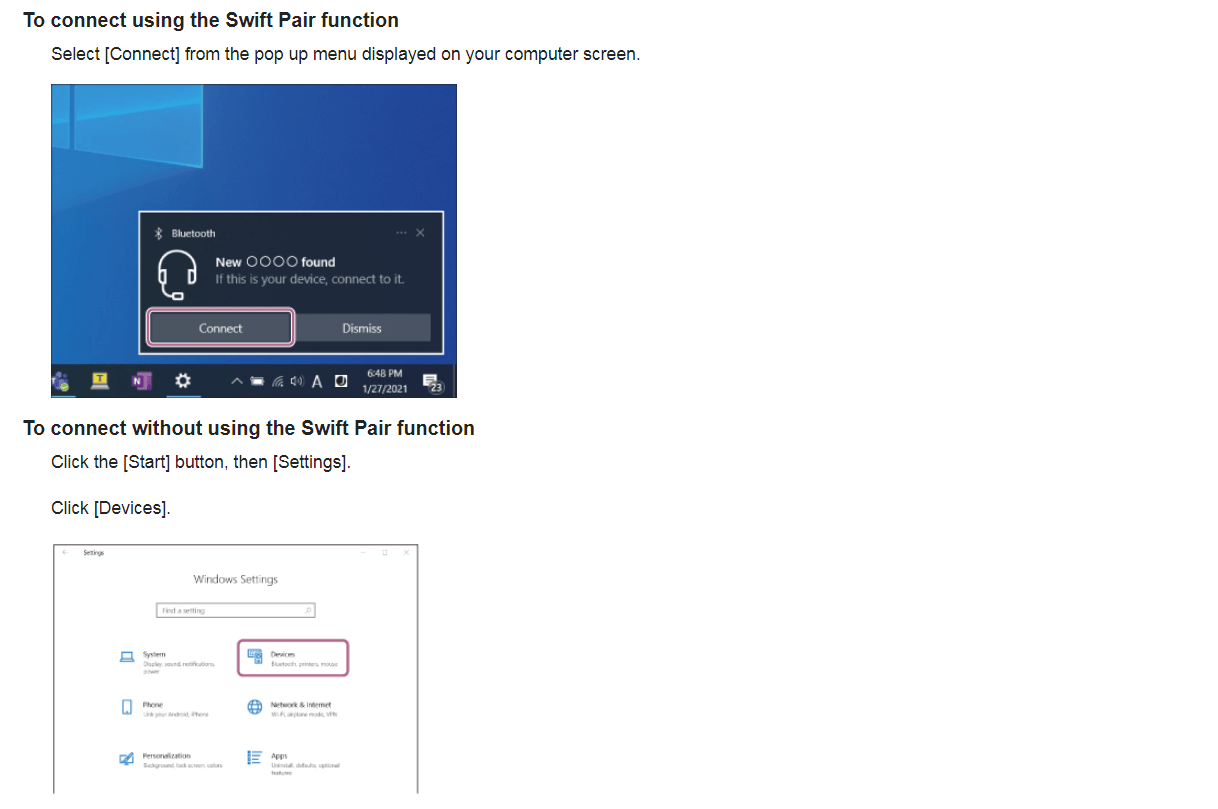

To PC (Windows)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically. The “Power on” voice prompt will sound and a blue light will start flashing.

NOTE: If the earbuds don’t turn on automatically, then press the multifunction touch button on both earbuds for about 2 seconds. After that, the earbuds will turn on. The “Power on” voice prompt will sound and a blue light will start flashing.

Step 7: Press and hold the multifunction touch button on both earbuds for 5 seconds, so they turn into pairing mode. The “Bluetooth pairing” voice prompt will sound, and a blue light will flash two times in a row.

Step 8: Select “WF-C500”. If a password is needed, type “0000”. The “Bluetooth connected” voice prompt will sound.

After that, the pairing will be done.

How To Wear These Earbuds?

Turn on

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically. The “Power on” voice prompt will sound and a blue light will start flashing.

Manually: Press the multifunction touch button on both earbuds for about 2 seconds. After that, the earbuds will turn on. The “Power on” voice prompt will sound and a blue light will start flashing.

Turn off

Automatically: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically. The “Power off ” voice prompt will sound.

How To Turn On And Off?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Control? / How to Operate? – Instructions

NOTE: The multifunction touch button is placed on the top circular part of the body of the earbuds.

  • Play or pause music: Press the multifunction touch button on the right earbud one time.
  • Skip to the beginning of the next song: Press the multifunction touch button on the right earbud two times quickly.
  • Skip to the beginning of the previous song (or the current track during playback): Press the multifunction touch button on the right earbud three times quickly.
  • Turn the volume up: Press the multifunction touch button on the left earbud.
  • Turn the volume down: Press and hold the multifunction touch button on the left earbud.
sony-wf-c500-manual0-5

Calls With The HFP Supported Profile

  • Activate the voice assistant: Press and hold the multifunction touch button on the right earbud for about 2 seconds.
  • Cancel an outgoing call: Press the multifunction touch button on any of the earbuds two times.
  • Change a call device back and forth between the earbuds and the connected device: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Change a call device back and forth between the earbuds and the connected device: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
sony-wf-c500-manual0-6

Calls With The HSP Supported Profile

  • Cancel an outgoing call: Press the multifunction touch button on any of the earbuds one time.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
sony-wf-c500-manual0-7

How To Activate The Mono Mode?

To activate or deactivate the mono mode in the Sony WF-1000XM4, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

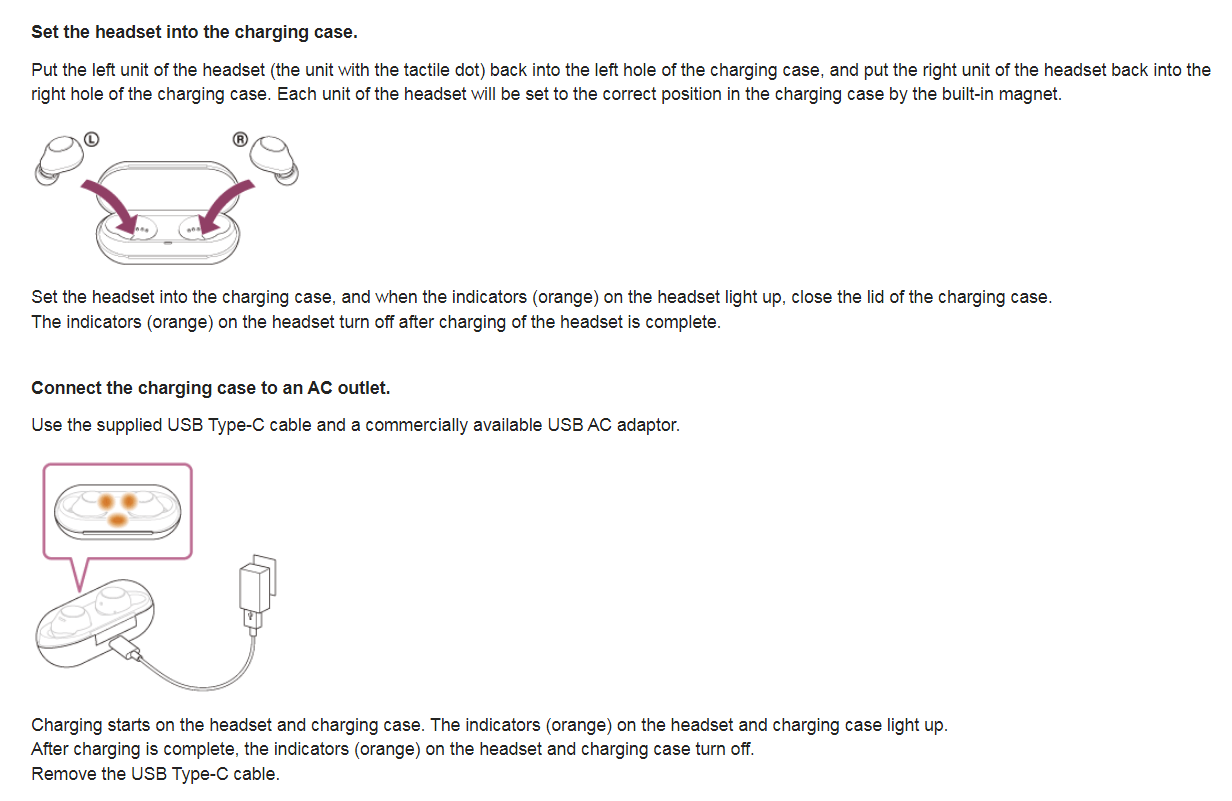

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

sony-wf-c500-manual0-8

The Earbuds’ Voice Prompts

  • Power on: The earbuds turn on.
  • Power off: The earbuds turn off.
  • Bluetooth pairing: The earbuds are now in pairing mode.
  • Bluetooth connected: The earbuds are connected to the device.
  • Bluetooth disconnected: The earbuds are now disconnected from the device.
  • Battery about XX% (The “XX” value indicates the approximate remaining charge. Use it as a rough estimate).
  • Battery fully charged: The earbuds are fully charged.
  • Low battery, please recharge headset: The earbuds have a low battery level.
  • Please recharge headset. Power off: The earbuds have no battery left.
sony-wf-c500-manual0-9

How To Reset These Earbuds?

If the earbuds can’t be turned on or cannot be operated even when are turned on, reset them. Reset one of the earbuds at a time.

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically. The “Power on” voice prompt will sound and a blue light will start flashing.

Step 2: Press the multifunction touch button on the left earbud for about 20 seconds. In about 15 seconds, an orange light on the left earbud will start flashing slowly for about 5 seconds. Keep pressing and holding the button.

Step 3: Check that the indicator turns off and then release your finger. The left unit of the headset will be reset and restarted. Make sure that a blue light starts flashing twice.

Step 4: Press the multifunction touch button on the right earbud for about 20 seconds. In about 15 seconds, an orange light on the right earbud will start flashing slowly for about 5 seconds. Keep pressing and holding the button.

Step 5: Check that the indicator turns off and then release your finger. The left unit of the headset will be reset and restarted. Make sure that a blue light starts flashing twice.

The device registration (pairing) information and other settings are retained. If the earbuds do not operate correctly even after resetting, initialize the headset to restore factory settings.

Initializing the headset to restore factory settings

If the earbuds do not operate correctly even after resetting, initialize the headset.

Step 1: Delete all pairing information about the earbuds on the connected device.

Step 2: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically. The “Power on” voice prompt will sound and a blue light will start flashing.

Step 3: Press the multifunction touch button on both earbuds for about 15 seconds. A blue light will flash two times in a row, and then it will change to a flashing orange light.

Step 4: Release your fingers within 5 seconds after the indicators start flashing. The orange lights will stay on.

Step 5: Press the multifunction touch button on both earbuds for about 10 seconds after the lights stay on. After a few seconds, a blue light will flash on the earbuds four times.

This operation resets volume settings, etc. to the factory settings, and deletes all pairing information. If the earbuds don’t operate correctly even after initializing, consult your nearest Sony dealer.

A Guide To Sony WF-C500 APP

The Sony WF-C500 earbuds have an application specially made for them, and it is the Sony | Headphones Connect app, which is available on Play Store and App Store.

Right when you open the application, you will have the possibility to add any device you want. After doing that, you can enter the application as such, which has two parts: Headphones and Information. In “Information”, you will find general information about Sony products, while in “Headphones”, you will find three points:

  • Status: In this first part, you can control the volume of the earbuds, as well as pause, skip or rewind the song or video that is being played.
  • Sound: In this second part, some features of the earbuds can be customized, such as noise-canceling for calls and ambient sound control.
  • System: Finally, in this third part, you can change the functions of the earbuds, as well as notifications and software updates, which are done by the application itself.

What Does The Lights Mean?

Earbuds

  • A blue light flashing: The earbuds turn on.
  • A blue light flashes two times in a row: The earbuds are now in pairing mode.
  • An orange light while on the charging case: The earbuds are charging.
  • An orange light flashing slowly for about 5 seconds on the left earbud while resetting: The earbud is resetting.
  • The orange light turns off on the left earbud while resetting: The resetting is done.
  • An orange light flashing slowly for about 5 seconds on the right earbud while resetting: The earbud is resetting.
  • The orange light turns off on the right earbud while resetting: The resetting is done.
  • A blue light will flash two times in a row, and then it will change to a flashing orange light while initializing: The earbuds are initializing.
  • An orange light stays on while initializing: The earbuds are initializing.
  • A blue light flashing 4 seconds while initializing: The earbuds are initializing.

Charging case

  • An orange light while charging: The case is charging.
  • An orange light flashing for about 15 seconds when the earbuds are taken out: The case has between 30% and 5% of battery.
  • An orange light turns off immediately or doesn’t turn on when the earbuds are taken out: The case has about 5% of battery.
sony-wf-c500-manual0-12

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Sony-WF-C500-Manual-5
Credits: ComputerHoy.com

FAQs

Are Sony WF-C500 waterproof?

No, they are not waterproof (IPX6). The Sony WF-C500 have the IPX4 certification, which means they’re dustproof, splash and sweat-resistant.

Does Sony WF-C500 have a microphone?

Yes, the Sony WF-C500 have integrated microphones.

Do Sony WF-C500 have low latency/gaming mode?

No, the Sony WF-C500 don’t have a low latency/gaming mode.

Can Sony WF-C500 connect to PC and Laptop?

Yes, the Sony WF-C500 can connect to PCs, laptops.

We hope you now know how to operate the earbuds from the above Sony WF-C500 Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
