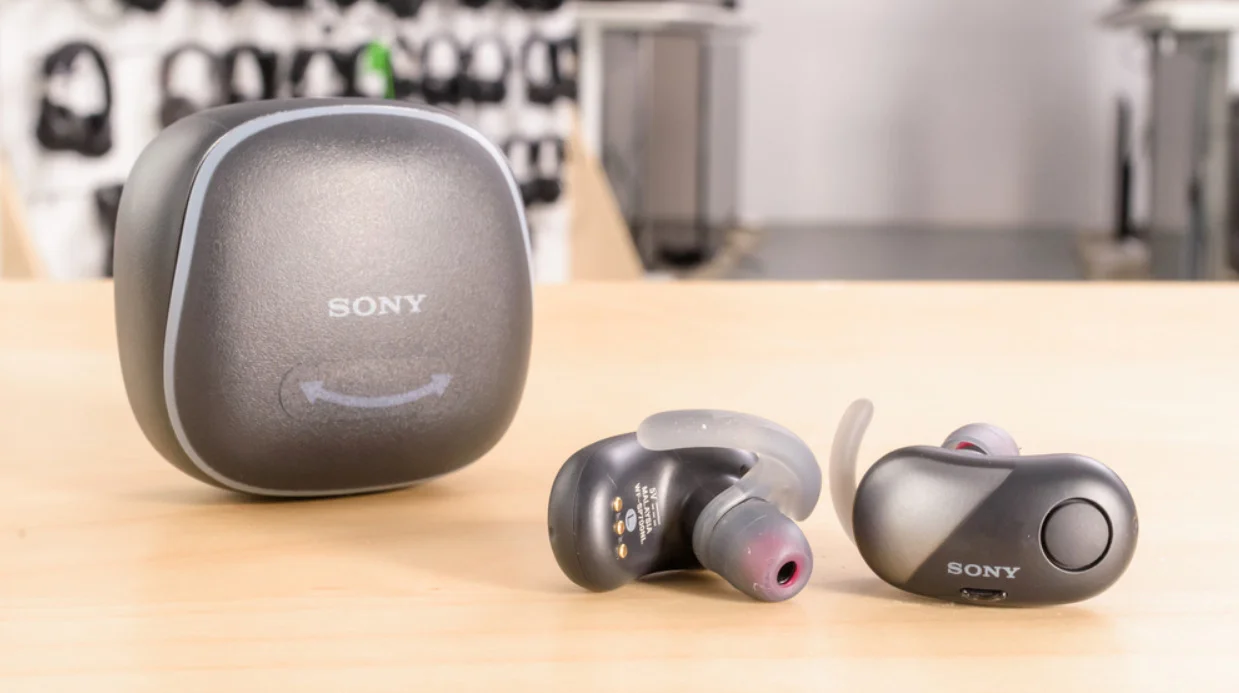

Sony-WF-SP700N-Manual-17

Sony WF-SP700N Manual | How To Pair These Earbuds?

The Sony WF-SP700N come with specs such as 6mm dome-type drivers, NFC support on the charging case, Bluetooth 4.1 with a frequency response of 20Hz – 20,000Hz and 10 meters of working range, 3 hours of battery life + 8 hours using the charging case, Noise Cancelling support, the IPX4 dust, and sweat-proof certification, and much more. Learn how to use these earbuds using this manual!

Sony WF-SP700N Manual | This Is How They Work

How to Pair The Earbuds?

To an Android Device

Step 1: Place the earbuds into the charging case. Insert the right and left earbuds until they click and make sure that the units are locked in the charging case.

Step 2: Take the left earbud out of the charging case. After that, a “Power On” voice prompt will sound, a blue light will flash two times, and the earbud will turn on automatically. Also, you can press and hold the power button on said earbud for about 2 seconds.

Step 3: Press and hold the multifunction touch button on said earbud for about 7 seconds, until the “Bluetooth pairing” voice prompt sounds and a red and blue lights start flashing alternately, meaning that it will now be ready to pair with any device.

Step 4: Unlock the desired device.

Step 5: Turn on Bluetooth on the desired device.

Step 6: Go to the device’s Bluetooth settings.

Step 7: Select the “WF-SP700N” earbuds. If a password is needed, type “0000”. After that, the “Bluetooth connected” voice will sound, a blue light will flash quickly for 5 seconds, and when it starts flashing with 5-second intervals, the pairing will be done.

Step 8: Take the right earbud out of the charging case. It will automatically pair to the left earbud and the device.

To an iOS Device

Step 1: Place the earbuds into the charging case. Insert the right and left earbuds until they click and make sure that the units are locked in the charging case.

Step 2: Take the left earbud out of the charging case. After that, a “Power On” voice prompt will sound, a blue light will flash two times, and the earbud will turn on automatically. Also, you can press and hold the power button on said earbud for about 2 seconds.

Step 3: Press and hold the multifunction touch button on said earbud for about 7 seconds, until the “Bluetooth pairing” voice prompt sounds and a red and blue lights start flashing alternately, meaning that it will now be ready to pair with any device.

Step 4: Unlock the desired device.

Step 5: Turn on Bluetooth on the desired device.

Step 6: Go to the device’s Bluetooth settings.

Step 7: Select the “WF-SP700N” earbuds. If a password is needed, type “0000”. After that, the “Bluetooth connected” voice will sound, a blue light will flash quickly for 5 seconds, and when it starts flashing with 5-second intervals, the pairing will be done.

Step 8: Take the right earbud out of the charging case. It will automatically pair to the left earbud and the device.

To PC (Windows)

Step 1: Place the earbuds into the charging case. Insert the right and left earbuds until they click and make sure that the units are locked in the charging case.

Step 2: Take the left earbud out of the charging case. After that, a “Power On” voice prompt will sound, a blue light will flash two times, and the earbud will turn on automatically. Also, you can press and hold the power button on said earbud for about 2 seconds.

Step 3: Press and hold the multifunction touch button on said earbud for about 7 seconds, until the “Bluetooth pairing” voice prompt sounds and a red and blue lights start flashing alternately, meaning that it will now be ready to pair with any device

Step 4: Turn on Bluetooth on the desired device.

Step 5: Go to the settings.

Step 6: Go to “Bluetooth and other devices”.

Step 7: Click on “Add device”.

Step 8: Select the “WF-SP700N” earbuds. If a password is needed, type “0000”. After that, the “Bluetooth connected” voice will sound, a blue light will flash quickly for 5 seconds, and when it starts flashing with 5-second intervals, the pairing will be done.

Step 9: Take the right earbud out of the charging case. It will automatically pair to the left earbud and the device.

Sony-WF-SP700N-Manual-3

How to Pair The Earbuds Using NFC?

To Android 4.1 Or Later Devices

Step 1: Unlock the desired device.

Step 2: Select the Settings.

Step 3: Select More.

Step 4: Set the NFC function on.

Step 5: Open the lid of the charging case and take the earbuds out. After that, a “Power On” voice prompt will sound, a blue light will flash two times, and the earbuds will turn on automatically. Also, you can press and hold the power button on both earbuds for about 2 seconds.

Step 6: Place the smartphone on the N-Mark at the back side of the charging case. Keep touching the smartphone with the charging case until the smartphone reacts.

Step 7: Follow the on-screen instructions to complete the pairing and connection.

Step 8: Select the “WF-SP700N” earbuds. If a password is needed, type “0000”. After that, the “Bluetooth connected” voice will sound, a blue light will flash quickly for 5 seconds, and when it starts flashing with 5-second intervals, the pairing will be done.

Sony-WF-SP700N-Manual-4
Credits: Sony

How to Disconnect The Earbuds With NFC?

Step 1: Unlock the desired device.

Step 2: Place the smartphone on the N-Mark at the back side of the charging case. A “Bluetooth disconnected” voice prompt will sound on the earbuds and the process will be done.

Sony-WF-SP700N-Manual-5
Credits: Sony

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a “Power On” voice prompt will sound, a blue light will flash two times, and the earbuds will turn on automatically. Also, you can press and hold the power button on both earbuds for about 2 seconds.

Turn off: Place the earbuds into the charging case. After that, a “Power Off” voice prompt will sound, a blue light will stay on the earbuds for 2 seconds, and the earbuds will turn off automatically. Also, you can press and hold the multifunction touch button on the left earbud for about 5 seconds.

How to Control? / How to Operate? – Instructions

  • Play or pause a song: Press the multifunction touch button on the right earbud one time.
  • Play the next song: Press the multifunction touch button on the right earbud two times.
  • Play the previous song: Press the multifunction touch button on the right earbud three times.
  • Fast-forward to a song: Press once, and then press and hold the multifunction touch button on the right earbud.
  • Fast-reverse to a song: Press twice, and then press and hold the multifunction touch button on the right earbud.
Sony-WF-SP700N-Manual-7
Credits: Sony

How to Use The Noise Canceling And Ambient Sound Modes?

Press the power button on the left earbud one time. Each time you press the button, the function is switched as follows:

  • Ambient Sound mode: ON (The “Ambient sound” voice prompt will sound on the earbuds).
  • Noise Canceling and Ambient Sound modes: OFF (The “Off” voice prompt will sound on the earbuds).
  • Noise Canceling mode: ON (The “Noise canceling” voice prompt will sound on the earbuds).

NOTE: The noise canceling mode is turned on automatically with the earbuds.

Sony-WF-SP700N-Manual-8
Credits: Sony

How to Activate The Quick Sound Setting Mode?

Step 1: Pair the earbuds with a device.

Step 2: Place the earbuds into the ear canals.

Step 3: Play a song or a video on the connected device.

Step 4: Press the power button on the left earbud two times. This will turn the Quick Sound Setting on (The “Quick sound settings” voice prompt will sound on the earbuds).

To turn it off, press the power button on the left earbud two times again (The “Off” voice prompt will sound on the earbuds).

Sony-WF-SP700N-Manual-9
Credits: Sony

How to Control Using The HFP Profile?

  • Start the voice dial function of the device: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Cancel an outgoing call: Press the multifunction touch button on the right earbud one time.
  • Change the call between the earbuds and the connected device: Press and hold the multifunction touch button on the right earbud for about 2 seconds (During an outgoing call).
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
  • Change the call between the earbuds and the connected device: Press and hold the multifunction touch button on the right earbud for about 2 seconds.

How to Control Using The HFP Profile?

  • Cancel an outgoing call: Press the multifunction touch button on the right earbud one time.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a current call: Press the multifunction touch button on any of the earbuds one time.
Sony-WF-SP700N-Manual-10
Credits: Sony

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Sony-WF-SP700N-Manual-11
Credits: Sony

How to Reset The Earbuds?

If the earbuds can’t be turned on, or they can’t be operated even when turned on, reset the earbuds.

Step 1: Place the earbuds into the charging case and keep the lid open.

Step 2: Press and hold the side button on both earbuds for about 7 to 10 seconds, until a red light turns off. After that, the resetting will be done.

NOTE: Pairing information and other settings are not deleted by this operation.

If the earbuds don’t work even after resetting them, then try to restore the factory settings.

Sony-WF-SP700N-Manual-12
Credits: Sony

How to Restore The Factory Settings?

Step 1: Remove the earbuds from the charging case.

Step 2: Press and hold the multifunction touch button on the left earbud for about 5 seconds. After that, a “Power Off” voice prompt will sound, a blue light will stay on the earbuds for 2 seconds, and the earbuds will turn off.

Step 3: Press and hold the multifunction touch button on both earbuds for more than 15 seconds.

Step 4: After that, the red light on the earbuds goes into a flashing state when a blue light flashes 4 times. This means that the earbuds are restored to factory settings.

Step 5: Delete all “WF-SP700N” earbuds pairing information from the connected device.

Sony-WF-SP700N-Manual-13
Credits: Sony

The Earbuds’ Voice Prompts

  • Power on: The earbuds turn on.
  • Power off: The earbuds turn off.
  • Bluetooth pairing: The earbuds are pairing with the device.
  • Bluetooth connected: The earbuds are now paired with the device.
  • Bluetooth disconnected: The earbuds couldn’t pair with the device.
  • Please recharge headset: The earbuds have a really low battery.
  • Battery level low: The earbuds/case have a low battery.
  • Battery level medium: The earbuds/case have a medium battery.
  • Battery level high: The earbuds/case have a high battery.
  • Noise canceling: The noise canceling mode was turned on.
  • Ambient sound: The ambient sound mode was turned on.
  • Off: The noise canceling or ambient sound modes were turned off.
  • Quick Sound Settings: The Quick Sound Setting was turned on.
  • Off: The Quick Sound Setting was turned off.
Sony-WF-SP700N-Manual-14
Credits: Sony

What Do The Lights Mean?

Earbuds

  • A blue light flashes two times: The earbuds turn on.
  • A blue light on for about 2 seconds: The earbuds turn off.
  • A red and blue light flashing alternately: The earbuds are now in pairing mode.
  • A blue light flashes quickly for about 5 seconds: The pairing was successful.
  • A blue light flashes with 5-second intervals: The earbuds are paired with the device.
  • A blue light flashes quickly with an incoming call: There is an incoming call.
  • A red light flashes one time: The case has a low battery.
  • A red light flashes two times: The case has a medium battery.
  • A red light flashes three times: The case has a high battery.
  • A red light on while on the charging case: The earbuds are charging.
  • Said light turns off while on the charging case: The earbuds are fully charged.
  • A red turns off while resetting: The earbuds are resetting.
  • A red light on the earbuds goes into flashing state when a blue light flashes 4 times: The earbuds are resetting to factory settings.
  • A red light turns on while on the charging case: The earbuds are charging.
  • Said red light turns off while on the charging case: The earbuds are fully charged.
  • A red light turns on: The earbuds have a really low battery.

Charging case

  • A light on the back stays on while charging: The case is charging.
  • Said light turns off while charging: The case is fully charged.
Sony-WF-SP700N-Manual-15
Credits: Sony

A Guide To The Sony WF-SP700N App

The Sony WF-SP700N have an application specially made for them, and it is the Sony | Headphones Connect app, which is available on Play Store and App Store.

Right when you open the application, you will have the possibility to add any device you want. After doing that, you can enter the application as such, which has two parts: Headphones and Information. In “Information”, you will find general information about Sony products, while in “Headphones”, you will find three points:

  • Status: In this first part, you can control the volume of the earbuds, as well as pause, skip or rewind the song or video that is being played.
  • Sound: In this second part, some features of the earbuds can be customized, such as noise-canceling for calls and ambient sound control.
  • System: Finally, in this third part, you can change the functions of the earbuds, as well as notifications and software updates, which are done by the application itself.

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Sony-WF-SP700N-Manual-17
Credits: Rtings

FAQs

Are the Sony WF-SP700N waterproof?

No, the Sony WF-SP700N are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Sony WF-SP700N have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Sony WF-SP700N have a low latency/gaming mode?

No. These earbuds don’t have a low latency/gaming mode.

Can the Sony WF-SP700N connect to PCs and laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Sony WF-SP700N noise-canceling?

Yes. These earbuds come with noise-cancellation technology.

How to know when the Sony WF-SP700N are fully charged?

When the earbuds are charging, a light is on the earbuds. When fully charged, said light turns off.

We hope you now know how to operate the earphone from the above Sony WF-SP700N manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.
