SoundPEATS Capsule3 Pro Manual | Pairing & Charging Instructions

The SoundPEATS Capsule3 Pro earbuds come with specs such as three microphones per earbud, support for the Game mode (70ms low latency), Transparency mode, and Active Noise Cancellation technology, support for the SOUNDPEATS app, up to 52 hours of total battery life with the charging case, Bluetooth 5.3, and much more. Learn how to use these earbuds using this SoundPEATS Capsule3 Pro manual!

If you are interested in purchasing these earbuds, you can easily do it using the Amazon online store. Also, in case you are interested in giving the original manual a look, you can do it here.

SoundPEATS Capsule3 Pro Specs Sheet

ModelSoundPEATS Capsule3 Pro
WeightEarbuds: Around 4.9 grams per earbud
Waterproof/IP ratings  IPX4
Bluetooth version          V5.3
Range/Distance10 meters
Connectivity Port/Charging CableType-C
Audio Decoding               SBC, LDAC
Driver  12mm
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: Around 8 hours
Charging case: Around 44 hours
Charging Time  Earbuds: Around 1 hour
Charging case: Around 1.5 hours
App Support     Yes, the SOUNDPEATS app
Controls/Features         Play and pause a song, play the next song, answer, end, and reject a call, turn the volume up and down, voice assistant, switch between two calls, Game mode, ANC, Transparency mode
Accessories       Charging case, USB cable, user manual, ear tips
PriceAround 80 USD

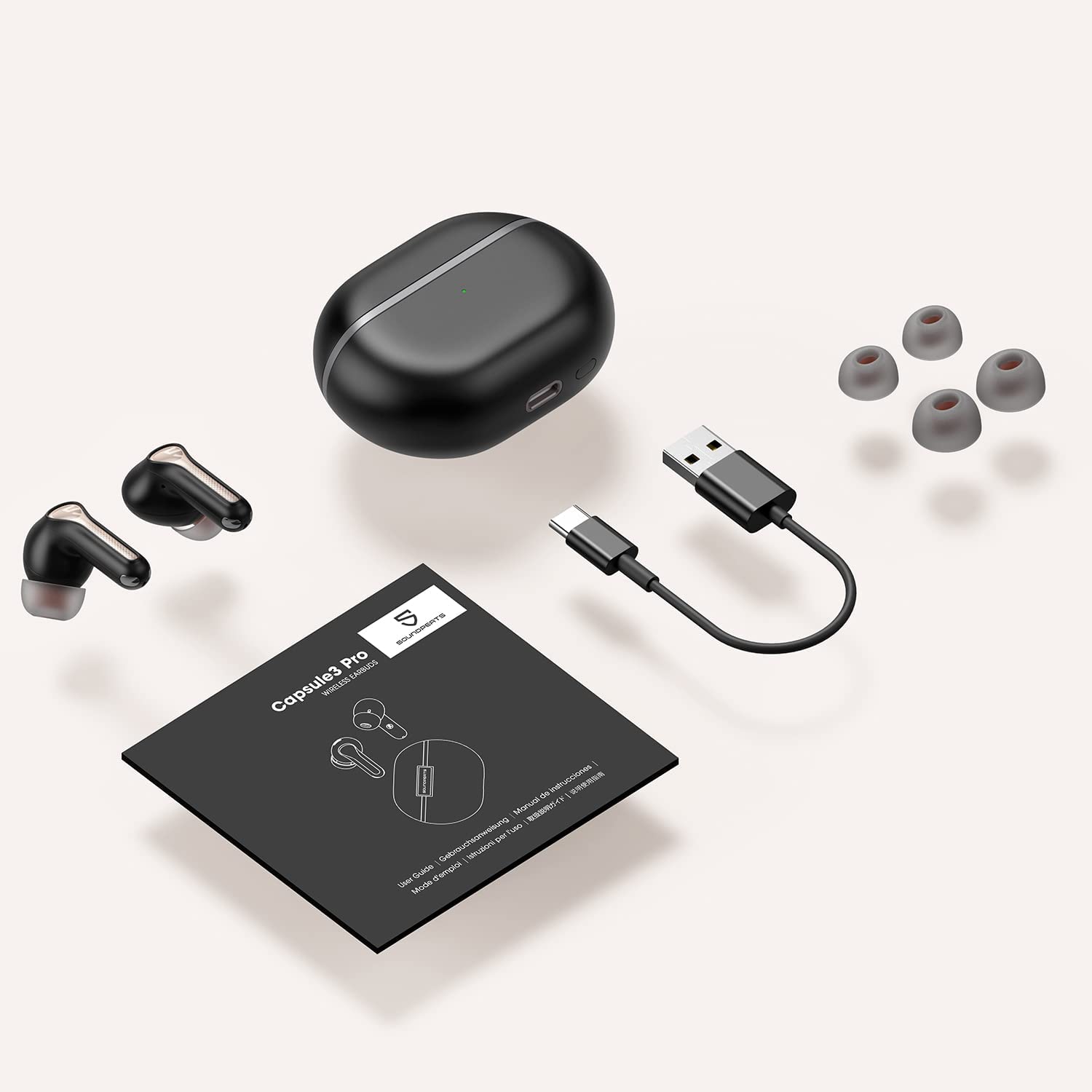

SoundPEATS Capsule3 Pro Accessories

The earbuds come with the following accessories:

  • Charging case.
  • USB cable.
  • User manual.
  • Ear tips.
SoundPEATS-Capsule3-Pro-Manual-1

SoundPEATS Capsule3 Pro Manual | Step-by-step, In-depth Guide

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

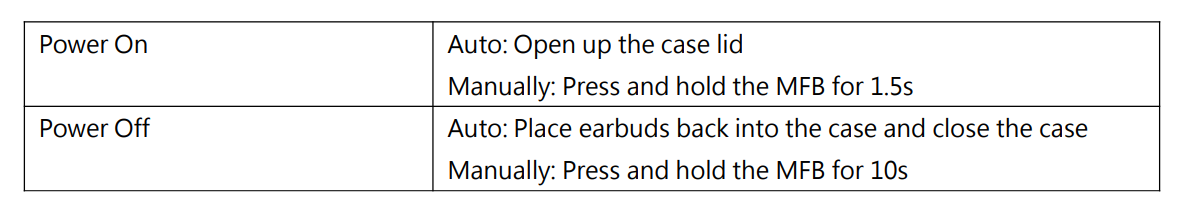

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case. After that, the earbuds will turn on automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 1.5 seconds. After that, the earbuds will turn on automatically.

Turn Off

Automatically: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 10 seconds. After that, the earbuds will turn on automatically.

SoundPEATS-Capsule3-Pro-Manual-2

How To Pair The Earbuds?

To Android And iOS Devices

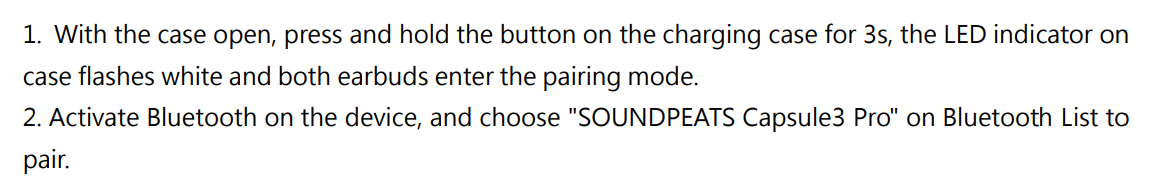

Step 1: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 2: Press and hold the button on the charging case for about 3 seconds. A white light will start flashing on the earbuds, meaning that they will now be ready to pair with any device.

Step 3: Unlock the desired device.

Step 4: Go to the device’s settings.

Step 5: Turn on Bluetooth on the desired device.

Step 6: Search for a new device.

Step 7: Select the SOUNDPEATS Capsule3 Pro earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case. After that, the earbuds will turn on automatically and pair with each other.

Step 7: Press and hold the button on the charging case for about 3 seconds. A white light will start flashing on the earbuds, meaning that they will now be ready to pair with any device.

Step 8: Select the SOUNDPEATS Capsule3 Pro earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

SoundPEATS-Capsule3-Pro-Manual-3

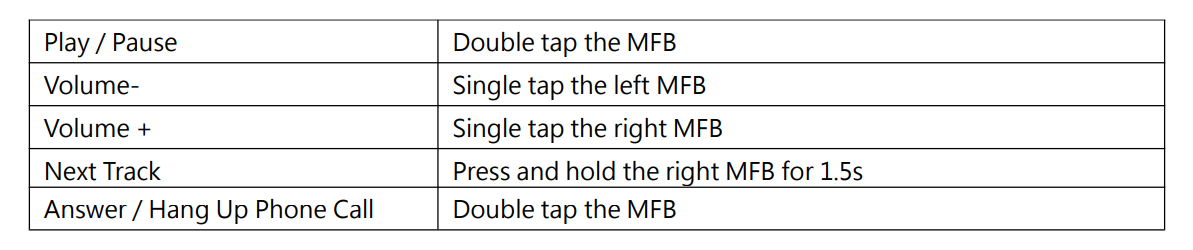

How To Control These Earbuds?

NOTE: The multifunction touch button is placed on the upper part of the body of the earbuds.

  • Play and pause a song: Press the multifunction touch button on any of the earbuds two times.
  • Turn the volume up: Press the multifunction touch button on the right earbud one time.
  • Turn the volume down: Press the multifunction touch button on the left earbud one time.
  • Play the next song: Press and hold the multifunction touch button on the right earbud for about 1.5 seconds.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.

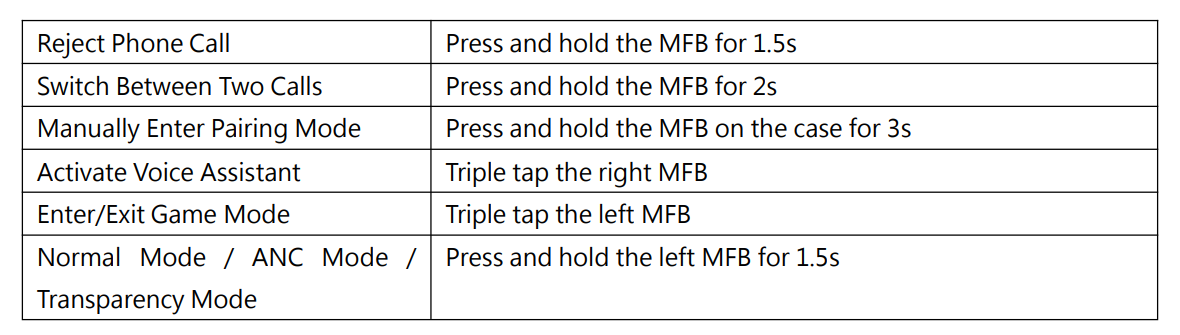

  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 1.5 seconds.
  • Switch between two calls: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press the multifunction touch button on the right earbud three times.
  • Activate/deactivate the Game mode: Press the multifunction touch button on the right earbud three times.
  • Change between the normal/ANC/Transparency mode: Press and hold the multifunction touch button on the left earbud for about 1.5 seconds.

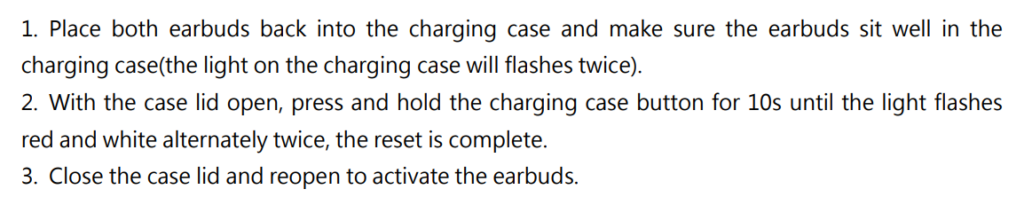

How To Reset The Earbuds?

Step 1: Place both earbuds into the case and make sure they sit well in their place. A light on the case will flash two times.

Step 2: With the lid open, press and hold the button on the case for about 10 seconds, or until a red and white light flashes two times. This will reset the earbuds.

Step 3: Close the lid of the case, and re-open to activate the earbuds.

SoundPEATS-Capsule3-Pro-Manual-5

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close its lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

  • A white light flashes on the earbuds: The earbuds are ready to pair.
  • A red and white light flashes two times while resetting: The earbuds are resetting.

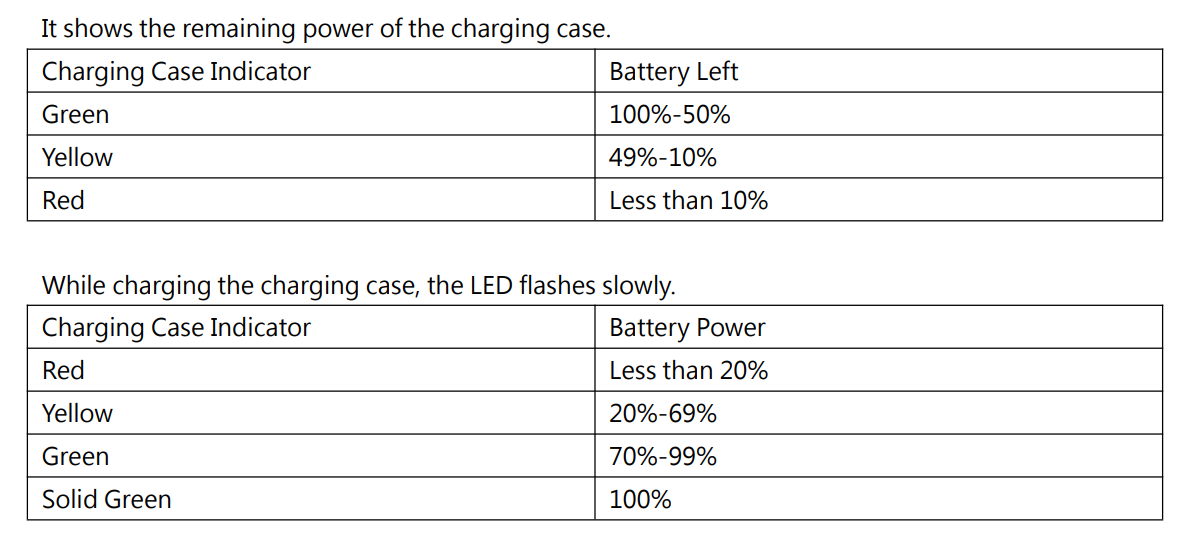

Charging Case

  • A green light on: The case has between 100% and 50% of battery.
  • A yellow light on: The case has between 49% and 10% of battery.
  • A red light on: The case has less than 10% of battery.
  • A red light flashes while charging: The case has less than 20% of battery.
  • A yellow light flashes while charging: The case has between 20% and 69% of battery.
  • A green light flashes while charging: The case has between 70% and 99% of battery.
  • A green light on while charging: The case is fully charged.

SoundPEATS-Capsule3-Pro-Manual-6

Do These Earbuds Have An App?

Yes! These earbuds do come with a specialized app called SOUNDPEATS, which is available in both the Play Store and App Store. Through the app, you can see the battery percentage of the earbuds, in addition to various features being available, such as controlling the volume level, configuring the Equalizer and the Game, Noise Cancellation, and Transparency mode, as well as the various controls of the earbuds.

In addition to that, you can also find general information about the earbuds and the app, as well as the possibility of resetting the earbuds through the app and a company store.

SoundPEATS-Capsule3-Pro-Manual-0

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

SoundPEATS-Capsule3-Pro-Manual-7

FAQs

Do the SoundPEATS Capsule3 Pro have a microphone?

Yes, the earbuds come with integrated microphones.

Do the SoundPEATS Capsule3 Pro have a low latency/gaming mode?

Yes, these earbuds have a low latency/gaming mode.

Can the SoundPEATS Capsule3 Pro connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the SoundPEATS Capsule3 Pro noise-canceling?

Yes, these earbuds come with noise-cancellation technology.

Are the SoundPEATS Capsule3 Pro waterproof?

No, these earbuds are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

We hope you now know how to operate the earbuds from the above SoundPEATS Capsule3 Pro manual. Want to know anything about the earbuds? Do not hesitate to ask in the comment section below.
