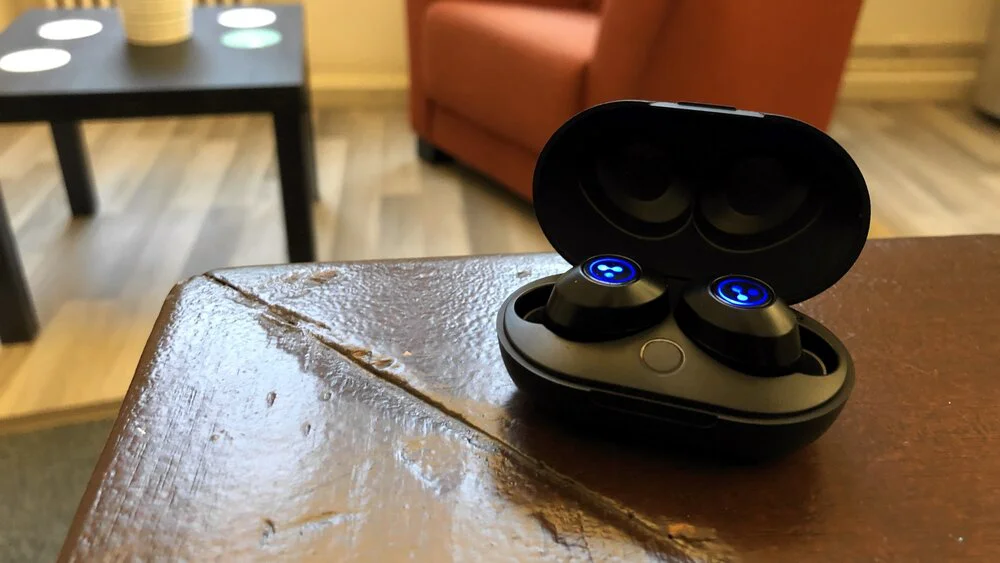

Syllable-S105-Manual-5

Syllable S105 Manual | Instructions & Troubleshooting 2022

The Syllable S105 have 4 hours of music playtime, a charging case with a 400mAh internal battery, the A2DP1.3/AVRCP1.6 supported profiles, Bluetooth 5.0, the amazing IPX6 water-resistant rating, and much more. Learn how to use them with this new Syllable S105 Manual.

Syllable S105 Manual | Everything You Need To Know!

Syllable S105 Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, a red and blue light will flash once, to then turn to only a blue light, and the earbuds will turn on automatically.

Step 2: Take the earbuds out of the charging case. After that, a blue light will turn on in the left earbud, and a blue and red light will start flashing on the right earbud, meaning that they are ready to pair with any device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “Syllable S105-L” and “Syllable S105-R”. If a password is needed, type “0000”.

Step 5: After that, the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, a red and blue light will flash once, to then turn to only a blue light, and the earbuds will turn on automatically.

Step 6: Take the earbuds out of the charging case. After that, a blue light will turn on in the left earbud, and a blue and red light will start flashing on the right earbud, meaning that they are ready to pair with any device.

Step 7: Select “Syllable S105-L” and “Syllable S105-R”. If a password is needed, type “0000”.

Step 8: After that, the pairing will be done.

Syllable-S105-Manual-1

Syllable S105 Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Syllable S105 Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, a red and blue light will flash once, to then turn to only a blue light, and the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn off automatically.

Syllable-S105-Manual-2

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Turn the volume up: Press the multifunction touch button on the right earbud two times.
  • Turn the volume down: Press the multifunction touch button on the left earbud two times.
  • Play the next song: Press and hold the multifunction touch button on the right earbud for about 2 seconds.
  • Play the previous song: Press and hold the multifunction touch button on the left earbud for about 2 seconds.
  • Activate the voice assistant: Press the multifunction touch button on any of the earbuds three times.

Syllable S105 Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Syllable S105, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Syllable-S105-Manual-3

Syllable S105 Manual | How to Charge?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Syllable S105 Manual | LED Light Status

  • A red and blue light flashes once on both earbuds, to then turn to only a blue light: The earbuds turn on.
  • A blue light turns on in the left earbud, and a blue and red light will start flashing on the right earbud: The earbuds are ready to pair with any device.
Syllable-S105-Manual-4
Credits: Scarbir

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

Syllable S105 earbuds not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Syllable-S105-Manual-5
Credits: Scarbir

FAQs

Are Syllable S105 waterproof?

The Syllable S105 have the IPX6 water-resistant rating, which means that they’re dustproof and are, also, protected against water.

Does Syllable S105 have a microphone?

Yes, the Syllable S105 have integrated microphones.

Do Syllable S105 have low latency/gaming mode?

No, the Syllable S105 don’t have low latency/gaming mode.

How to know when Syllable S105 are fully charged?

The earbuds take about 1.5 hours to charge, so after that time, they should be fully charged.

Can Syllable S105 connect to PC and Laptop?

Yes, the Syllable S105 can connect to PCs, laptops, and tablets.

We hope you now know how to operate the earbuds from the above Syllable S105 Manual. Want to know anything about them? Do not hesitate to ask in the comments section.
