Technics AZ40M2 Manual | Everything You Need To Know

The Technics AZ40M2 earbuds come with specs such as app support, Active Noise Cancellation technology, Bluetooth 5.3 with 10 meters of working connection and support for the SBC, AAC, and LDAC audio codecs, one 6mm driver and built-in microphones on each earbud, about 6 hours of battery life, very light weight of only 5 grams per earbud, and much more. Learn how to use these earbuds using this Technics AZ40M2 manual!

If you are interested in purchasing these earbuds, you can easily do it using the Amazon online store. Also, in case you are interested in giving the original manual a look, you can do it here.

Technics AZ40M2 Specs Sheet

ModelTechnics AZ40M2
WeightEarbuds: Around 5 grams each
Charging case: Around 35 grams
Waterproof/IP ratings  IPX4
Bluetooth version          V5.3
Range/Distance10 meters
Connectivity Port/Charging CableType-C
Audio Decoding               SBC, AAC, LDAC
Driver  6mm
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: Around 5.5 hours (ANC on)/Around 7 hours (ANC off)
Charging case: Around 18 hours (ANC on)/Around 24 hours (ANC off)
Charging Time  Earbuds: Around 2 hours
Charging case: Around 2.5 hours
App Support     Yes, Technics Audio Connect
Controls/Features         Play and pause a song, play the next and previous song, answer, end, and reject a call, turn the volume up and down, voice assistant, mute and unmute the microphone, switch the noise level from the other party, ANC
Accessories       Charging case, USB cable, user manual, ear tips
PriceAround 170 USD

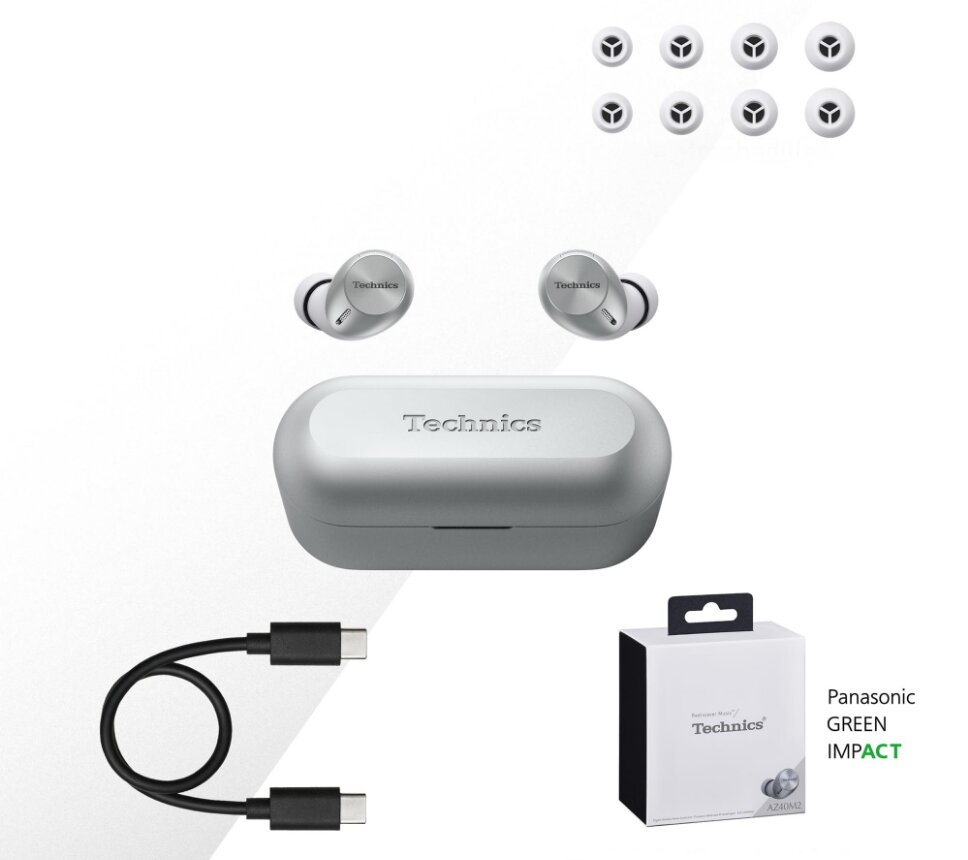

Technics AZ40M2 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • USB cable.
  • User manual.
  • Ear tips.
Technics-AZ40M2-Manual-1

Technics AZ40M2 Manual | How Can You Use These Earbuds?

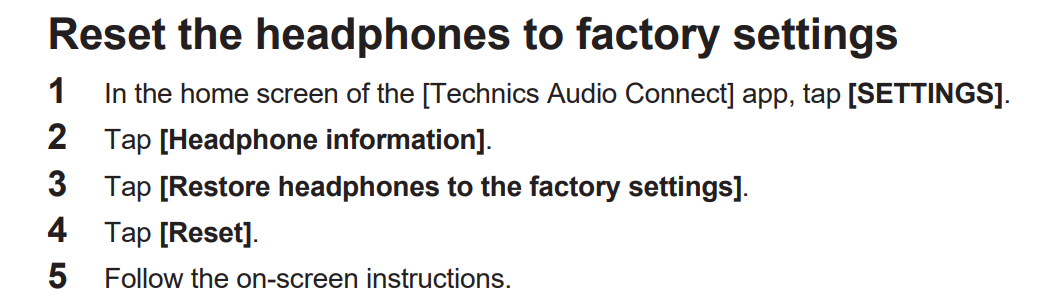

How To Reset The Earbuds?

Step 1: In the home screen of the Technics Audio Connect app, tap Settings.

Step 2: Tap Headphone information.

Step 3: Tap Restore headphones to the factory settings.

Step 4: Tap Reset, and follow the on-screen instructions.

Technics-AZ40M2-Manual-2

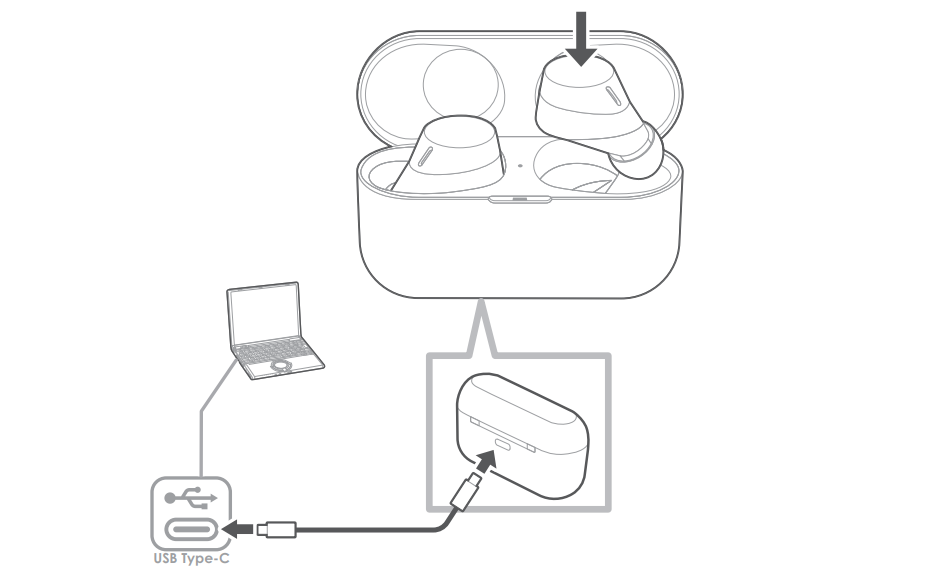

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

Technics-AZ40M2-Manual-3

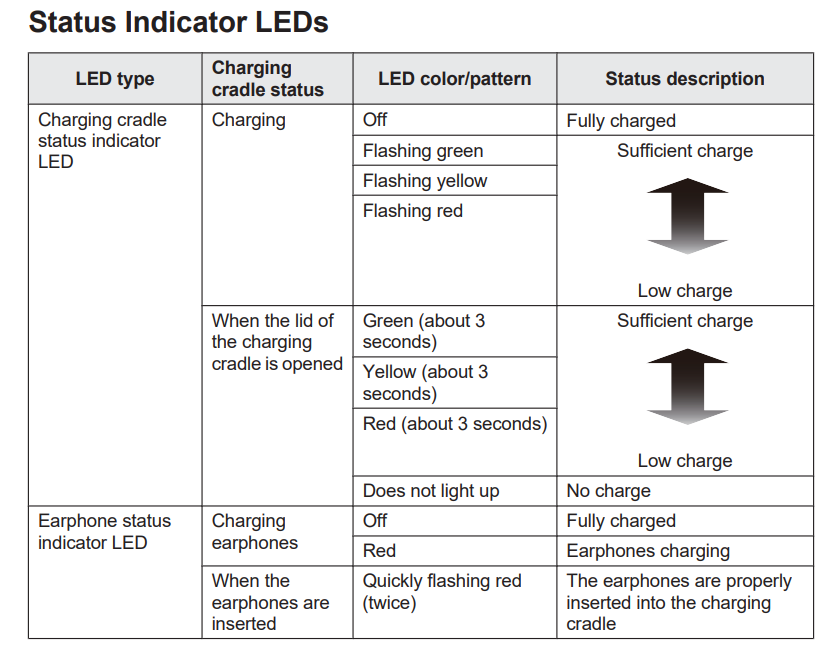

What Do The Lights Mean?

Earbuds

  • A red light on while on the charging case: The earbuds are charging.
  • Said red light turns off while on the charging case: The earbuds are fully charged.
  • A red light flashes two times when placed on the charging case: The earbuds were properly inserted.

Charging Case

  • A green light flashes while charging: The case has a high battery level.
  • A yellow light flashes while charging: The case has a medium battery level.
  • A red light flashes while charging: The case has a low battery level.
  • No light on while charging: The case is fully charged.
  • A green light on for 3 seconds when the lid gets opened: The case has a high battery level.
  • A yellow light on for 3 seconds when the lid gets opened: The case has a medium battery level.
  • A red light on for 3 seconds when the lid gets opened: The case has a low battery level.
  • No light turns on when the lid gets opened: The case has no battery.

Technics-AZ40M2-Manual-4

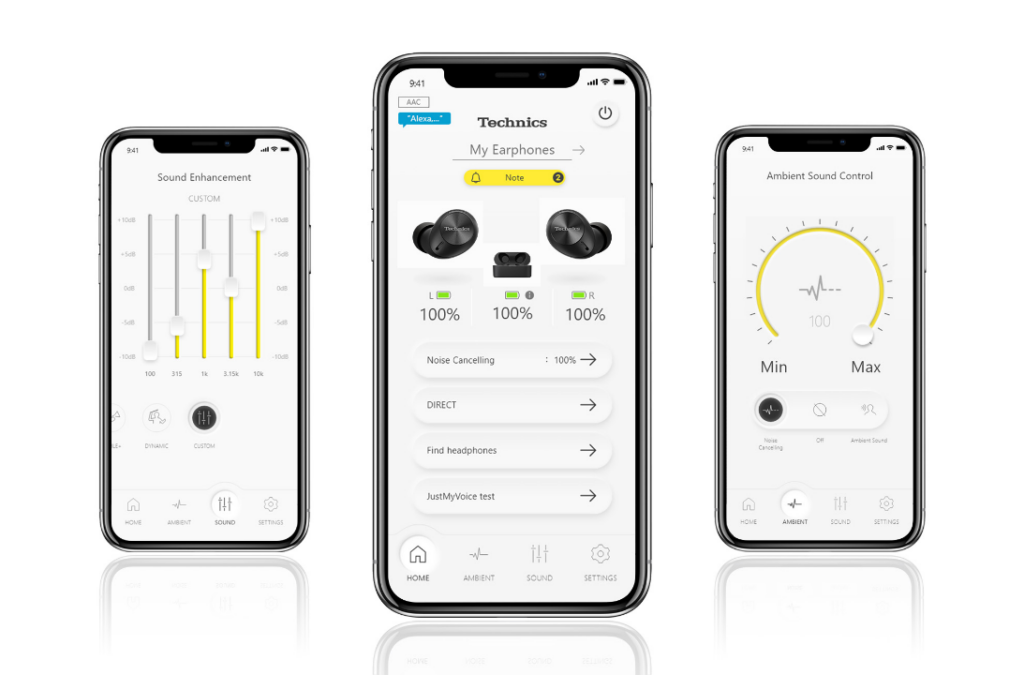

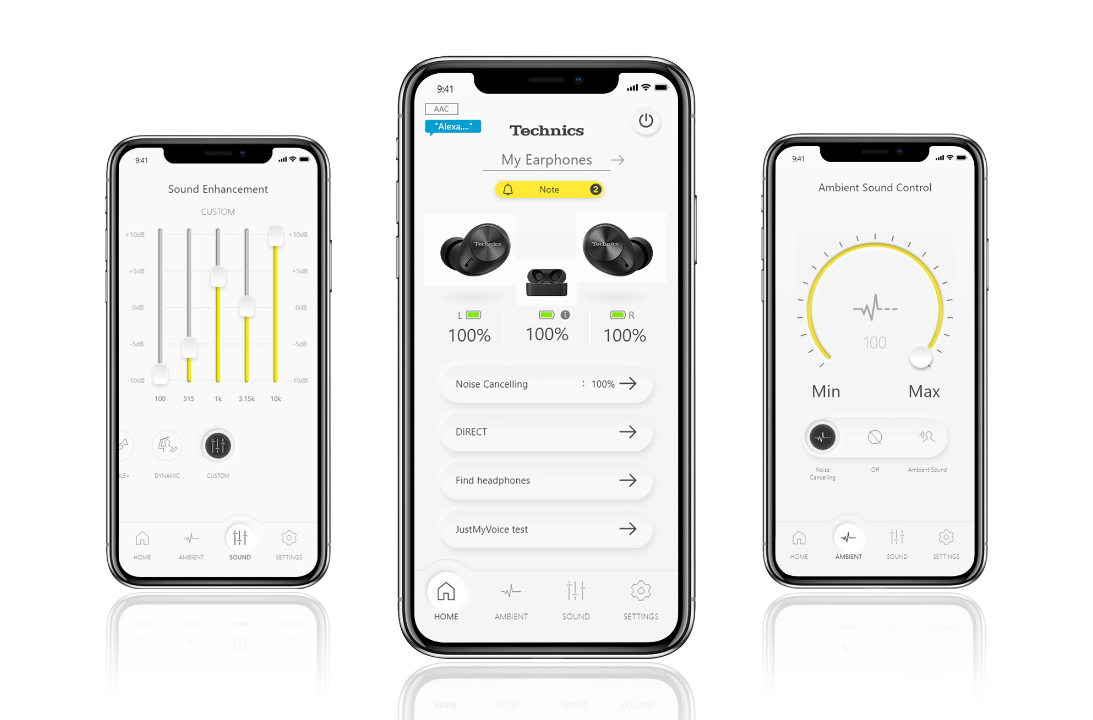

Do These Earbuds Have An App?

Yes! These earbuds do come with a specialized app called Technics Audio Connect, which is available in both the Play Store and App Store. After opening the app and pairing the earbuds, the home page will appear; here, you will be able to see the battery level on both earbuds and the charging case, alongside options and features such as the connected Bluetooth codec, and Alexa features, and powering the earbuds on and off.

In addition to that, you can also configure the ANC feature, the sound enhancement settings, a special feature to find the earbuds in case of loss, and a Check JustMyVoice test to check the voice transmitted to the other party on a call.

Finally, there are options for the home page, the setting screen for external sound control, the setting screen for sound enhancement, and the setting screen individually.

Technics-AZ40M2-Manual-6

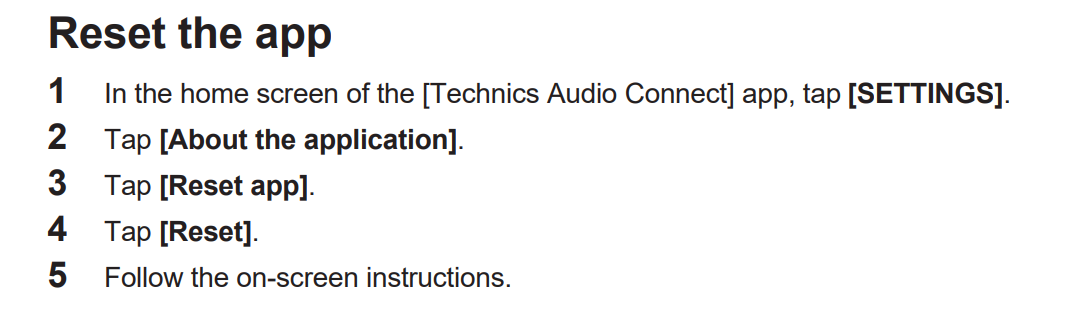

How To Reset The App?

Step 1: In the home screen of the Technics Audio Connect app, tap Settings.

Step 2: Tap About the application.

Step 3: Tap the Reset app.

Step 4: Tap Reset, and follow the on-screen instructions

Technics-AZ40M2-Manual-7

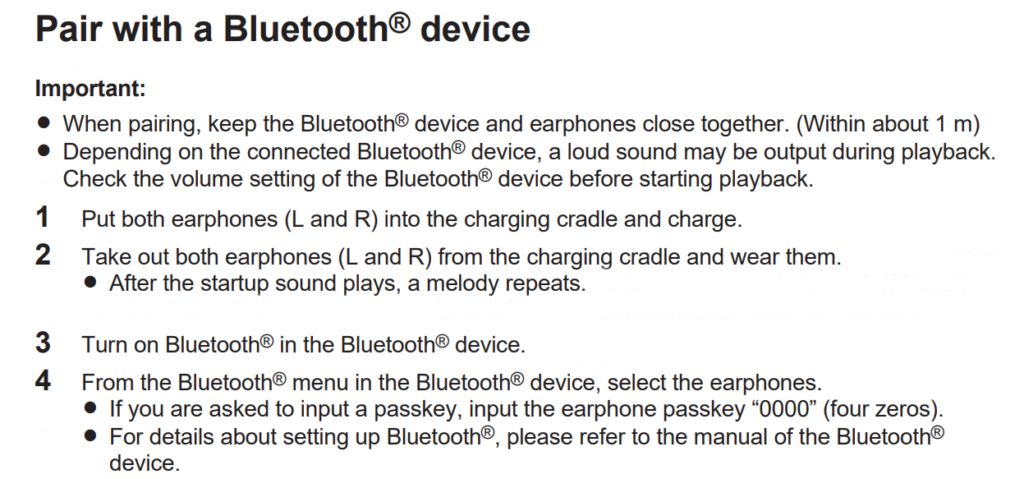

How To Pair The Earbuds?

To Android And iOS Devices

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will now be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the Technics AZ40M2 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically and pair with each other.

The earbuds will now be ready to pair with any device.

Step 7: Select the Technics AZ40M2 earbuds. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

Technics-AZ40M2-Manual-8

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Turn Off

Automatically: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Technics-AZ40M2-Manual-9

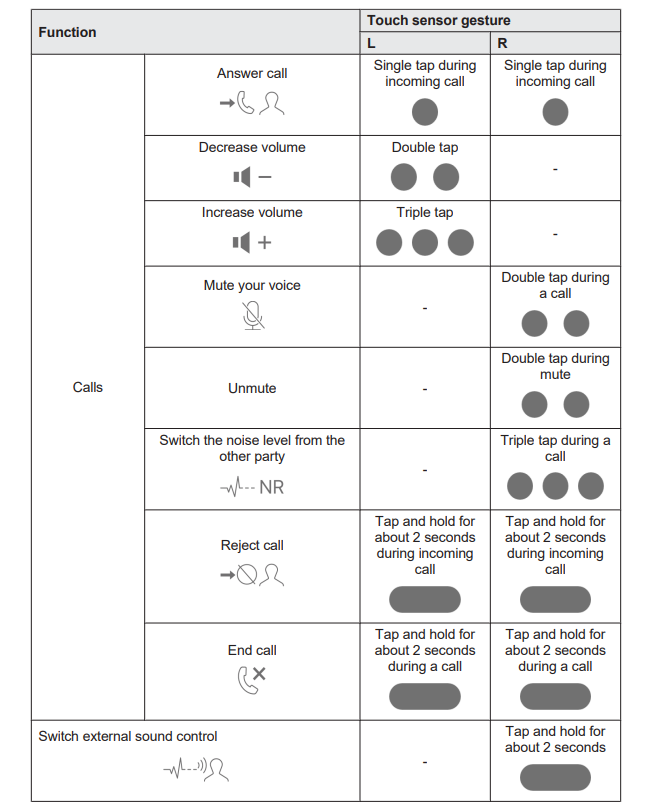

How To Control These Earbuds?

NOTE: The touch sensor is placed on the middle part of the body of the earbuds.

  • Play and pause a song: Press the touch sensor on any of the earbuds one time.
  • Turn the volume up: Press the touch sensor on the left earbud three times.
  • Turn the volume down: Press the touch sensor on the left earbud two times.
  • Play the next song: Press the touch sensor on the right earbud two times.
  • Play the previous song: Press the touch sensor on the right earbud three times.
  • Answer an incoming call: Press the touch sensor on any of the earbuds one time.
  • End a current call: Press and hold the touch sensor on any of the earbuds for about 2 seconds.
  • Reject an incoming call: Press and hold the touch sensor on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the touch sensor on the left earbud for about 2 seconds.
  • Mute/unmute the microphone: Press the touch sensor on the right earbud two times.
  • Switch the noise level from the other party: Press the touch sensor on the right earbud three times.
  • Switch external sound control (ANC): Press and hold the touch sensor on the right earbud for about 2 seconds.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Technics-AZ40M2-Manual-11

FAQs

Do the Technics AZ40M2 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Technics AZ40M2 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the Technics AZ40M2 connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the Technics AZ40M2 noise-canceling?

Yes, these earbuds come with noise-cancellation technology.

Are the Technics AZ40M2 waterproof?

No, these earbuds are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

We hope you now know how to operate the earbuds from the above Technics AZ40M2 manual. Want to know anything about the earphones? Do not hesitate to ask in the comment section below.
