The Tronsmart Onyx Neo have a Qualcomm QCC3020 chipset, the IPX5 sweat and water-proof certification, aptX, AAC, and SBC codecs, around 7 hours listening on a full charge, up to 24 hours of music playback with the charging case, and much more. Learn how to use them with this new Tronsmart Onyx Neo Manual.

Tronsmart Onyx Neo Manual | Everything You Need To Know!

Tronsmart Onyx Neo Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Take both earbuds out of the charging case. They will turn on and pair to each other automatically. When a red and blue light flashes alternately on the left earbud, they will be ready to pair to any device.

In case that the earbuds don’t turn on automatically, all you have to do is to press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, they will turn on.

Step 2: Go to the device’s Bluetooth settings.

Step 3: Select “Tronsmart Onyx Neo”. If a password is needed, type “0000”.

Step 4: After that, the red and blue light flashes alternately on the left earbud will turn off and the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Take both earbuds out of the charging case. They will turn on and pair to each other automatically. When a red and blue light flashes alternately on the left earbud, they will be ready to pair to any device.

In case that the earbuds don’t turn on automatically, all you have to do is to press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, they will turn on.

Step 7: Select “Tronsmart Onyx Neo”. If a password is needed, type “0000”.

Step 8: After that, the red and blue light flashes alternately on the left earbud will turn off and the pairing will be done.

Tronsmart-Onyx-Neo-Manual-1

Tronsmart Onyx Neo Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Tronsmart Onyx Neo Manual | How to Turn On and Off?

Turn on

Automatically: Take both earbuds out of the charging case. After that, a light will be on and they will turn on automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, a light will be on and they will turn on.

Tronsmart-Onyx-Neo-Manual-2

Turn off

Automatically: Place the earbuds inside of the charging case. After that, they will turn off automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, a light will go off and they will turn off.

Tronsmart-Onyx-Neo-Manual-3

Tronsmart Onyx Neo Manual | How to Activate Mono Mode?

To activate the mono mode in the Tronsmart Onyx Neo, all you have to do is to take the desired earbuds out of the charging case. It will automatically connect to the last paired device.

Tronsmart-Onyx-Neo-Manual-4

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds one time.
  • Play the next song: Press the multifunction touch button on the right earbud three times.
  • Play the previous song: Press the multifunction touch button on the left earbud three times.
  • Turn the volume up: Press the multifunction touch button on the right earbud two times.
  • Turn the volume down: Press the multifunction touch button on the left earbud two times.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
  • End a call: Press the multifunction touch button on any of the earbuds one time.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for 2 seconds.
  • Activate the voice assistant: Press and hold the multifunction touch button on any of the earbuds for 2 seconds.
Tronsmart-Onyx-Neo-Manual-5

Tronsmart Onyx Neo Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is plug a 5V USB Type-C cable into the port on the charging case. It will start charging automatically.

Tronsmart-Onyx-Neo-Manual-6

Tronsmart Onyx Neo Manual | How to Reset?

Step 1: Place both earbuds into the charging case.

Step 2: After a red light turns on, press and hold the multifunction touch button on both earbuds for about 8 seconds. After that, a red and blue light will start flashing alternately.

Step 3: Take both earbuds out of the charging case.

Step 4: Place both earbuds into the charging case again.

Step 5: After that, the resetting will be done.

Tronsmart Onyx Neo Manual | LED Light Status

Earbuds

  • Light turns on: Earbuds turn on.
  • Light goes off 2 seconds: Earbuds turn off.
  • Red and blue light flashing alternately on in the left earbud: Earbuds ready to pair.
  • Red and blue light flashing alternately on in the left earbud turns off: Earbuds paired to device.
  • Red light on: Earbuds charging.
  • Red light off: Earbuds fully charged.
  • Red and blue light flashing alternately: Earbuds resetting.

Charging case

  • Red light on: Case charging.
  • Green light: Case fully charged.
Tronsmart-Onyx-Neo-Manual-7

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

Tronsmart Onyx Neo earbuds not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

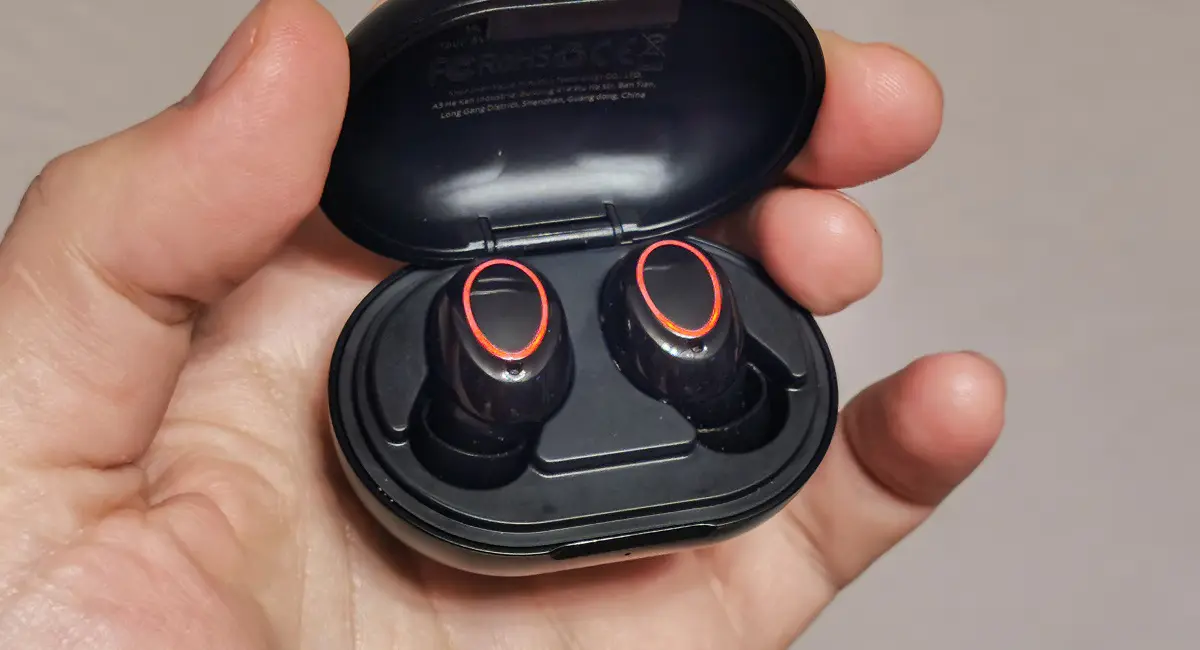

Tronsmart-Onyx-Neo-Manual-8
Credits: Root Nation

FAQs

Are Tronsmart Onyx Neo waterproof?

The Tronsmart Onyx Neo have the IPX4 certification, which means they’re dustproof, splash and sweat-resistant.

Does Tronsmart Onyx Neo have a microphone?

Yes, the Tronsmart Onyx Neo have integrated microphones.

Do Tronsmart Onyx Neo have low latency/gaming mode?

No, the Tronsmart Onyx Neo don’t have low latency/gaming mode.

How to know when Tronsmart Onyx Neo are fully charged?

When the earbuds are charging, a red light is on. When fully charged, that light turns off.

Can Tronsmart Onyx Neo connect to PC and Laptop?

Yes, the Tronsmart Onyx Neo can connect to PCs, laptops and tablets.

We hope you now know how to operate the earphone from the above Tronsmart Onyx Neo Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Tronsmart company, all your information can be found on its Contact Us page, where you can find numbers and emails available for several countries!
