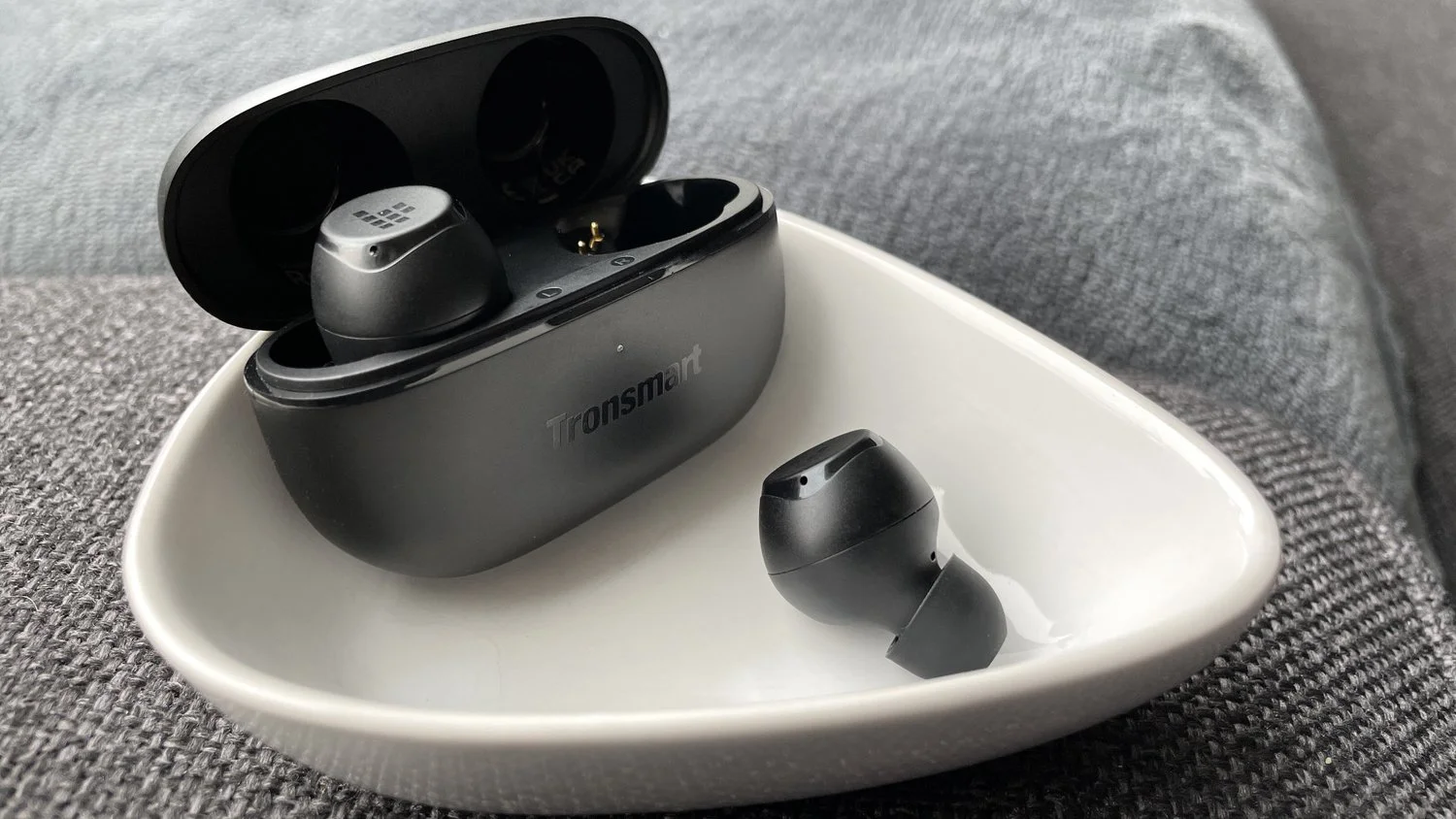

Tronsmart-Onyx-Pure-Manual-6

Tronsmart Onyx Pure Manual | Step-by-step Guide 2022

Aliexpress banner

The Tronsmart Onyx Pure have Bluetooth 5.3, up to 7 hours of battery life + 32 hours of playtime using the charging case, 3 EQ modes, a Dynamic Driver + Balanced Armature combo, the IPX5 certification, and much more. Learn how to use them with this new Tronsmart Onyx Pure Manual.

Tronsmart Onyx Pure Manual | This Is All You Need To Know!

Tronsmart Onyx Pure Manual | How to Pair / Connect?

To iOS and Android phones

Step 1: Open the lid of the charging case and take the earbuds out. After that, a white light will flash for 1 second, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 3 seconds to manually turn them on.

While out of the charging case, the earbuds will pair with each other, and a white light will flash in both earbuds.

Step 2: Turn on the Bluetooth on the desired device.

Step 3: Go to the device’s Bluetooth settings.

Step 4: Select “Tronsmart Onyx Pure”. If a password is needed, type “0000”.

Step 5: After that, the flashing lights on the earbuds will turn off, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, a white light will flash for 1 second, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 3 seconds to manually turn them on.

While out of the charging case, the earbuds will pair with each other, and a white light will flash in both earbuds.

Step 7: Select “Tronsmart Onyx Pure”. If a password is needed, type “0000”.

Step 8: After that, the flashing lights on the earbuds will turn off, and the pairing will be done.

Tronsmart-Onyx-Pure-Manual-1
Credits: tronsmart.com

Tronsmart Onyx Pure Manual | How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

Tronsmart Onyx Pure Manual | How to Turn On and Off?

Turn on: Open the lid of the charging case and take the earbuds out. After that, a white light will flash for 1 second, and the earbuds will turn on automatically. Also, you can press and hold the multifunction touch button on both earbuds for 3 seconds to manually turn them on.

Turn off: Place the earbuds into the charging case. After that, a white light will flash for 2 seconds, and the earbuds will turn off automatically. Also, you can press and hold the multifunction touch button on both earbuds for 5 seconds to manually turn them off.

Credits: tronsmart.com

How to Control? / How to Operate? – Instructions

  • Play or pause music: Press the multifunction touch button on any of the earbuds two times.
  • Play the next song: Press and hold the multifunction touch button on the right earbud for about 2 seconds.
  • Play the previous song: Press and hold the multifunction touch button on the left earbud for about 2 seconds.
  • Turn the volume up: Press the multifunction touch button on the right earbud one time.
  • Turn the volume down: Press the multifunction touch button on the left earbud one time.
  • Answer an incoming call: Press the multifunction touch button on any of the earbuds two times.
  • End a current call: Press the multifunction touch button on any of the earbuds two times.
  • Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press the multifunction touch button on the right earbud three times.
  • Switch between the 3 EQ modes: Press the multifunction touch button on the left earbud three times.

Tronsmart Onyx Pure Manual | How to Activate Mono Mode?

To activate or deactivate the mono mode in the Tronsmart Onyx Pure, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

Tronsmart-Onyx-Pure-Manual-3
Credits: tronsmart.com

Tronsmart Onyx Pure Manual | How to Charge

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

Tronsmart Onyx Pure Manual | LED Light Status

Earbuds

  • A white light flashes for 1 second: The earbuds turn on.
  • A white light flashes for 2 seconds: The earbuds turn off.
  • A white light flashing in both earbuds while out of the charging case: The earbuds are ready to pair with any device.
  • That white light turns off: The earbuds are connected to the device.

Charging case

  • An orange light on: The case is charging.
  • A green light on: The case is fully charged.
  • A white light flashing with the earbuds inside: The earbuds are charging.
  • A white light turns off with the earbuds inside: The earbuds are fully charged.
  • An orange and white light flashing for 3 seconds: The earbuds are resetting.
Tronsmart-Onyx-Pure-Manual-4
Credits: tronsmart.com

Tronsmart Onyx Pure Manual | How to Reset?

Step 1: Delete all “Tronsmart Onyx Pure” records on the connected device.

Step 2: Open the lid of the charging case and keep the earbuds inside.

Step 3: Press and hold the multifunction touch button on the charging case for about 10 seconds, until an orange and white light starts flashing about 3 seconds. After that, the resetting will be done.

Tronsmart-Onyx-Pure-Manual-5
Credits: tronsmart.com

Some Common Earbuds Problems & Troubleshooting

Left / Right / One side of the earbuds have stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

Microphone not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

Tronsmart Onyx Pure earbuds not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> elect Bluetooth,

2. Try uninstalling and reinstalling the Bluetooth driver, or update the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

Tronsmart-Onyx-Pure-Manual-6
Credits: Scarbir

FAQs

Are Tronsmart Onyx Pure waterproof?

No, the Tronsmart Onyx Pure are not waterproof (IPX6 and up). They have a rating of IPX5, which means they’re protected against some water projected from a nozzle.

Does Tronsmart Onyx Pure have a microphone?

Yes, the Tronsmart Onyx Pure have integrated microphones.

Do Tronsmart Onyx Pure have low latency/gaming mode?

No! The Tronsmart Onyx Pure don’t have a low latency/gaming mode.

How to know when Tronsmart Onyx Pure are fully charged?

When the earbuds are charging, a white light flashes on the charging case. When fully charged, that light turns off.

Can Tronsmart Onyx Pure connect to PC and Laptop?

Yes, the Tronsmart Onyx Pure can connect to PCs, laptops, and tablets.

Are Tronsmart Onyx Pure noise cancelling?

No! These earbuds don’t come with noise cancellation technology.

We hope you now know how to operate the earphone from the above Tronsmart Onyx Pure Manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

In case you want or need to contact the Tronsmart company, all your information can be found on its Contact Us page, where you can find numbers and emails available for several countries!
