WOINNMM W01 Manual | Pairing & Troubleshooting

The WOINNMM W01 earbuds come with specs such as 8 hours of battery life, Bluetooth 5.3 + EDR technology, a 40mAh and built-in microphones in each earbud, 16.2mm drivers, a speaker frequency range of 20Hz to 20kHz, the IPX6 certification, and much more. Learn how to use these earbuds using this WOINNMM W01 manual!

If you are interested in purchasing these earbuds, you can easily do it using the Amazon online store. Also, in case you are interested in giving the original manual a look, you can do it here.

WOINNMM W01 Specs Sheet

ModelWOINNMM W01
WeightEarbuds: Around 5 grams each
Charging case: Around 58 grams
Waterproof/IP ratings  IPX6
Bluetooth version          V5.3
Range/Distance10 meters
Connectivity Port/Charging CableType-C
Audio Decoding               SBC
Driver  16.2mm
Speaker frequency response20Hz – 20kHz
Battery Life       Earbuds: About 8 hours
Charging case: About 22 hours
Charging Time  Earbuds: Around 1.5 hours
Charging case: About 1.5 hours
App Support     No
Controls/Features         Play and pause a song, play the next and previous song, answer, end, and reject a call, turn the volume up and down, voice assistant
Accessories       Charging case, USB cable, user manual
PriceAround 50 USD

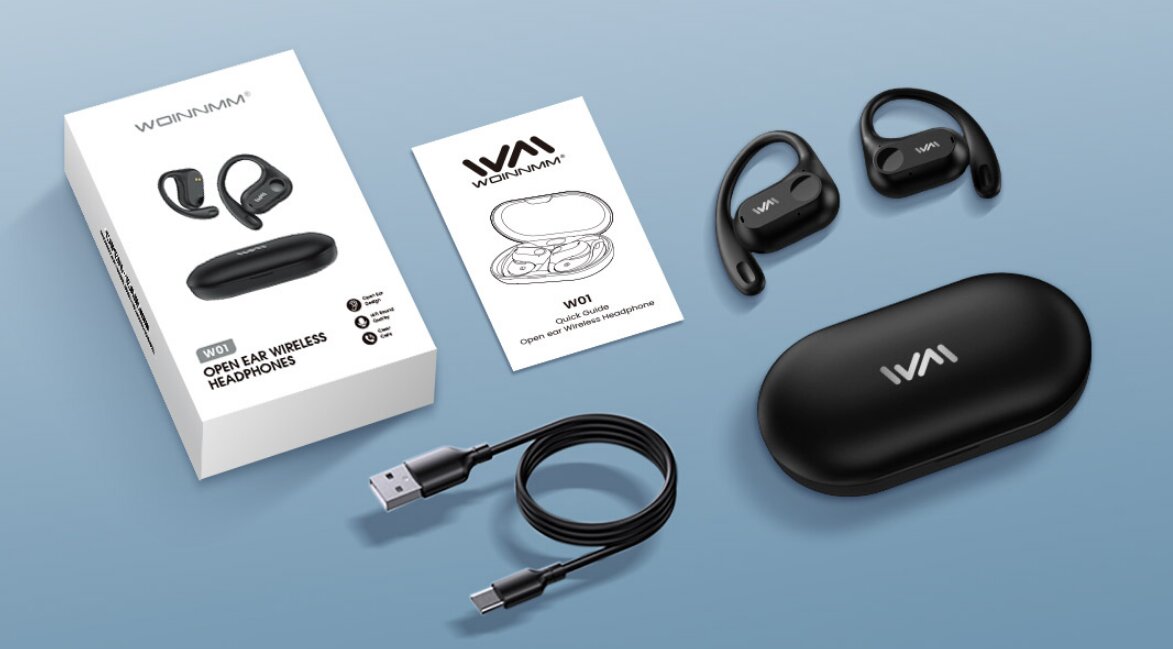

WOINNMM W01 Accessories

The earbuds come with the following accessories:

  • Charging case.
  • USB cable.
  • User manual.
WOINNMM-W01-Manual-1

PSIER CT12 Manual | Pairing & Troubleshooting

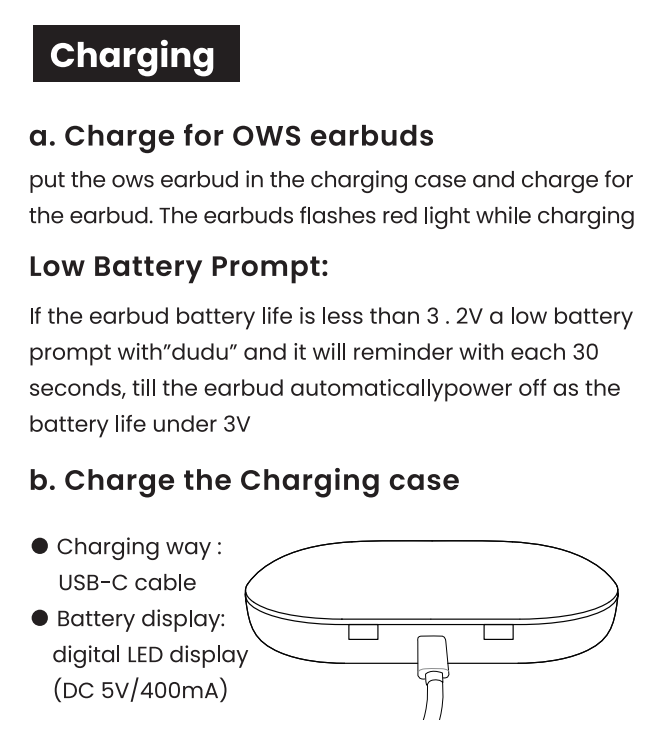

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

What Do The Lights Mean?

Earbuds

  • A red light flashing while on the charging case: The earbuds are charging.

How To Control These Earbuds?

NOTE: The touch control area is placed on the top part of the body of the earbuds.

  • Play or pause a song: Press the touch control area on any of the earbuds one time.

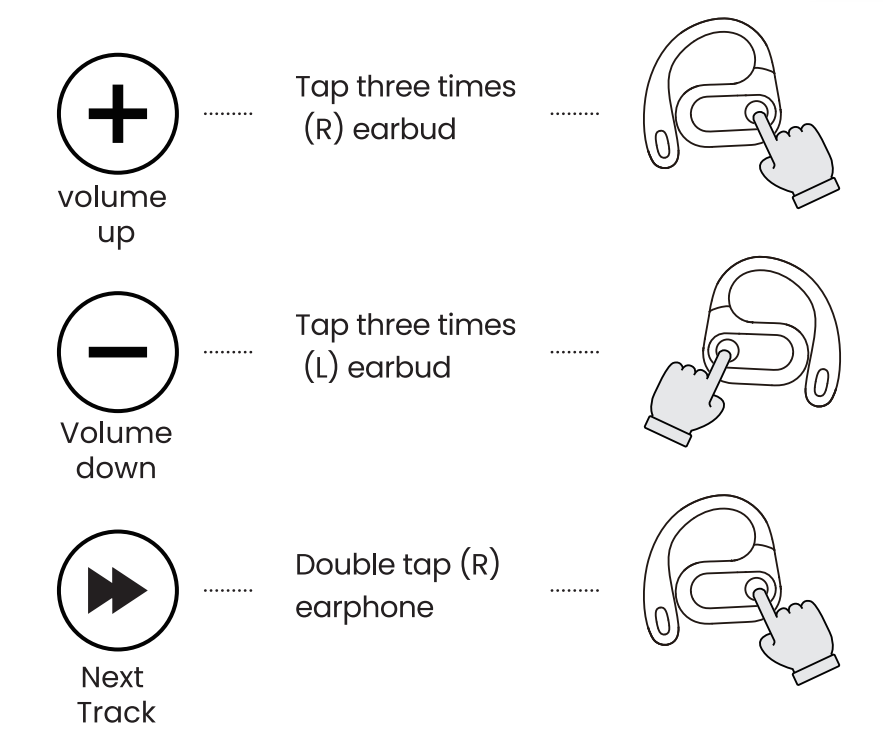

  • Turn the volume up: Press the touch control area on the right earbud three times.
  • Turn the volume down: Press the touch control area on the left earbud three times.
  • Play the next song: While listening to music, press the touch control area on the right earbud two times.

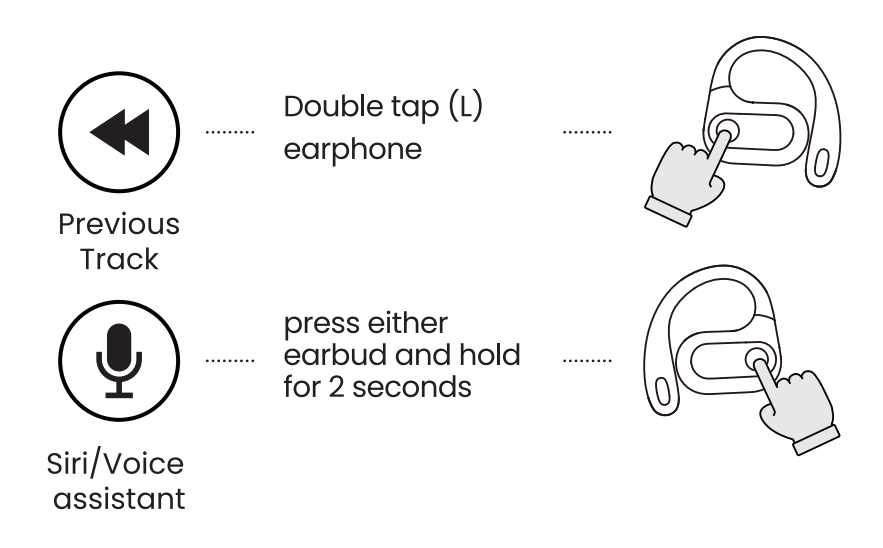

  • Play the previous song: While listening to music, press the touch control area on the left earbud two times.

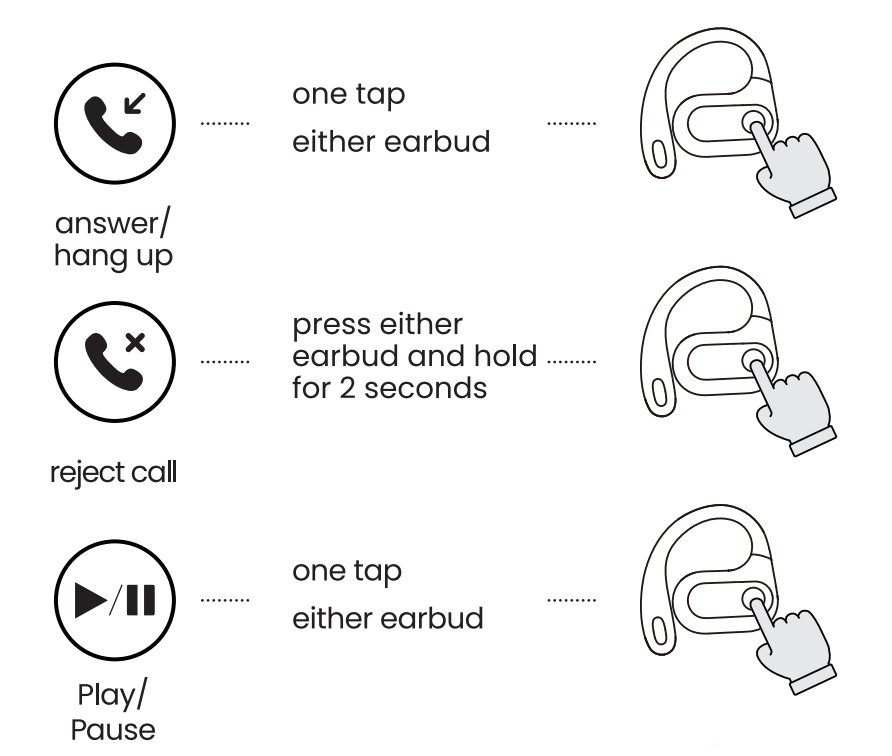

  • Answer an incoming call: Press the touch control area on any of the earbuds one time.
  • End a current call: Press the touch control area on any of the earbuds one time.
  • Reject an incoming call: Press and hold the touch control area on any of the earbuds for about 2 seconds.
  • Activate the voice assistant: Press and hold the touch control area on any of the earbuds for about 2 seconds.

To Android And iOS Devices – Dual Mode

To Android And iOS Devices

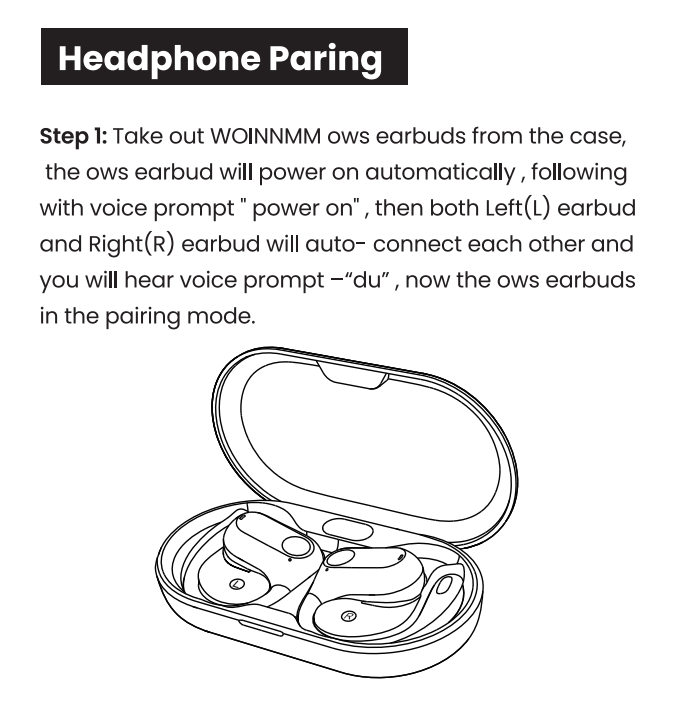

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

A “Du” voice prompt will sound, and the earbuds will now be ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

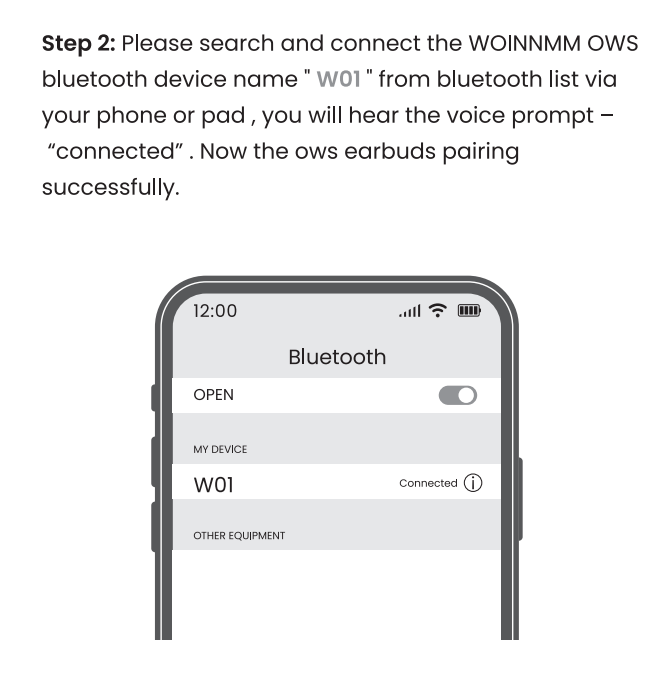

Step 5: Search for a new device.

Step 6: Select the W01 earbuds. If a password is needed, type “0000” or “1234”.

After that, the “Connected” voice prompt will sound, and the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

A “Du” voice prompt will sound, and the earbuds will now be ready to pair with any device.

Step 7: Select the W01 earbuds. If a password is needed, type “0000” or “1234”.

After that, the “Connected” voice prompt will sound, and the pairing will be done.

How To Pair The Earbuds? – Mono Mode

Mode 1

Step 1: Pair both earbuds with the device.

Step 2: When in dual mode, place one of the earbuds into the charging case. The other one will continue working by itself.

Mode 2

Step 1: Take only one of the earbuds out of the charging case. It will enter pairing mode.

Step 2: Search for a new device.

Step 3: Select the W01 earbud. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

WOINNMM-W01-Manual-5

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

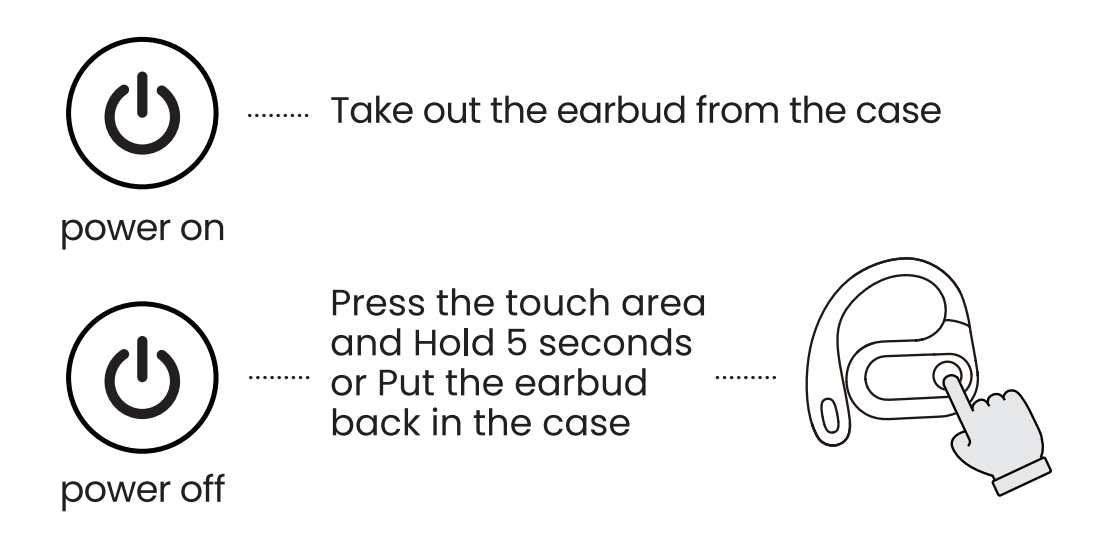

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Turn Off

Automatically: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Manually: Press and hold the touch control area on both earbuds for about 5 seconds. After that, the earbuds will turn off.

The Earbuds’ Voice Prompts

  • Power on: The earbuds turn on.
  • Du: The earbuds are now in pairing mode.
  • Connected: The earbuds are now connected.
  • Dudu: The earbuds have a low battery level.

Do These Earbuds Have An App?

Sadly, these earbuds don’t come with app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

WOINNMM-W01-Manual-7

FAQs

Are the WOINNMM W01 waterproof?

Yes, these earbuds are waterproof (IPX6 and up). They have a rating of IPX6, which means that they’re protected against water.

Do the WOINNMM W01 have a microphone?

Yes, the earbuds come with integrated microphones.

Do the WOINNMM W01 have a low latency/gaming mode?

No, these earbuds don’t have a low latency/gaming mode.

Can the WOINNMM W01 connect to PCs and laptops?

Yes, these earbuds can connect to PCs and laptops.

Are the WOINNMM W01 noise-canceling?

No, these earbuds don’t come with noise-cancellation technology.

We hope you now know how to operate the earbuds from the above WOINNMM W01 manual. Want to know anything about the earphones? Do not hesitate to ask in the comment section below.
