Xinwld A97 Pro Manual | Pairing & Charging Instructions

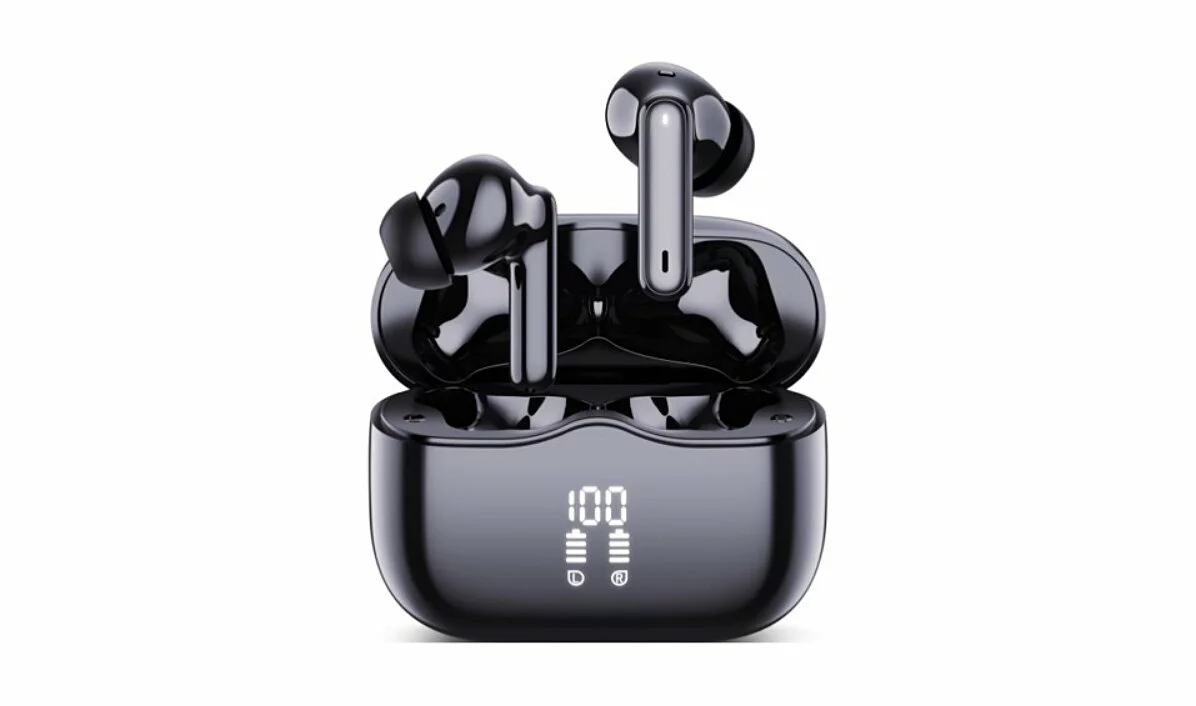

The Xinwld A97 Pro earbuds come with specs such as Bluetooth 5.3 with HFP/A2DP/HSP/AVRCP support, 8 hours of battery life + 30 hours using the charging case, the amazing IPX7 waterproof certification, one 10mm driver and built-in microphones in each earbud, 20Hz to 20kHz of frequency response, and much more. Learn how to use these earbuds using this Xinwld A97 Pro manual!

If you are interested in purchasing these earbuds, you can easily do it using the Amazon online store. Also, in case you are interested in giving the original manual a look, you can do it here.

Xinwld A97 Pro Specs Sheet

Model	Xinwld A97 Pro
Waterproof/IP ratings	IPX7
Bluetooth version	V5.3
Range/Distance	10 meters
Connectivity Port/Charging Cable	Type-C
Audio Decoding	SBC
Driver	10mm
Speaker frequency response	20Hz – 20kHz
Battery Life	Earbuds: Around 8 hours Charging case: Around 30 hours
Charging Time	Earbuds: Around 1.5 hours Charging case: Around 1.5 hours
App Support	No
Controls/Features	Play and pause a song, play the next and previous song, answer, end, and reject a call, activate the voice assistant, turn the volume up and down
Accessories	Charging case, USB cable, user manual, ear tips
Price	Around 60 USD

Xinwld A97 Pro Accessories

The earbuds come with the following accessories:

• Charging case.
• USB cable.
• User manual.
• Ear tips.

Xinwld A97 Pro Manual | Step-by-step, In-depth Guide

How To Wear These Earbuds?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How To Turn On And Off?

Turn On

Automatically: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

Manually: Press and hold the multifunction touch button on both earbuds for about 3 seconds. After that, the “Power on” voice prompt will sound, and the earbuds will turn on.

Turn Off

Automatically: Place the earbuds into the charging case. After that, the earbuds will turn off automatically.

Manually: Press the multifunction touch button on both earbuds five times. After that, the earbuds will turn off.

How To Pair The Earbuds? – Dual Mode

To Android And iOS Devices

Step 1: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

One earbud will flash a white light, while the other earbud will flash a white light every 3 seconds, indicating that the earbuds are paired with each other and are now ready to pair with any device.

Step 2: Unlock the desired device.

Step 3: Go to the device’s settings.

Step 4: Turn on Bluetooth on the desired device.

Step 5: Search for a new device.

Step 6: Select the A97 Pro earbuds. If a password is needed, type “0000” or “1234”.

After that, the flashing lights will turn off, the “Connected” voice prompt will sound, and the pairing will be done.

To Windows (PC)

Step 1: Turn on the Window’s Bluetooth.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Click on Bluetooth.

Step 6: Open the lid of the charging case and take the earbuds out. After that, the earbuds will turn on automatically.

One earbud will flash a white light, while the other earbud will flash a white light every 3 seconds, indicating that the earbuds are paired with each other and are now ready to pair with any device.

Step 7: Select the A97 Pro earbuds. If a password is needed, type “0000” or “1234”.

After that, the flashing lights will turn off, the “Connected” voice prompt will sound, and the pairing will be done.

How To Pair The Earbuds? – Mono Mode

Mode 1

Step 1: Pair both earbuds with the device.

Step 2: When in dual mode, place one of the earbuds into the charging case. The other one will continue working by itself.

Mode 2

Step 1: Take only one of the earbuds out of the charging case. It will enter pairing mode.

Step 2: Search for a new device.

Step 3: Select the A97 Pro earbud. If a password is needed, type “0000” or “1234”.

After that, the pairing will be done.

How To Control These Earbuds?

NOTE: The multifunction touch button is placed on the top part of the body of the earbuds.

• Play or pause a song: Press the multifunction touch button on any of the earbuds two times.
• Turn the volume up: Press the multifunction touch button on the right earbud one time.
• Turn the volume down: Press the multifunction touch button on the left earbud one time.
• Play the next song: While listening to music, press and hold the multifunction touch button on the right earbud for about 2 seconds.
• Play the previous song: While listening to music, press and hold the multifunction touch button on the left earbud for about 2 seconds.
• Answer an incoming call: Press the multifunction touch button on any of the earbuds one time.
• End a current call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
• Reject an incoming call: Press and hold the multifunction touch button on any of the earbuds for about 2 seconds.
• Activate the voice assistant: Press the multifunction touch button on any of the earbuds three times.

What Do The Lights Mean?

Earbuds

• A white light flashing in one of the earbuds while the other earbud will flash a white light every 3 seconds: The earbuds paired with each other and are now ready to pair with any device.
• Said lights turn off: The earbuds are connected.
• A light on while on the charging case: The earbuds are charging.
• Said light turns off while on the charging case: The earbuds are fully charged.

Charging Case

• 0 to 99 appears on the display while charging: The case is charging.
• A 100 appears on the display while charging: The case is fully charged.
• Flashing up and down design with the earbuds inside: The earbuds are charging.
• Said flashing lights turn off with the earbuds inside: The earbuds are fully charged.

How To Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is place them into the charging case and close its lid. The earbuds will start charging automatically.

Charging Case

To charge the charging case, all you have to do is connect the case to a USB charger or charging port. It will start charging automatically.

How To Reset These Earbuds?

Step 1: Place the earbuds into the case and close its lid.

Step 2: Delete the A97 Pro earbuds from the devices’ Bluetooth list.

Step 3: After 10 seconds, open the case and reconnect the earbuds with the device.

Do These Earbuds Have An App?

No! Sadly, these earbuds don’t come with app support.

Some Common Problems & Troubleshooting

Left/Right/One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range.

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left/Right/One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbuds, so try replacing them or getting a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> Select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

We hope you now know how to operate the earbuds from the above Xinwld A97 Pro manual. Want to know anything about the earphones? Do not hesitate to ask in the comment section below.
